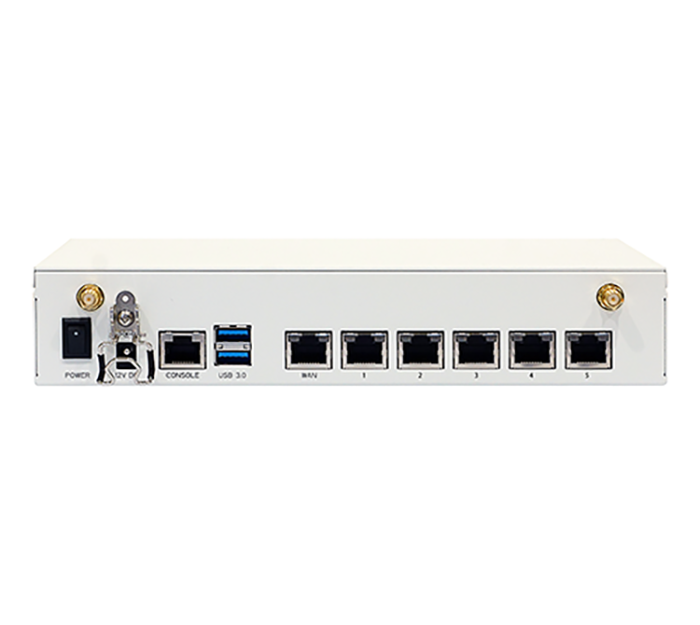

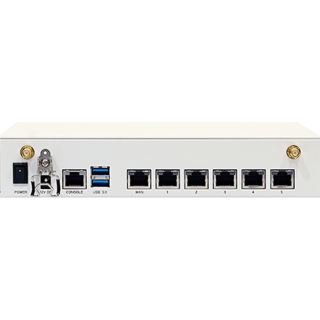

SCB-6997
Up to 6x 1GbE ports and two pairs of bypass function (optional 2.5GbE support)
Expansive I/O with USB 3.0; 2.5”/3.5” SATA HDD bay, mSATA socket, mini-card slot and Console port
Built with Intel Embedded IA components with warranty of longevity
RoHS/CE/FCC compliant
The SCB-6997 is a Desktop hardware platform designed for network service applications. Built with Intel® Embedded IA components with warranty of longevity, supports Intel® Celeron®/Pentium® Apollo Lake and Atom Apollo Lake-I low voltage processors. The platform supports up to 8GB with dual channel high bandwidth DDR3L SO-DIMM slot and on-board DDR3L memory. To provide the best network performance and best utilization, the powerful storage interfaces include one 2.5”/3.5” SATA HDD and eMMC. SCB-6997 affords up to 6x ports with 2 pairs of Bypass as well as both 1Gbps and 2.5Gbps options. It also has two USB 3.0 ports and one RJ-45 console port. The front panel has LED indicators that monitor power and storage device activities for local system management, maintenance, and diagnostics. In addition, the SCB-6988 supports one mini-card socket for expansion purpose. The networking system is RoHS, FCC, and CE compliant.
1x PCIe x4 connector via 2 xPCIe x1. (build Option)
2x internal USB 2.0 with pin header
1x internal 5x2 pin header (COM2)
1 x HDD LED (Yellow)
1 x Bypass LED (Green)
5 pairs LEDs for 5 Ethernet ports Active/Link
status (Green)
(9.1”W x 6” D x 1.7” H)
non-condensing
