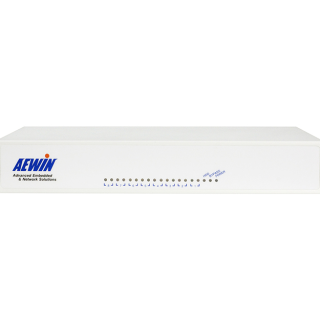

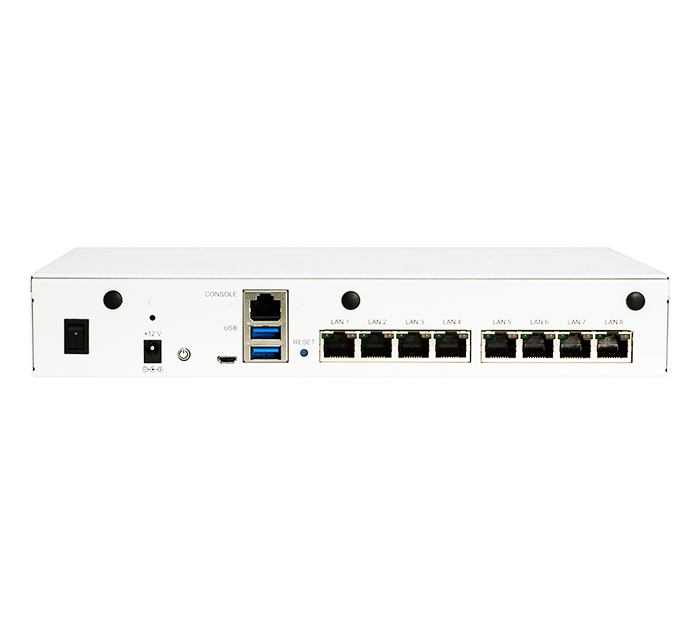

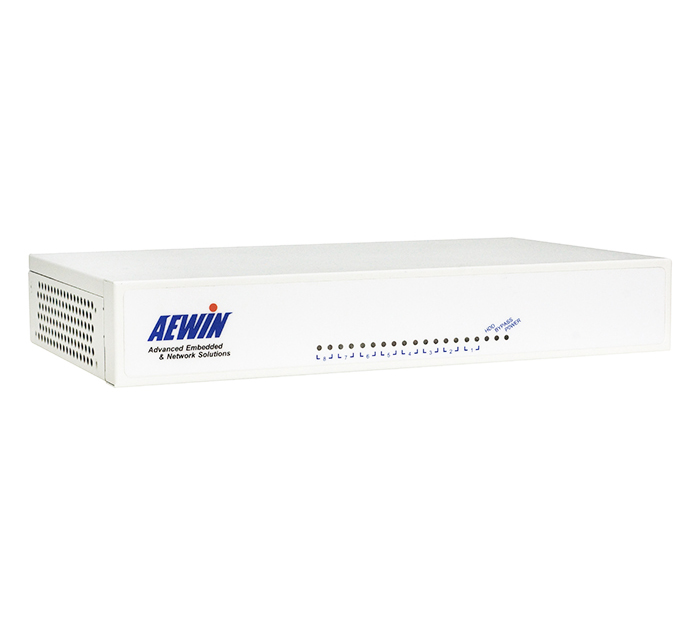

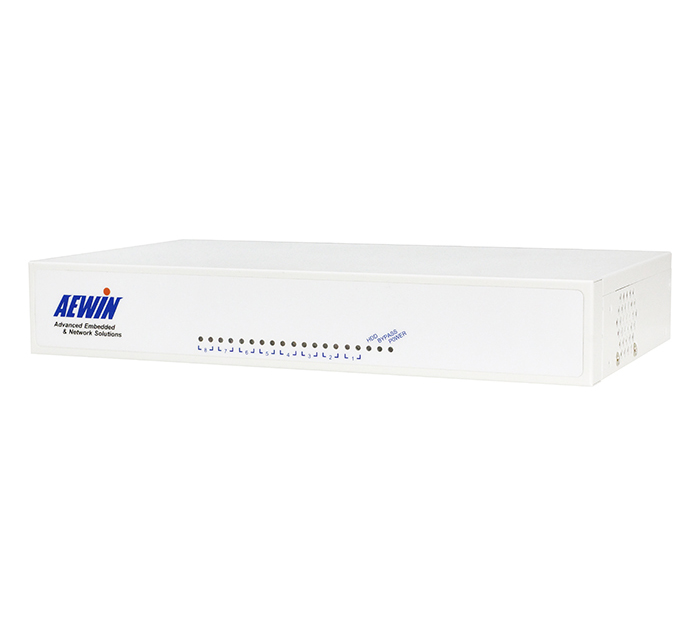

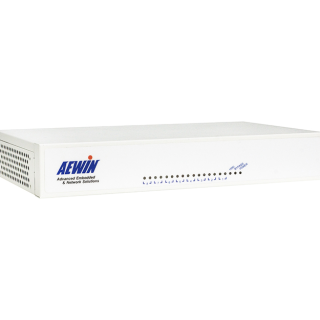

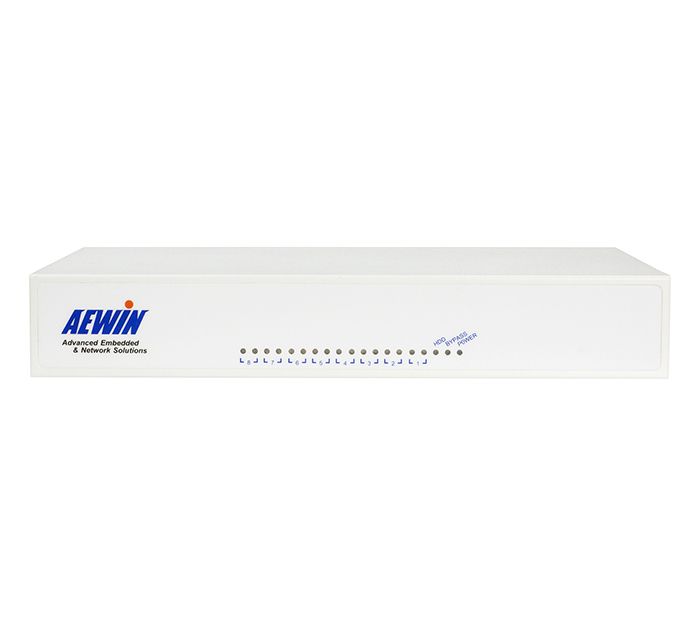

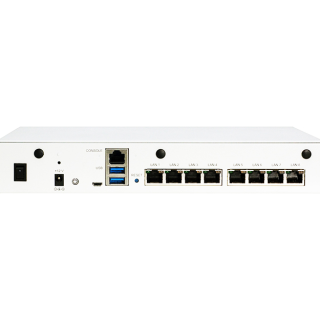

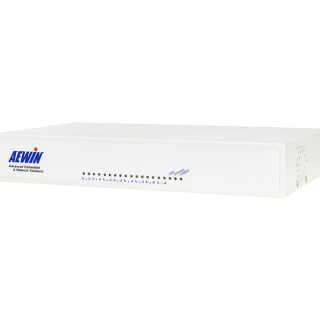

SCB-6989
DDR4 ECC 1866/2133 MHz memory, max support 32GB
Max 8 GbE ports support
Expansive I/O with USB 3.0,2.5” SATA HDD, mSATA socket and Console port
2 pairs Bypass
Mini-PCIe x3 (for VGA, for Wifi, for mSATA)
Intel® Quick Assist for Cryptographic Hardware Acceleration
The SCB-6989 is Desktop high-performance networking system which is based on Intel® Denverton-NS ™ Processor. This new generation platform provides highly CPU computing power that CPU cores up to 16 cores, supporting total with 20 PCIe lanes for flexible both network interface modules expansion . The SCB-6989 is enhancement in computing performance, system responsiveness with Intel® Denverton-NS™ Processor, supporting four DDR4 ECC SODIMM (up to 2133 MHz) and maximum memory capacity is up to 32GB. SCB-6989 is able to support miniPCIe x3, (mini-PCIe to VGA / miniPCIe for Wifi / miniPCIe for mSATA) , 1 x RJ45 Console port. 2x USB 3.0, and LEDs for Power/HDD/Bypass LEDs / LAN active & Link status, and 2 pairs Bypass LAN port function. SCB-6989 supports 1 x mSATA Slot ; 1 x 2.5" SATA HDD for basic network storage application.
1x mini-PCIe socket (half-size) for VGA module
LAN5~8: Marvell 88E1543 via SGMII
2x internal USB 2.0 with pin header
1x internal pin header (COM2)
1x HDD LED (Red)
1x Bypass LED (Yellow)
8 pairs LEDs for 8x Ethernet ports Active/Link
status (Green)
non-condensing
