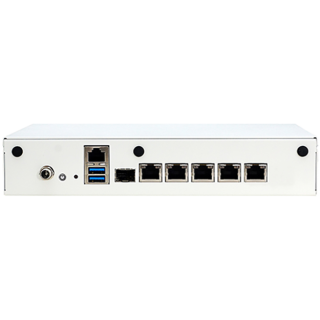

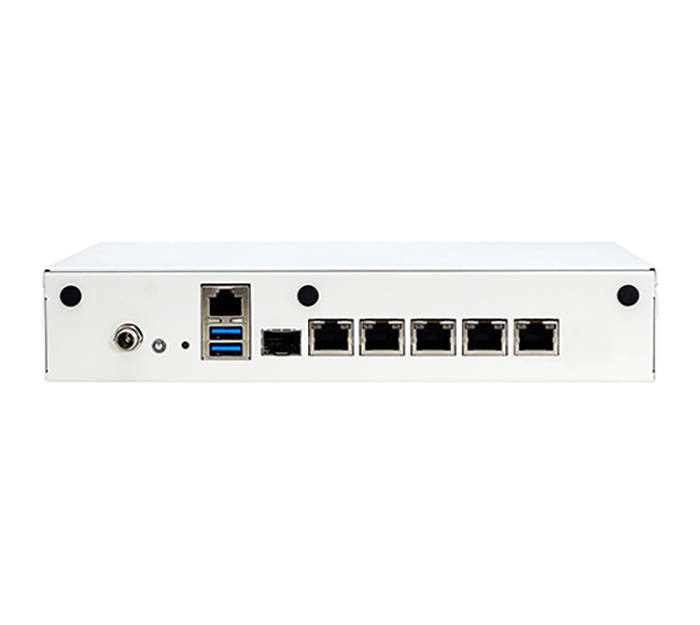

SCB-6915
1x DDR4 SO-DIMM memory, up to 3200 MHz
6x 1GbE RJ45 ports (1x optional 2.5GbE port and 1x 1GbE SFP port)
1x M.2 B-Key or M-Key or E-Key
1x 2.5" SATA, 1x mSATA, 1x eMMC 5.1
SCB-6915, powered by Intel Alder Lake-N or Amston Lake-C processor featuring upgraded computing performance with low power consumption. SCB-6915 supports DDR4 memory with up to 16GB, 3200MHz and is designed with ultra-compact size & improved energy efficiency for entry-level networking solutions.
SCB-6915 features 6x 1GbE ports with 1 pair of Gen3 Bypass (1x optional 2.5GbE port and 1x 1GbE SFP port), 1x M.2 slot for multiple options including 4G/5G module, Wi-Fi module, or NVMe storage device. It is flexible for various kinds of connectivity or functions per customer request. In addition, SCB-6915 offers 2x USB 3.0, and multiple storage options (1x eMMC, 1x SATA3 2.5” SATA SSD/HDD, and 1x mSATA).
Regarding security support, it has Intel AES-NI for crypto acceleration and TPM for protected data/keys/identity. It is also with many hardware-based secure technologies for system reliability including Intel TEE (Trusted Execution Environment) for sensitive data protection, and Intel OS Guard plus Intel Boot Guard for platform integrity.
SCB-6915 is not only suitable for edge deployment, but also ideal for silence environments uses with its optional fanless design. Featuring rich I/O and reliable hardware security in a small box. SCB-6915 is perfect for diverse applications such as uCPE, firewall, cybersecurity, and more.
non-condensing
