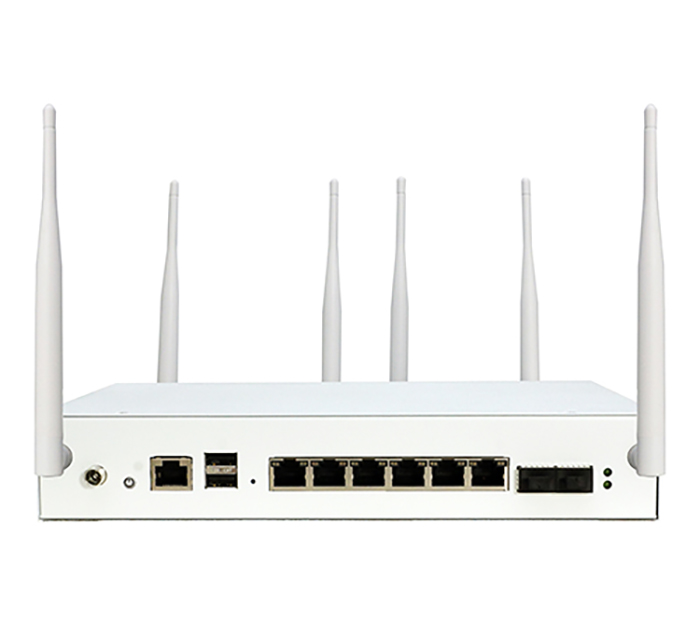

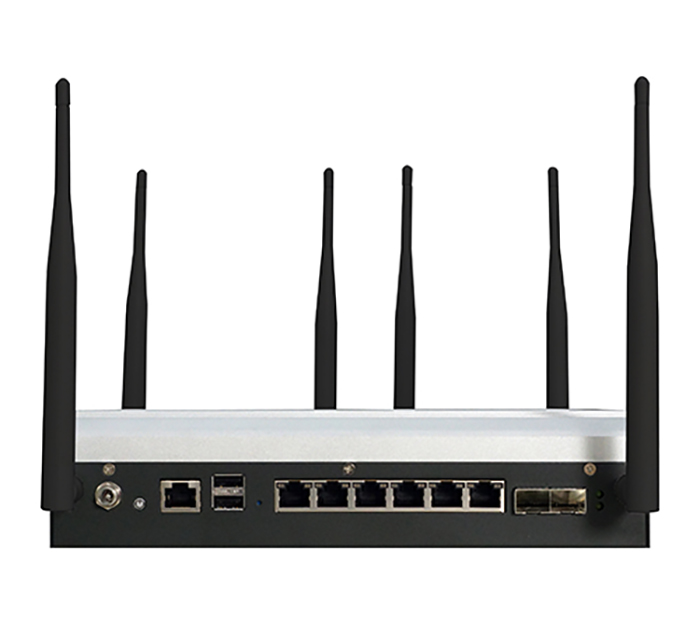

SCB-6990
2x DDR4 SO-DIMM up to 32GB
Intel QAT
6x RJ45 GbE, 2x SFP
2x M.2 B key for LTE/5G module with 4x SIM cards, and mPCIe for WiFi module
on-board TPM (optional)
8GB eMMC up to 64GB (optional)
Intel® Atom C3000 (Denverton-NS) fanless system for SD-WAN Network Appliance, SCB-6990 features a rugged fanless design suitable for industrial and unprepared locations, with specialized SKUs supporting wide-temperature deployments with processors up to 25w TDP. A multitude of connectivity options are supported; in addition to the standard 6x 1GbE RJ45 and 2x 1GbE SFP connectors, there are 1x slot for WIFI modules and 2x slots for cellular modules that can support the new WIFI6 standard and 4x 5G SIMs to offer maximum redundancy to your business network. AEWIN software engineers optimized the DPDK toolkit for the SCB-6990 to offer line-rate performance for 64B frame size in DPDK L3fwd testing. It offers packet forwarding performance suitable for network links with additional bandwith from multiple commodity network connections.
6x antenna
non-condensing
SCB-6999
Desktop system with intel ATOM C3000 processor, 2x DDR4 SO-DIMM slots, 4x 2.5Gb ports, 2x 10G SFP+ port, M.2 & mCPIe slots for 4G/5G/WIFI expansion
SCB-6995
Desktop system with Intel Atom C3000 series CPU with 2x DDR4 (with ECC) 2400MHz SO-DIMM, 2x USB3.0, 1x SATA III, 1 x M.2, 1x mSATA, eMMC (optional), 1x mPCIe, TPM 2.0 (optional), 6 x RJ45 GbE and 2x 10GbE SFP+ port
SCB-6915
Desktop Network System with Intel Alder Lake-N or Amston Lake-C processor, 1 x DDR4 SO-DIMM, 6x 1G RJ45 ports (optional 1x 2.5GbE port or 1x 1GbE SFP port), 1 x DDR4 SO-DIMM, 1x 2.5”, 1 x mSATA, 1x eMMC, 2 x USB 3.0, 1x M.2
SCB-6913
Fanless Intel Atom (Elkhart lake) x6425E 4 Core SOC, 12W, 1x DDR4 SODIMM, 6x RJ45, 1x Console + USB2.0 , 2xM.2 for 4G/5G LTE, 1x M.2 for WIFI 6, 1x eMMC 16GB , 4x Micro SIM Slot, 1x HDMI
SCB-6997
Desktop Network Appliances, Intel® Celereon®/pentium®/Atom® (Apollo Lake) Network System, Six Copper GbE, eMMC, mSATA, SATA, mini-PCIe, Gen3 Bypass
SCB-6989
Desktop Network Appliances, Intel® Atom C3000 (Denverton-NS) Processor Network System, 8x Copper GbE, DDR4, mSATA, eMMC, mini-PCIe, PCIe, Bypass
SCB-6988
Desktop Network Appliances, Intel® Celereon®/pentium®/Atom® (Apollo Lake) Network System, Six Copper GbE, eMMC, mSATA, SATA, mini-PCIe, Gen3 Bypass
SCB-6914
Fanless Desktop Network appliance with Intel Pentium/Celeron/Atom Processor (Apollo Lake) Processors,4x 1GbE ports,1x 1GbE SFP, DDR3L SO-DIMM memory, up to 1600 MHz, 32GB eMMC, 2x USB 3.0, mini-PCIe for WiFi / LTE, 1x SIM
