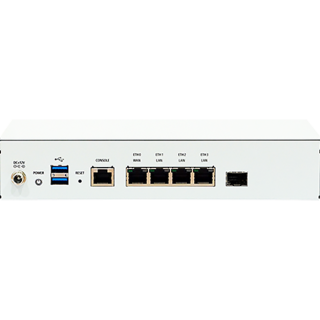

SCB-6914
1x DDR3L SO-DIMM memory, up to 1600 MHz
4x 1GbE RJ45 ports (optional 2.5GbE support), 1x 1GbE SFP port
2.5” SATA, 1x mSATA, 1x mPCIe, 1x eMMC
The SCB-6914 is a fanless desktop hardware platform designed for network service applications which is a noiseless system ideal for silence environments use. Built with Intel® Embedded IA components with warranty of longevity, supports Single Intel® Pentium®/Celeron®/Atom® (Apollo Lake) Processors. The SCB-6914 supports one DDR3L memory socket.

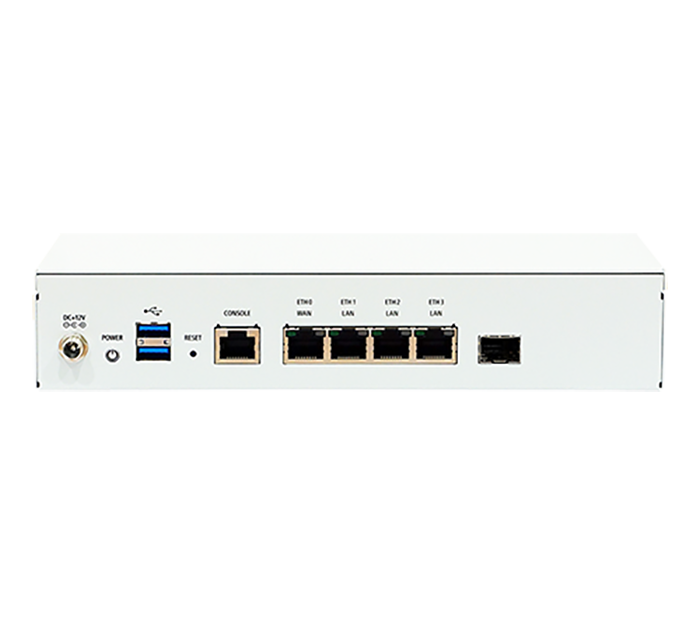

In order to provide the best network performance and best utilization, the storage interfaces include eMMC / SATA 3 HDD/SSD, and it affords 4x 1GbE RJ45 ports (optional 2.5GbE support), 1x 1GbE SFP port. The rear panel also has 2x USB 3.0 ports, 1x RJ-45 console port. The front panel has LED indicators that monitor power and storage device activities for local system management, maintenance and diagnostics. In addition, the SCB-6914 supports one mini-card socket for expansion purpose. The networking system is RoHS, FCC and CE compliant.
1x SFP
1xStatus (Green/Red)
1x Power LED (Green)
1x HDD LED (Blue)
5x pairs LEDs for Ethernet ports speed and Active/Link
(9.1”W x 4.5” D x 1.7” H)
non-condensing
