SCB-6988
Max 5 GbE ports via PCI-e x1
Expansive I/O with USB 3.0; 2.5”/3.5” SATA HDD bay, mSATA socket, mini-card slot and Console port
Built with Intel Embedded IA components with warranty of longevity
RoHS/CE/FCC compliant

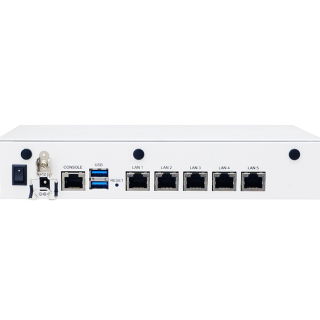

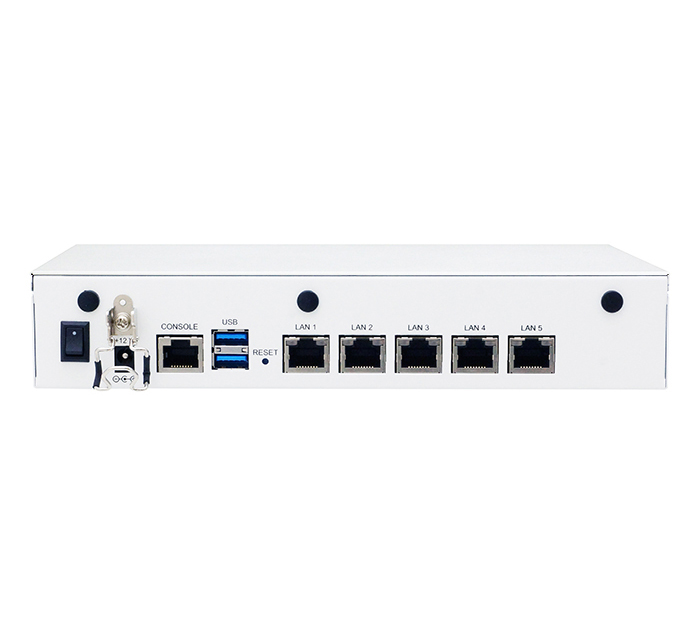

The SCB-6988 is a Desktop hardware platform designed for network service applications. Built with Intel® Embedded IA components with warranty of longevity, supports Intel® Celeron®/Pentium® Apollo Lake and AtomTM Apollo Lake-I low voltage processors. The platform supports up to 8GB with dual channel high bandwidth DDR3L SO-DIMM slot and on-board DDR3L memory. In order to provide the best network performance and best utilization, the powerful storage interfaces include one 2.5”/3.5” SATA HDD and eMMC. SCB-6988 affords five GbE Copper with two pairs of Gen3 bypass function on rear-panel. The rear panel also has two USB 3.0 ports, one RJ-45 console port. The front panel has LED indicators that monitor power and storage device activities for local system management, maintenance and diagnostics. In addition, the SCB-6988 supports one mini-card socket for expansion purpose. The networking system is RoHS, FCC and CE compliant.
1x PCIe x4 connector via 2 xPCIe x1. (build Option)
(1x pair of Gen3 bypass between LAN3 and LAN4)
2x internal USB 2.0 with pin header
1x internal 5x2 pin header (COM2)

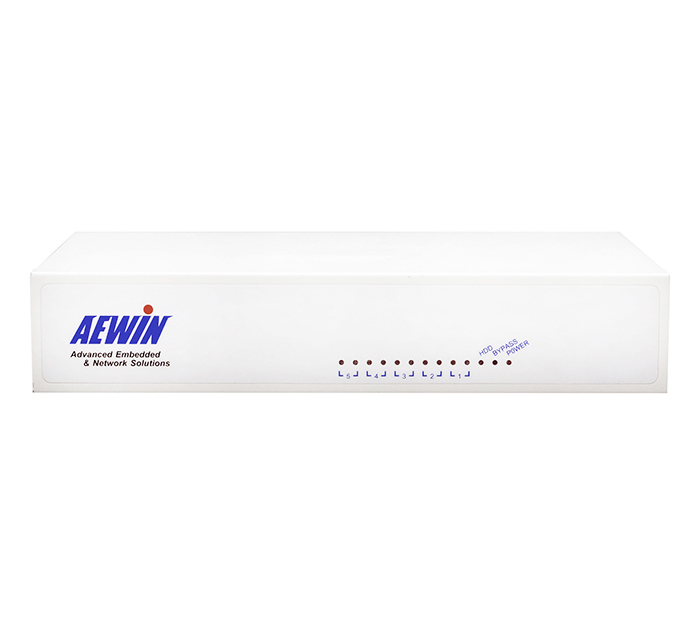

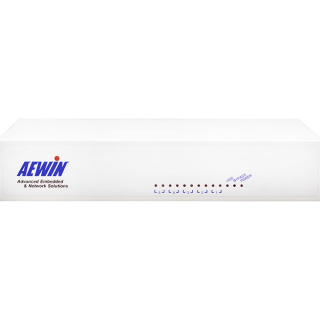

1 x HDD LED (Yellow)
1 x Bypass LED (Green)
5 pairs LEDs for 5 Ethernet ports Active/Link
status (Green)
(9.1”W x 6” D x 1.7” H)
non-condensing
