Expansion Slots
Form Factor

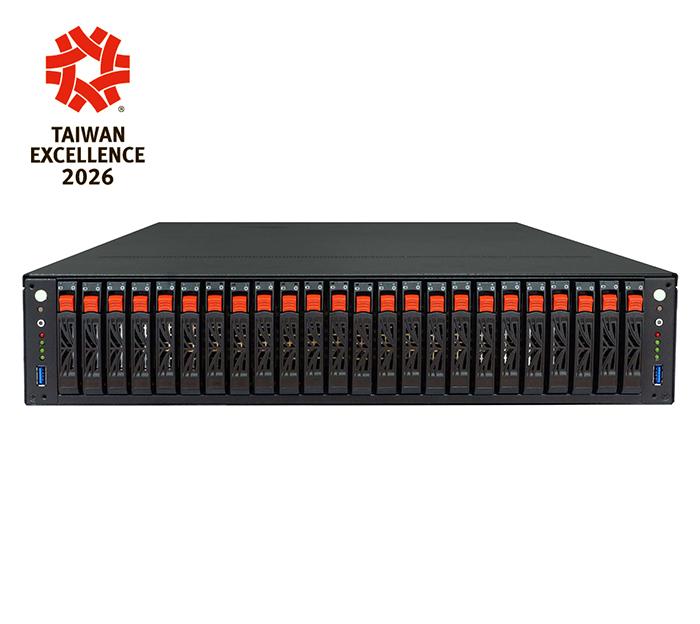

MIS-5131A-2U2
MIS-5131-2U2 is a 2U 2-Node HA server with single Intel Xeon6 processor (Granite Rapids-SP) per node, 8x DDR5 RDIMMs per node, 3x PCIe Gen5 x16 slots per node, and total 24x 2.5" pluggable NVME SSDs.
BIS-5231-2U
BIS-5231-2U is a 2U General Purpose Server with Dual Intel Xeon 6 Scalable Processors (Granite Rapids-SP/Sierra Forest), 16x DDR5 6400MHz RDIMM, 8x PCIe Gen5 slots, 1x OCP 3.0 PCIe Gen5 slot, 12x hot-swapable SAS/SATA/NVMe, 1x 1GbE IPMI, RJ45, 4x 10G RJ45, 2x USB 3.1, 1x Console, 1x VGA, 2x M.2
BIS-5132-2U
BIS-5132-2U is a 2U General Purpose Server with single Intel Xeon 6 Scalable Processor (Granite Rapids-SP/Sierra Forest-SP), 8x DDR5 6400MHz RDIMM, 8x PCIe slots, 12x hot-swapable HDDs/SSDs, 2x 2.5” hot-swappable NVMe SSDs, 1x 1GbE MGMT RJ45, 2x 10GbE RJ45, 1x USB 3.1, 1x Console, 2x M.2
BAS-6101B
BAS-6101B is a 2U Storage Server with single AMD Bergamo/Genoa processor, 24x DDR5 slots, 8x PCIe slots & 1x OCP3.0 slot for different add-on cards and 12x 3.5" Hot-pluggable HDDs, 2x 2.5" Hot-pluggable SSDs

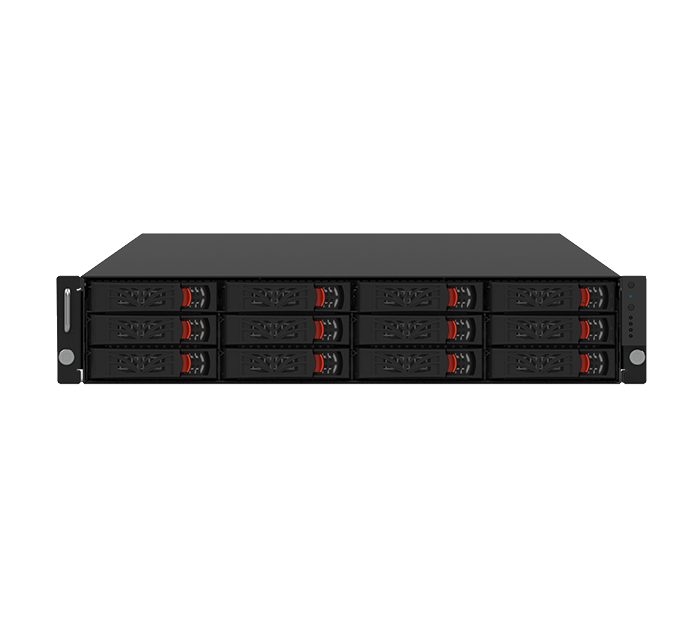

BIS-5121-2U
2U Rackmount Single 3rd Gen Intel® Xeon® Scalable Processor (Ice Lake-SP/ Whitley platform) Storage Server, supporting 8x DDR4 (up to 3200MHz), 12x 3.5” Hot-Swap HDD, 3x PCIe Gen4 slots, 2x 2.5” SSD (optional), 1x 1GbE IPMI, 2x USB 3.0/2.0, 2x 10GbE, 1x VGA, 1x M.2 (optional)

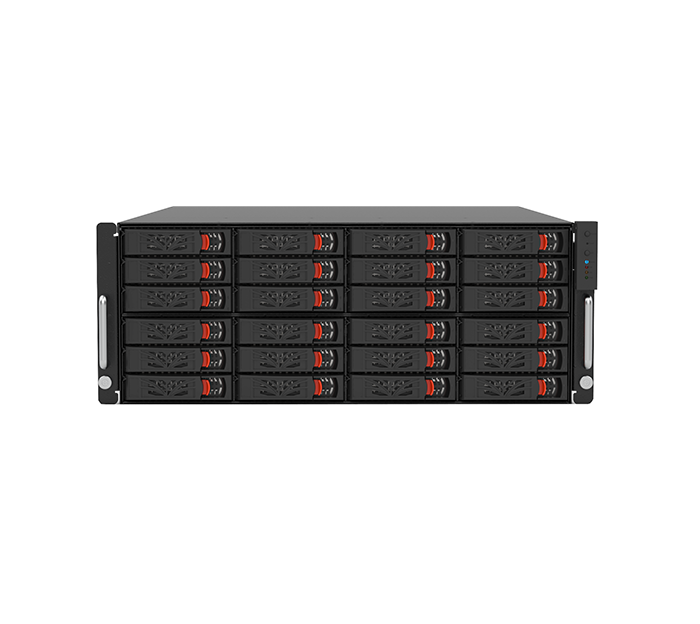

BIS-5222-4U
4U Rackmount Dual 3rd Gen Intel® Xeon® Scalable Processor (Ice Lake-SP/ Whitley platform) Storage Server, supporting 16x DDR4 (up to 3200MHz), 24x 3.5” Hot-Swap HDD, 5x PCIe Gen4 slots, 2x 2.5” SSD (optional), 1x 1GbE IPMI, 2x USB 3.0/2.0, 2x 10GbE, 1x VGA, 1x M.2 (optional)

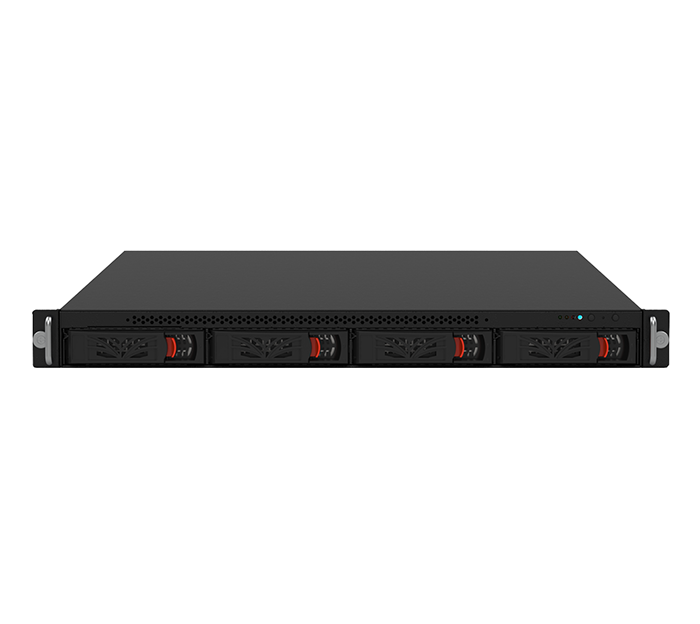

BIS-5121-1U
1U Rackmount Single 3rd Gen Intel® Xeon® Scalable Processor (Ice Lake-SP/ Whitley platform) Storage Server, supporting 8x DDR4 (up to 3200MHz), 4x 3.5” Hot-Swap HDD, 2x PCIe Gen4 slots, 2x 2.5” SSD (optional), 1x 1GbE IPMI, 2x USB 3.0/2.0, 2x 10GbE, 1x VGA, 1x M.2 (optional)
BIS-5222-2U
2U Rackmount Dual 3rd Gen Intel® Xeon® Scalable Processor (Ice Lake-SP/ Whitley platform) Storage Server, supporting 16x DDR4 (up to 3200MHz), 12x 3.5” Hot-Swap HDD, 5x PCIe Gen4 slots, 2x 2.5” SSD (optional), 1x 1GbE IPMI, 2x USB 3.0/2.0, 2x 10GbE, 1x VGA, 1x M.2 (optional)

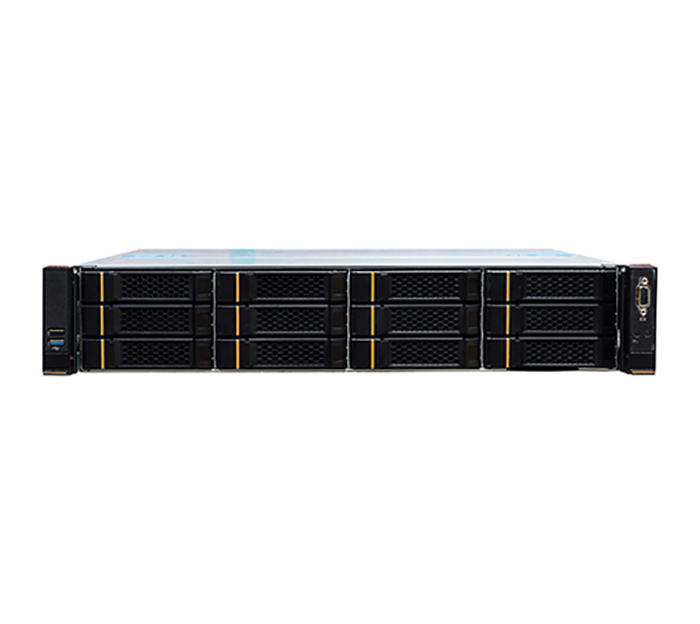

BIS-5221
2U Rackmount Dual 3rd Gen Intel® Xeon® Processor Scalable Processors (Ice Lake-SP / Whitley platform) and Intel® C621A/C627A PCH Hybrid Storage Server, support 32x DDR4(up to 3200MHz) per system, supporting 2x OCP 3.0 Network Cards, 12x bays 3.5” Hot-Swap SAS/SATA HDD, IPMI, USB 3.0/2.0, 2x 1GbE, 1 Console, 2x M.2, Redundant PSU.
