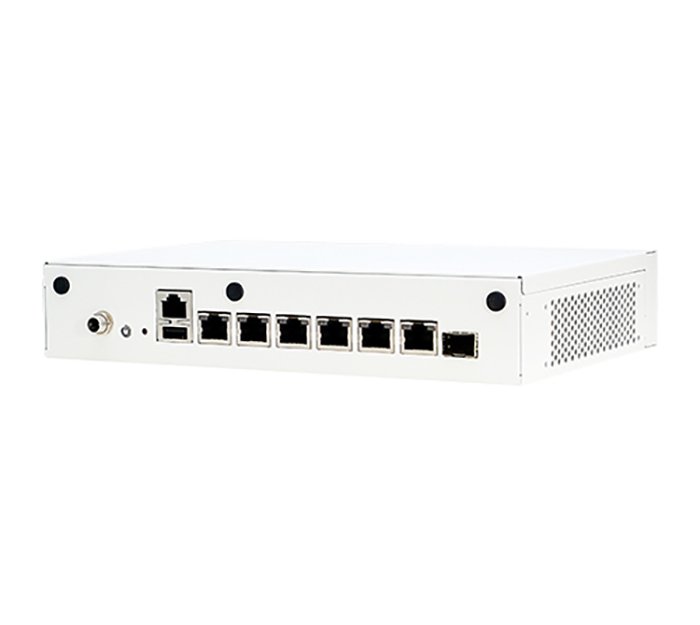

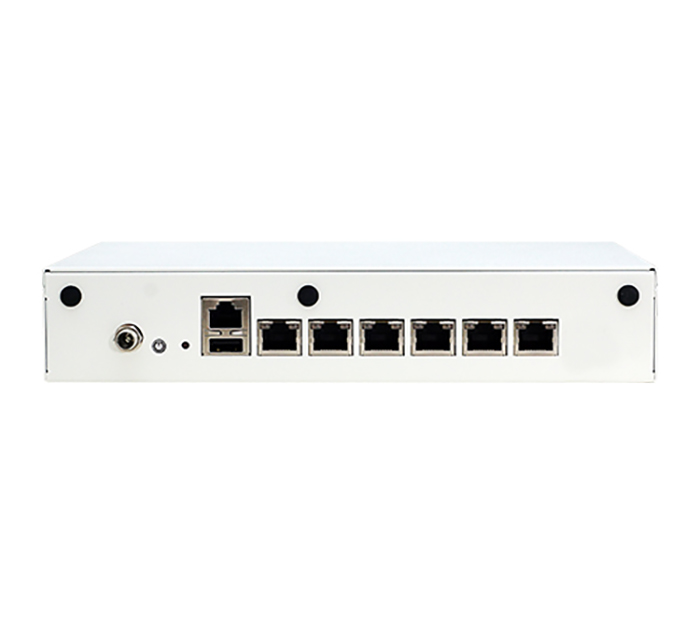

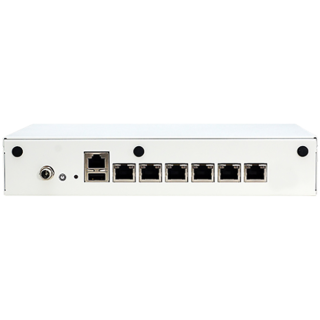

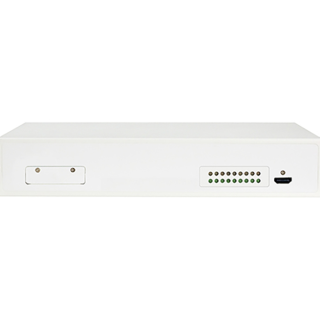

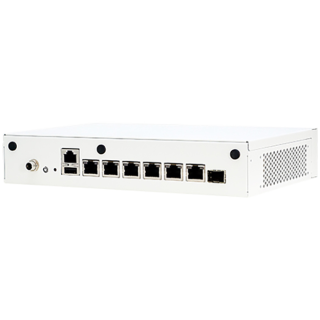

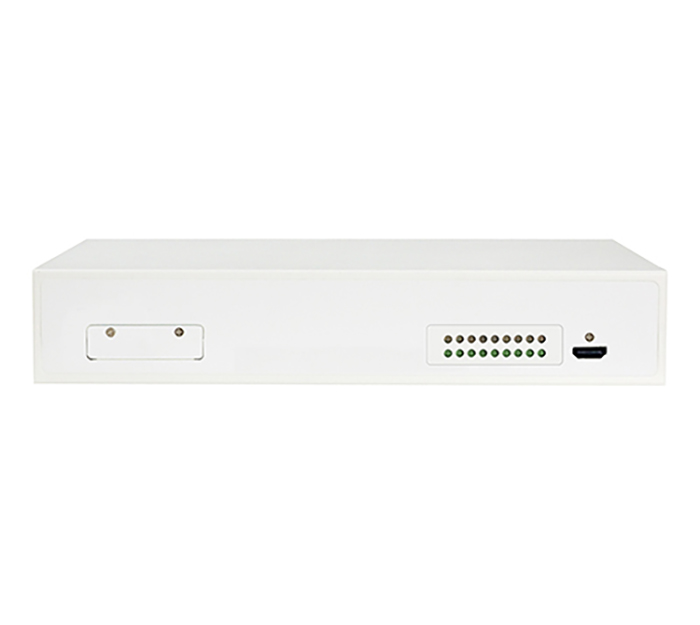

SCB-6913
6x 1GbE RJ45 ports
2x M.2 2280/2242/3042/3052 for 4G/5G LTE
1x M.2 for WIFI 6
Building 1x 16GB eMMC
AEWIN SCB-6913 balances energy efficiency and computational power enabled by the latest Intel Atom Processors featuring the diminitive and power efficient Elkhart Lake cores.
This fanless and wide-temp capable system is ideal for deployment in any location to handle a variety of network appliance applications, such as UTM, firewall, uCPE, SD-WAN and more. It offers 6x 1GbE RJ45 ports plus 2x M.2 slots for 4G/5G modems to maximize connectivity. 1x optional mSATA and 1x SATA port. The SCB-6913 can be a great companion for SMBs to safeguard their network from the ever increasingly hostile open internet.
- 1x M.2 B-Key for LTE/5G/storage (2242/2280) or 1x mSATA (optional)
- 1x M.2 E-Key for WIFI 6 or 1x half-size mPCIe (optional)
non-condensing
