SCB-6909
Ideal Noiseless System for Silence environments Use
Intel Celeron N3350 and Atom x5-E3930 (Apllo Lake)
DDR3L 1866MHz memory, max support 2GB Max 4 RJ45 GbE ports
eMMC flash, support up to 64GB (default 8GB)
Expansive I/O with two USB 2.0, one mini-PCIe socket and one Console port

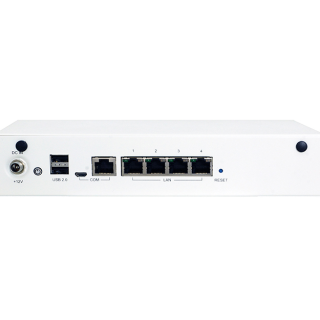

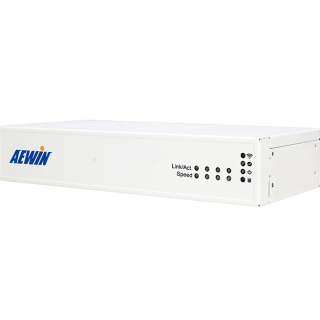

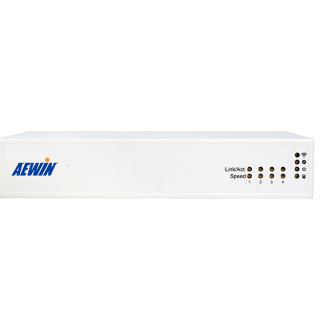

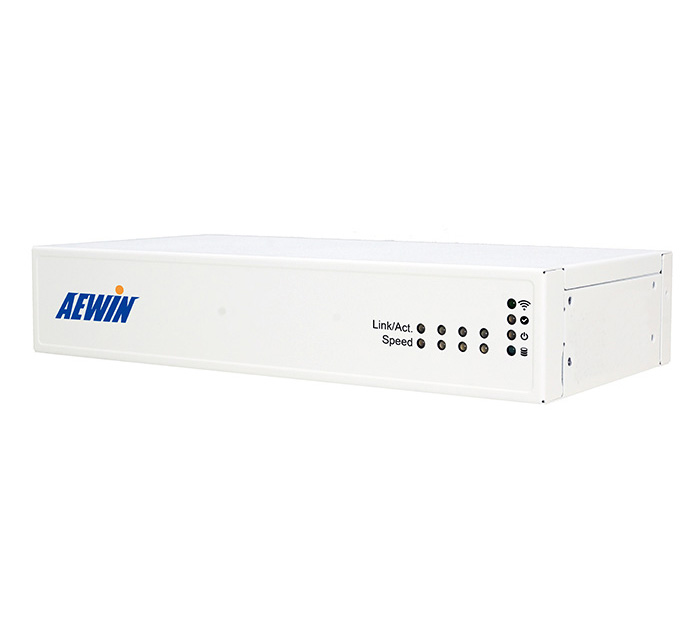

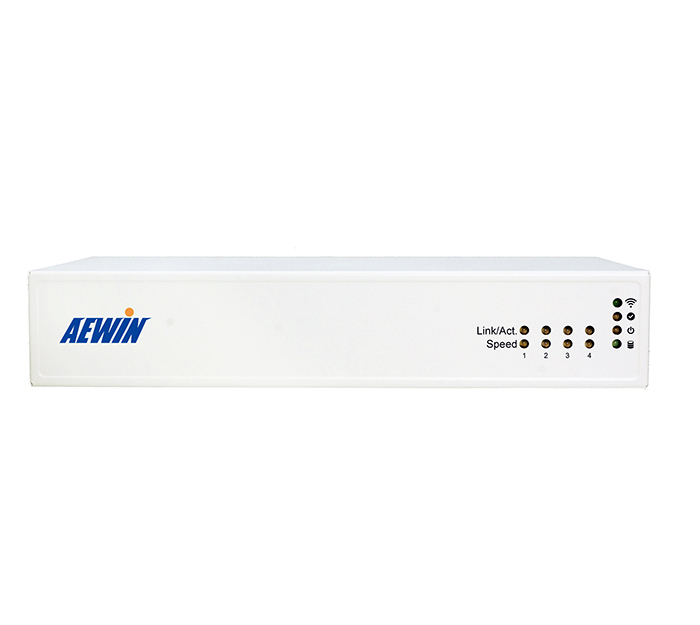

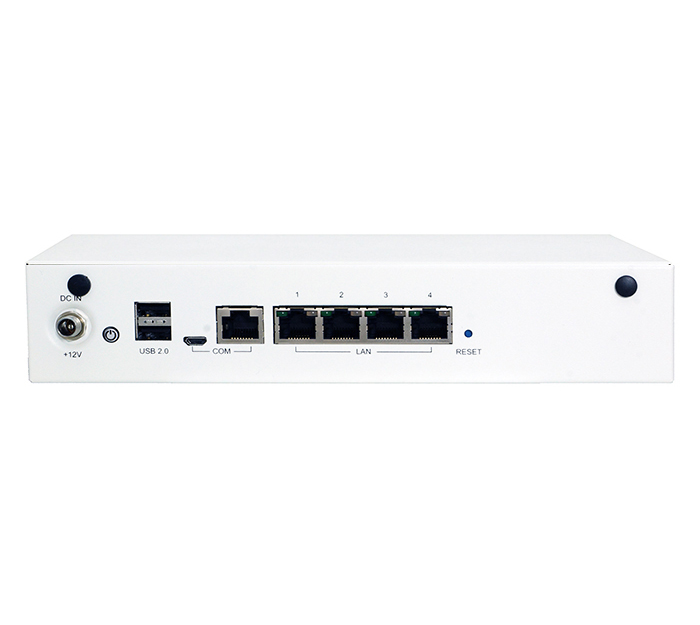

The SCB-6909 is a fanless desktop hardware platform designed for network service applications which is a noiseless system ideal for silence environments use. Built with Intel® Embedded IA components with warranty of longevity, supports Intel®® AtomTM /Celeron® Apollo Lake-I low voltage processors. The SCB-6909 supports 2GB on-board DDR3L memory. In order to provide the best network performance and best utilization, the storage interfaces include eMMC, and it affords four Copper GbE on rear-panel. The rear panel also has two USB 2.0 ports, one RJ-45 console port or micro USB console port . The front panel has LED indicators that monitor power and storage device activities for local system management, maintenance and diagnostics. In addition, the SCB-6909 supports one mini-card socket for expansion purpose. The networking system is RoHS, FCC and CE compliant.
1x micro-USB Console port (USB)
Status/bypass (Green/Red)
One Power LED (Green/Red)
One HDD LED (Blue)
4x pairs LEDs for 4x Ethernet ports speed and Active/Link
(9.1”W x 4.5” D x 1.7” H)
non-condensing
