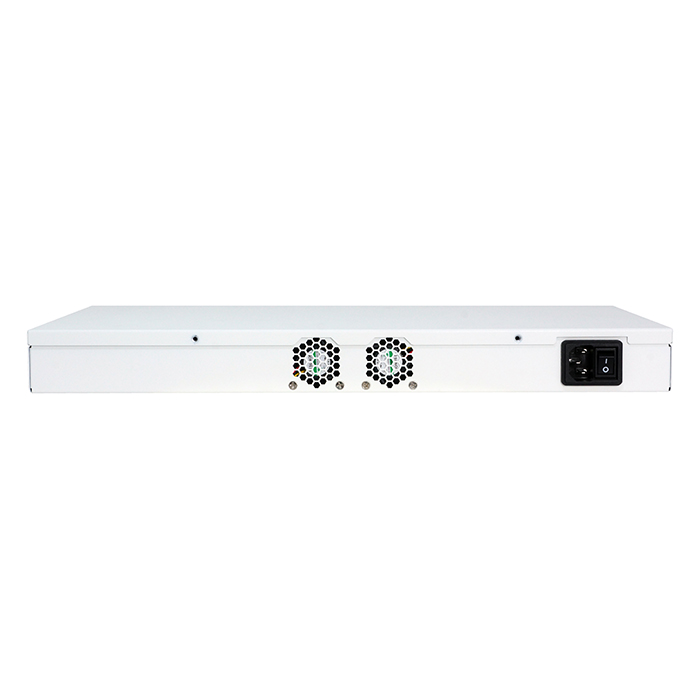

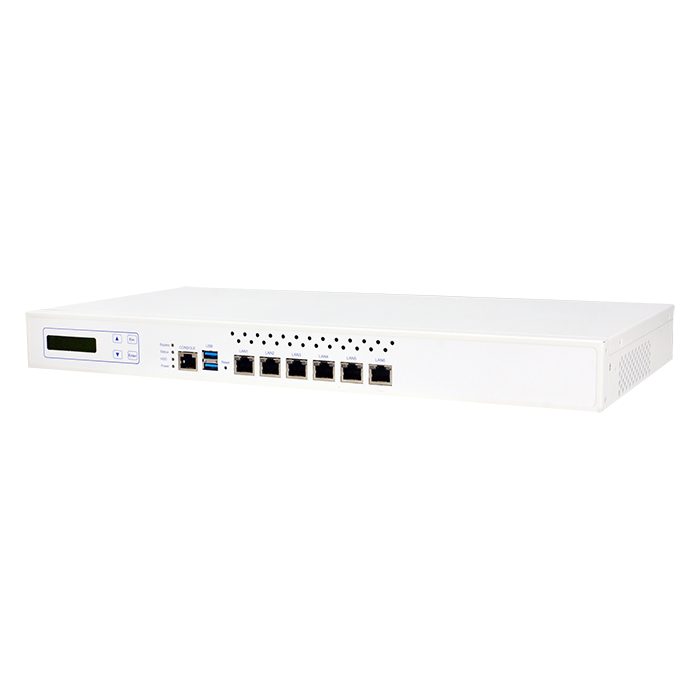

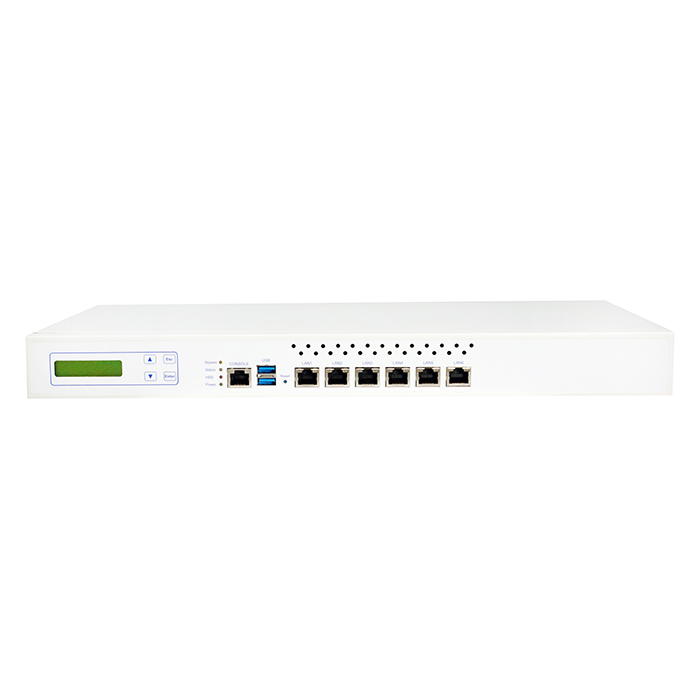

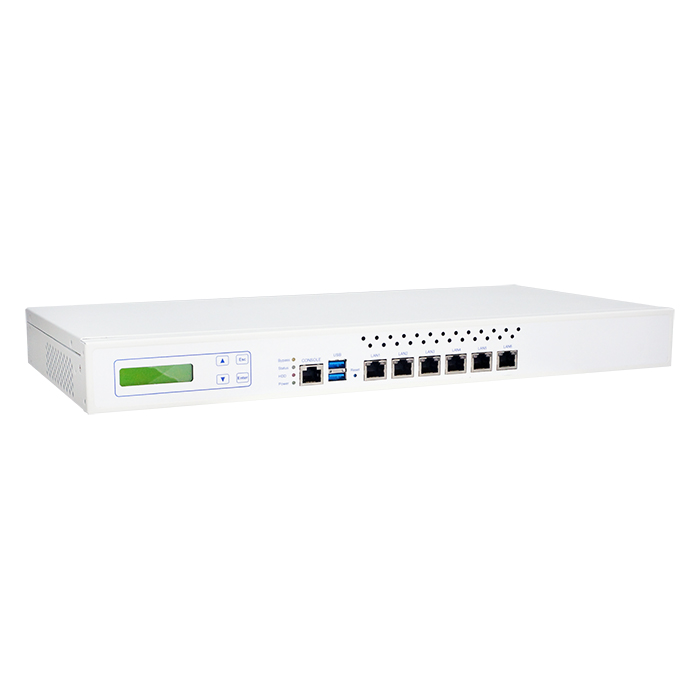

SCB-7906
Max 6 GbE ports via PCI-e x1
Expansive I/O with USB 3.0; 2.5”/3.5” SATA HDD bay, mSATA socket, mini-card slot and Console port
Built with Intel Embedded IA components with warranty of longevity
RoHS/CE/FCC compliant
-
Cloud -
Edge AI
The SCB-7906 is a 1U Rack-mount hardware platform designed for network service applications. Built with Intel® Embedded IA componentswith warranty of longevity, the SCB-7906 supports Intel® AtomTM Apollo Lake-I low voltag e processors. The platform supports dual channel high bandwidth DDR3L SO-DIMM slot and on board DDR3L memory, system memory up to 8GB. In order to provide the best network performance and best utilization, the power storage interfaces include one 2.5” or one 3.5” SATA HDD and eMMC, dual USB 3.0 ports, one RJ45 console port and LED indicators that monitor power and storage device activities for local system management, maintenance, diagnostics as well as advanced Gen. 3 LAN Bypass. In addition, the SCB-7906 supports one PCI-E connector for expansion purpose. The system is RoHS, FCC and CE compliant.
1x PCIe x4 connector via 2 xPCIe x1. (build Option)
(2 pairs bypass between LAN3, LAN4 and LAN5, LAN6)
2x internal USB 2.0 with pin header
1x internal 5x2 pin header (COM2)
1x HDD LED (Red)
1x Bypass LED (Yellow)
1x Status LED(Green/Yellew)
(17.32"W x 8.58" D x 1.88" H)
non-condensing
