Mainstream Network System

SCB-1750

Features

Supporting Intel® Core™ Processors (12th–14th Gen & BTL-S), LGA1700
4x DDR5 UDIMM memory up to 5600MHz, max. 128GB
2x RJ45 1GbE or 2x 1GbE SFP, 8x 1GbE RJ45, 2x Expansion Module bays
4x SATA, 1x mSATA, 1x NVMe M.2
Support TPM features

Add to Compare Add to Inquiry

Download

Description
Specification
Related Products

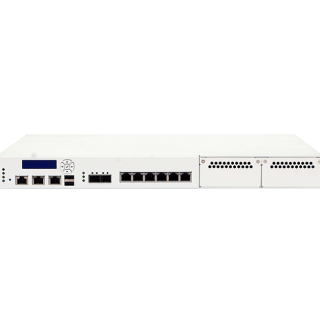

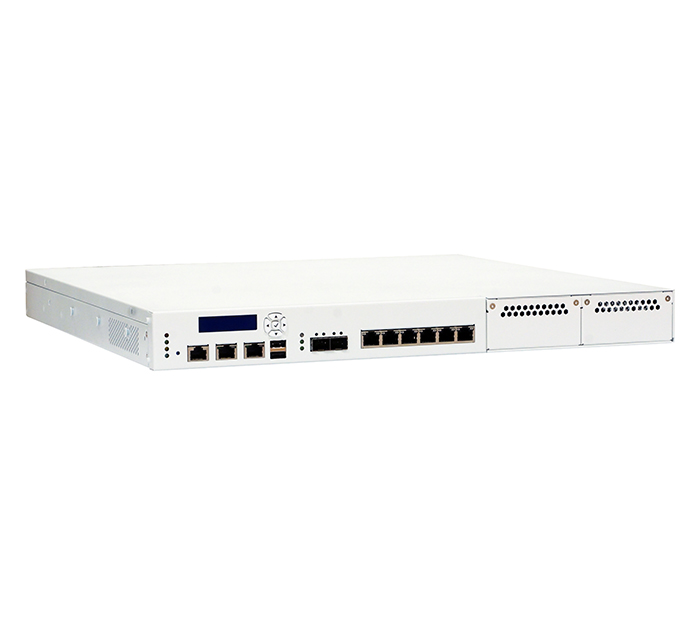

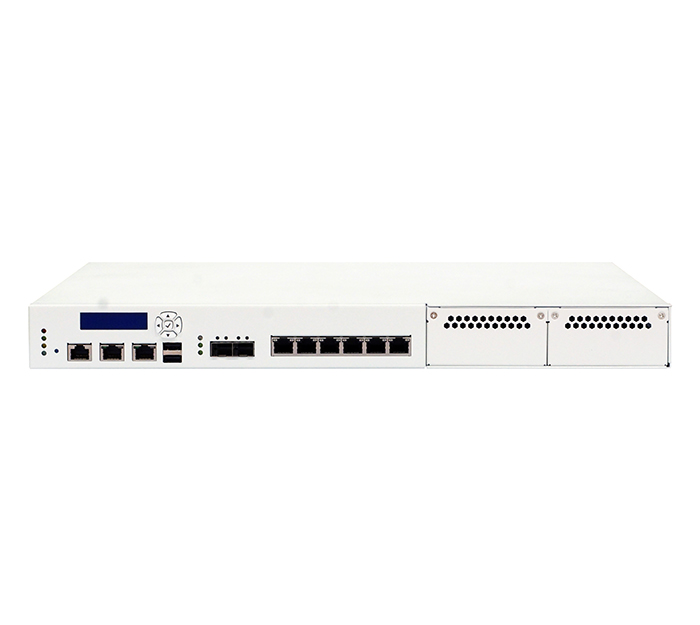

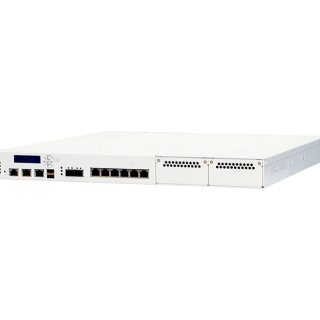

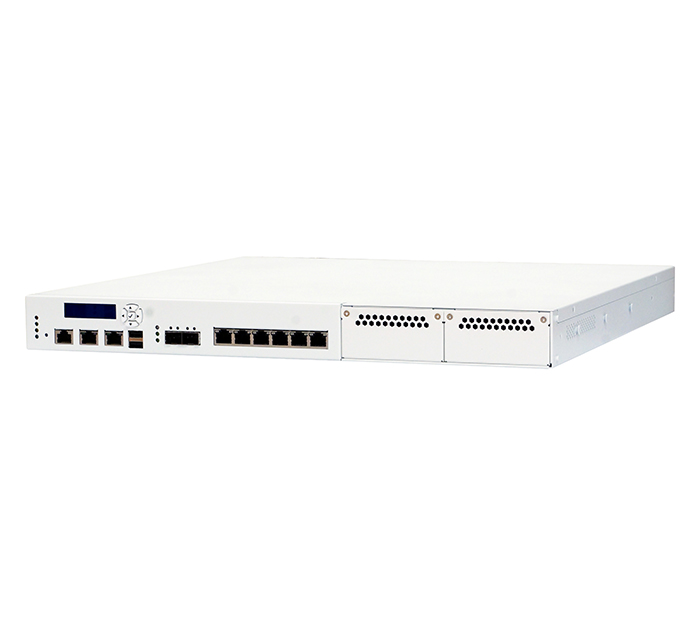

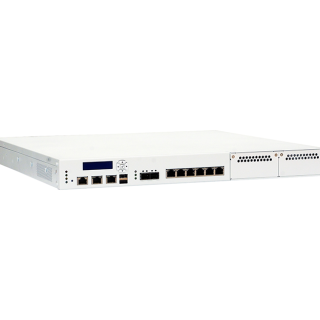

The SCB-1750 is a 1U Rack-Mount hardware networking system supporting Single Intel® Core™ Processors (12th–14th Gen & BTL-S) with Intel® R680E PCH.This 1U Mainstream Network Appliance features 4 DDR5 UDIMM slots, which supports 4x DDR5 UDIMM (up to 5600 MHz) and the maximum memory capacity is up to 128GB.

With two onboard PCIe x8 slots, the SCB-1750 supports multiple Ethernet modules for flexible internet connection configuration, such as 10/40/100 Gigabit fiber NIC module, function enabled (or unenabled) Gigabit Copper/Fiber NIC module, through this flexibility, customers’ various needs can be satisfied.

The strong IO elements include two management Ethernet port, a console port, two USB ports, LEDs for PWR/HDD/2x GPO/3x Bypass. In addition, the SCB-1750 also supports 4x SATA III, 1x mSATA and 1x NVMe M.2 for network storage application.

Processor System

CPU

Intel® Core™ Processors (12th–14th Gen & BTL-S), LGA1700

Chipset

Intel® R680E PCH

BIOS

AMI UEFI BIOS

Memory

Technology

Total 4 x DIMMs (2 channels & two DIMM per channel)
-- ECC DIMM：Depends on CPU type
-- DIMM：DDR5 5600MHz, up to 128GB

Capacity

Max Up to 128GB

Expansion

Onboard Expansion Slots

1x PCIe Gen4 x8 slot
1x PCIe Gen3 x8 slot

Ethernet

GbE Ethernet

2x RJ45 management ports
6x RJ45 GbE ports
2x SFP or RJ45 GbE ports

LAN Bypass

3 Pairs Gen3

I/O

USB

2x USB2.0 type A connector (via R642)
2x USB3.0 pin header

Serial

1x RJ45 type connector (via R642)
1x COM pin header

Storage

SATA

4x SATA 3 connectors

mSATA

1x mSATA socket

M.2

1x NVMe M.2

Power Supply

Watt

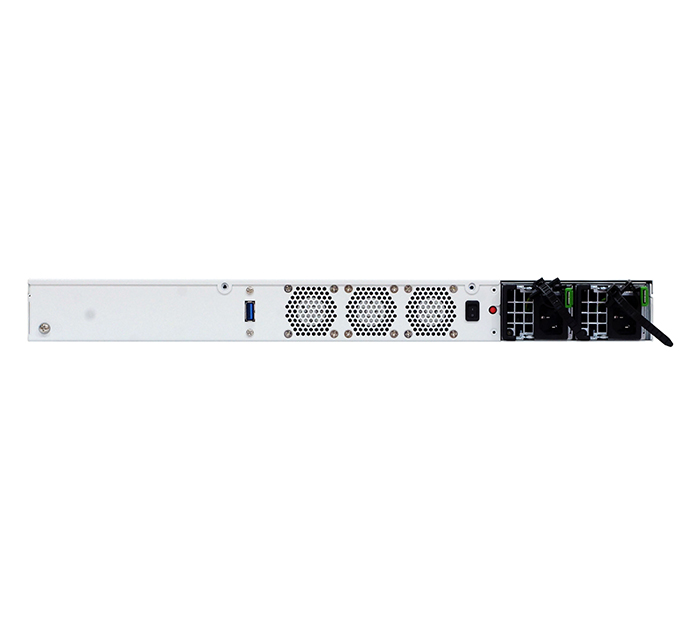

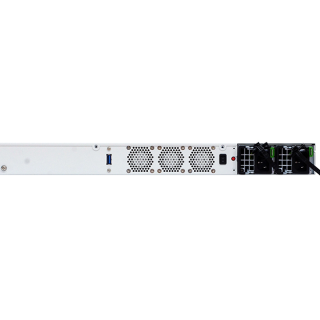

Redundant 300W Power

Mechanical and Environment

Form Factor

1U rack-mount

LED

1x Power LED (Green)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)
3x Bypass LED (Green)

Dimension (W x D x H)

440mm(W) x 450 mm(D) x 44mm(H)

Operating Temperature

Operating: 0 ~ 40°C ( 32 ~ 104°F )

Storage Temperature

-20 ~ 75°C (-4 ~ 167°F)

Humidity

10 ~ 85% relative humidity, non-operating,
non-condensing

Weight

10 kg

Certification

CE/FCC
