SCB-1953

The SCB-1953-2U is a 2U Rack-Mount hardware networking system. Supporting single Inte Xeon 6 Scalable Processor (Granite Rapids-SP/Sierra Forest), the new generation platform provides remarkable performance with increased CPU cores up to 86 P-cores or 144 E-cores.

The SCB-1953-2U supports 8x channels DDR5 RDIMM with up to 6400 MHz and maximum memory capacity is up to 2TB. With 88 PCIe5.0 lanes supported by single Intel Xeon 6 CPU, the SCB-1953-2U support up to 8x PCIe Gen 5 x8 slots for Network Expansion Modules for flexible configuration, such as 1/10/40/100/200 Gigabit fiber, Gigabit Copper/Fiber with or without BYPASS function. The SCB-1953-2U Series also provides outstanding flexibility to change the 2x PCIe slots to 1x PCIe x16 slot for standard PCIe form factors which are suitable for dual-width accelerator cards to enable AI workloads. It can support 400GbE NIC card installed such as Mellanox PCIe5.0 NIC.

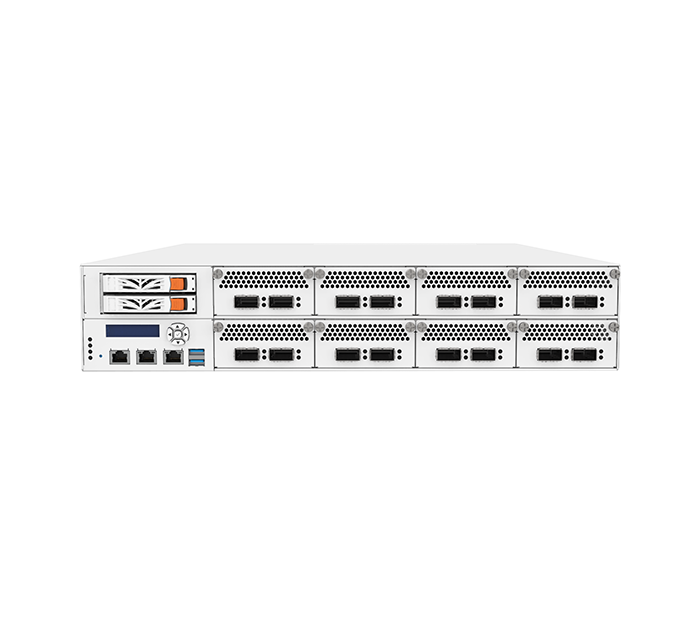

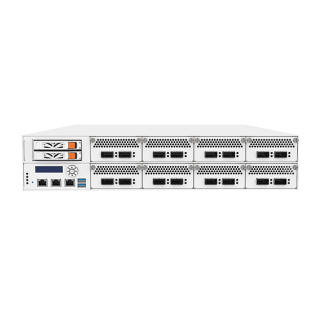

The strong IO elements of SCB-1953-2U include 10GbE management port, 2x 25GbE SFP28 ports, a console port, 2x USB3.1 ports, LEDs for power/HDD/2xGPIO. In addition, the SCB-1953-2U also supports two front hot-swappable 2.5” SATA HDD/SSD and two PCIe4.0 M.2 slots for diverse applications.
