Performance Network Appiance

SCB-1946

Features

Dual AMD EPYC 9005/9004 Series Processors (Turin/Bergamo/Genoa)
Support up to 2TB DDR5 RDIMM 6000MHz
8x PCIe Gen5 x8 Expansion Module bays or 2x Dual Width PCIe Gen5 slots (GPU/FPGA) + 4x PCIe Gen5 x8 Expansion Module bays
2x 2.5” SATA, 2x M.2 M Key, 1x mSATA
IPMI v2.0

Add to Compare Add to Inquiry

Download

Description
Specification
Related Products

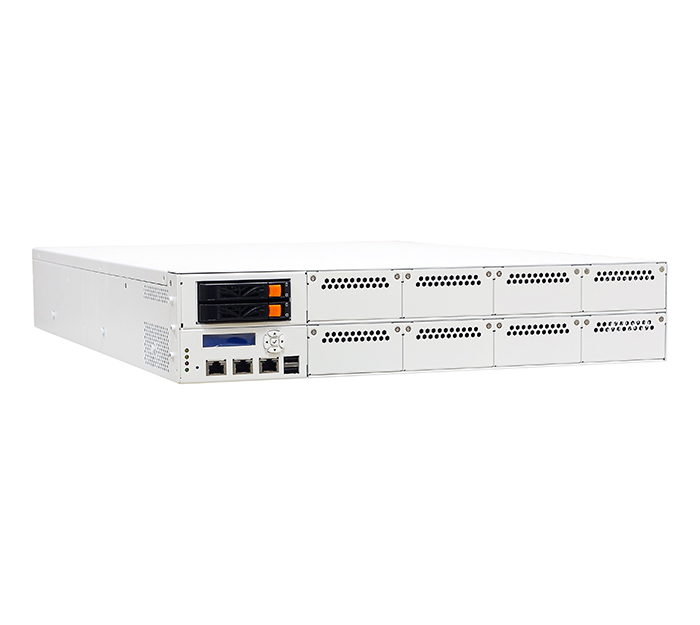

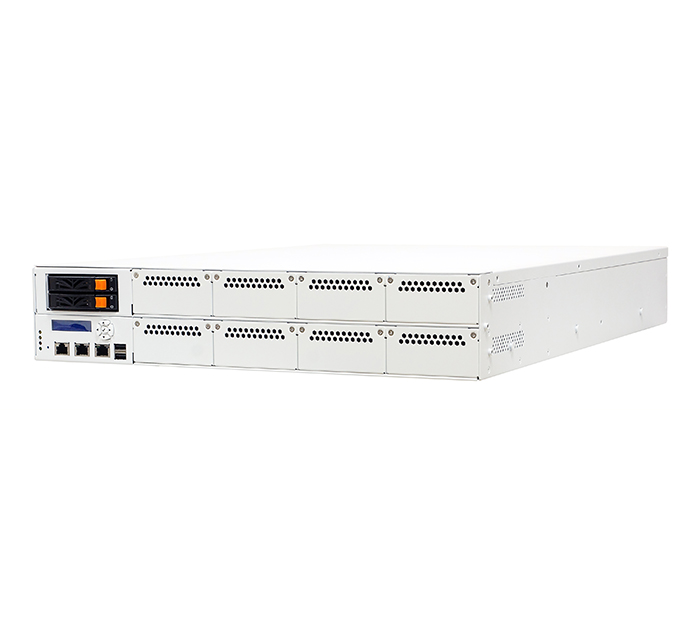

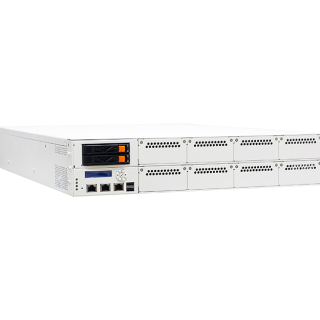

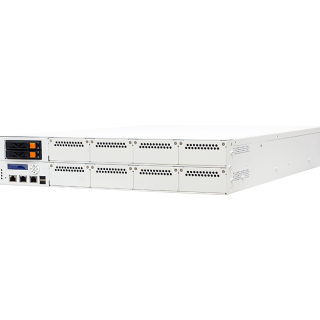

The SCB-1946 is a 2U Rack-Mount Network Appliance supporting Dual AMD EPYC 9005/9004 Series Processors (Turin/Bergamo/Genoa) with breakthrough computing performance. It is with increased CPU cores up to 128 cores per Turin Zen5 processor.

The SCB-1946 supports 16x channels DDR5 RDIMM (up to 6000 MHz) and 16x PCIe Gen5 x8 for Network Expansion Modules. Multiple different ethernet modules are available for flexible port configuration, such as 1/10/40/100/200 Gigabit fiber and Gigabit Copper/Fiber with or without BYPASS function. And the expansion bay can flexibly support 2x 2.5” U.2 NVMe SSD tray, and GPU/FPGA add-on card trays. SCB-1946C is an ideal computing server for Edge and AI workloads.

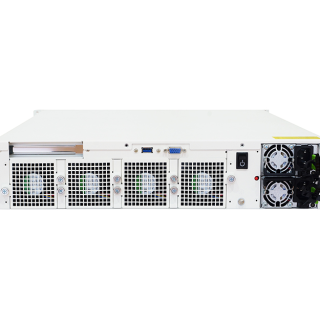

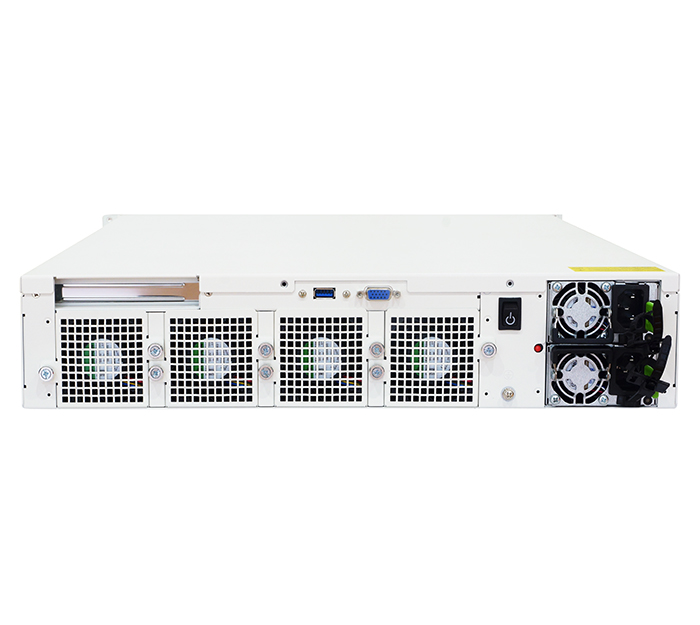

The strong IO elements of SCB-1946 include 2x management port (one for management, another for onboard BMC/IPMI function), a console port, 1x USB3.0, 2x USB 2.0, and a graphic LCM kit. In addition, the SCB-1946 also supports 2x 2.5” hot-swappable SATA HDDs/SSDs, onboard mSATA/miniPCI-E socket, and 2x M.2 slots for diverse storage options.

Processor System

CPU

Support Dual AMD EPYC 9005/9004 Series Processors (Turin/Bergamo/Genoa)
SCB-1946A/C: TDP-300W
SCB-1946E: TDP-400W

System Bus

xGMI up to 32Gbp/s

BIOS

AMI® UEFI BIOS

Memory

Technology

6000 MHz R-DIMM slots

Capacity

RDIMM up to total 2TB

Expansion

Onboard Expansion Slots

SCB-1946A: 8x PCIe Gen5 x8 slots for NIC modules
SCB-1946C/E: 2x dual width PCIe Gen5 x16 + 4x PCIe Gen5 x8 slots for NIC modules

Ethernet

GbE Ethernet

2x RJ45 1GbE ports on the front panel

I/O

USB

2x USB 2.0 ports (Front)
1x USB 3.0 port (Rear)
1x Internal USB3.0 pin header

Serial

1x RJ45 Console port (COM1)
2x internal pin header (COM2 & COM3)

Storage

SATA

Support 2x 2.5” SATA HDD or SSD

mSATA

1x socket (co-layout)

M.2

2x M.2 2280

Power Supply

Watt

1+1 CPRS 1200W/1300W/1600W AC/DC Redundant power supply

Mechanical and Environment

Form Factor

2U/4U Rackmount

LED

1x Power LED (Green)
1x HDD LED (Red)
2x Status LED (Green/Amber via programmable GPIO)

Dimension (W x D x H)

SCB-1946A/C: 440mm (W) x 600mm (D) x 88mm (H)
SCB-1946E: 440mm (W) x 680mm (D) x 88mm (H)

Operating Temperature

Operating: 0 ~ 40°C ( 32 ~ 104°F )

Storage Temperature

-20 ~ 75°C (-4 ~ 167°F)

Humidity

5 ~ 95% relative humidity, non-operating,
non-condensing

Weight

21kg

Certification

CE/FCC
