SCB-1741
4x DDR4 UDIMM memory, up to 3200MHz
10x 1GbE RJ45 ports or 2x 1GbE SFP ports, 2x Expansion Module bays
2x 2.5" SATA, 1x mSATA, 1x M.2 M Key
-
ADC -
UTM -
NGFW

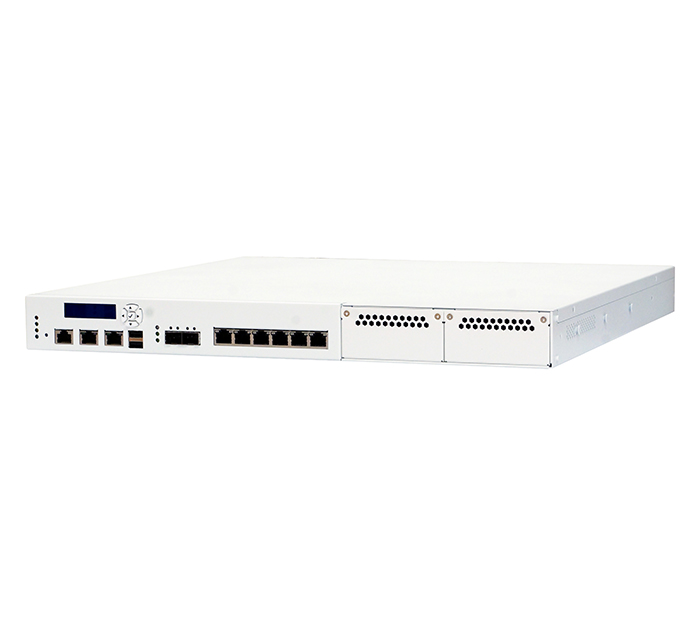

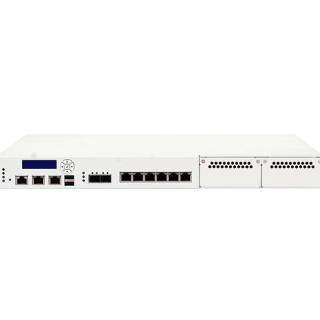

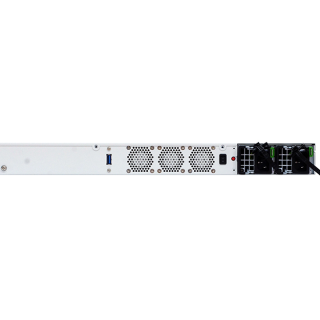

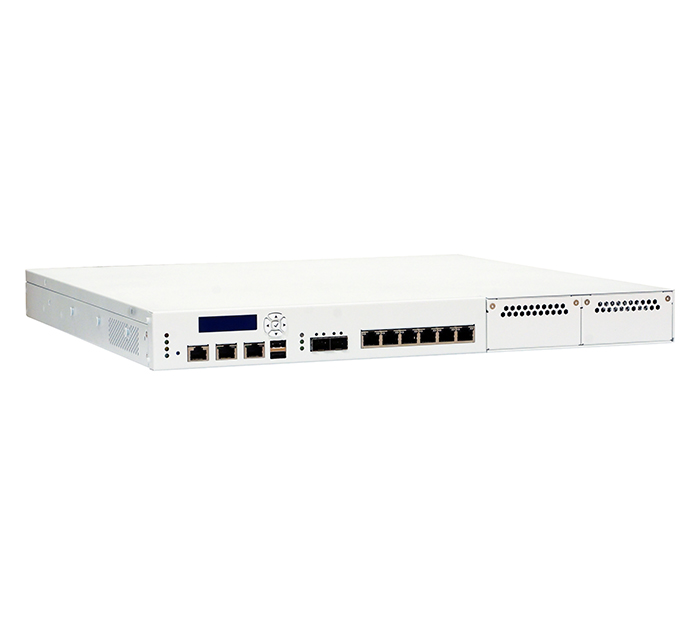

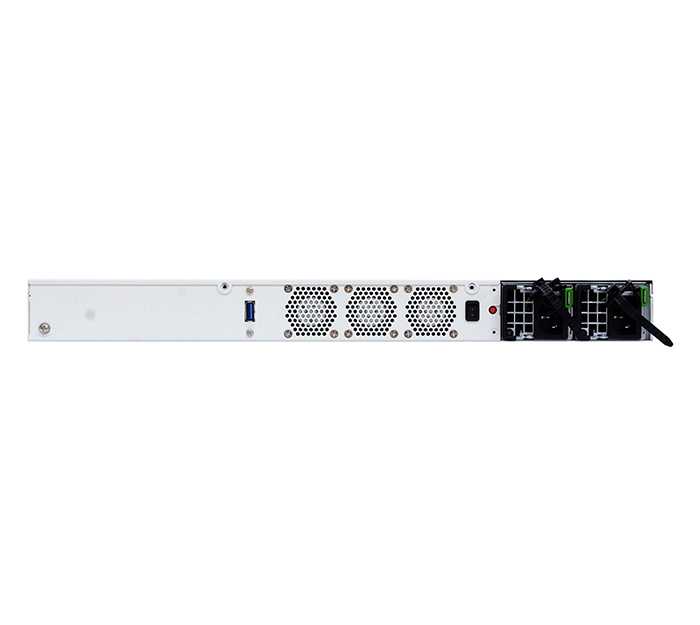

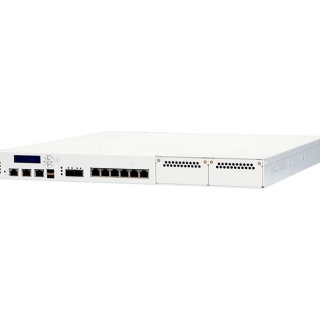

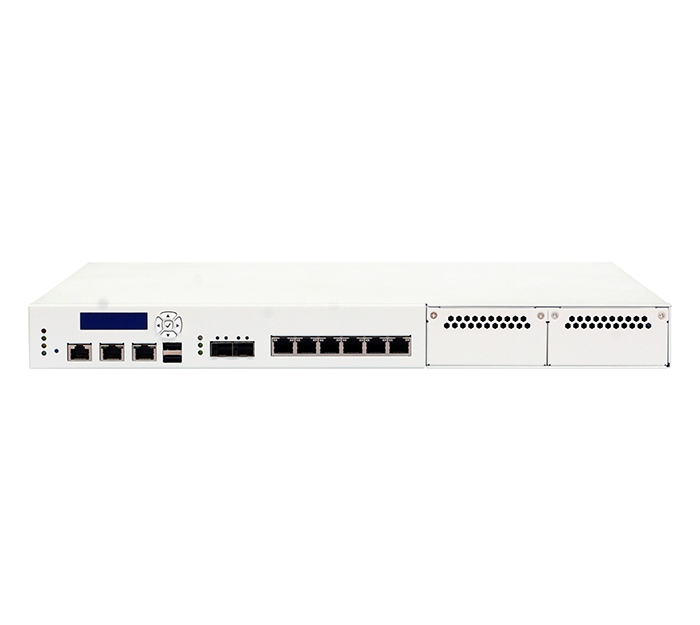

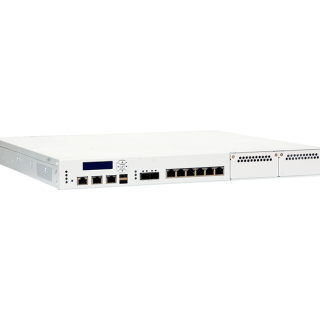

The SCB-1741 is a 1U Rack-Mount hardware networking system supporting Single Intel® Alder Lake-S (12th Core) and Raptor Lake-S (13th Core) processors with Intel® R680E PCH.This 1U Mainstream Network Appliance features 4 DDR4 UDIMM slots, which supports 4x DDR4 UDIMM (up to 3200 MHz) and the maximum memory capacity is up to 128GB.
With two onboard PCIe x8 slots, the SCB-1741 supports multiple Ethernet modules for flexible internet connection configuration, such as 10/40/100 Gigabit fiber NIC module, function enabled (or unenabled) Gigabit Copper/Fiber NIC module, through this flexibility, customers’ various needs can be satisfied.
The strong IO elements include two management Ethernet port, a console port, two USB ports, LEDs for PWR/HDD/2x GPO/3x Bypass. In addition, the SCB-1741 also supports 4x SATA III, 1x mSATA and 1x NVMe M.2 for network storage application.
-- ECC DIMM：Depends on CPU type
-- DIMM：DDR4 3200MHz, up to 128GB
1x PCIe Gen3 x8 slot
6x RJ45 GbE ports
2x SFP or RJ45 GbE ports
2x USB3.0 pin header
1x COM pin header
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)
3x Bypass LED (Green)
non-condensing
