SCB-1945
Support up to 1.152TB DDR5 RDIMM 4800MHz
4x PCIE Gen5 x8 for Network Expansion Module for 1U
Support BMC/IPMI and hardware One-Key Bypass function.
-
ADC -
UTM -
NGFW -
Cloud -
Edge AI

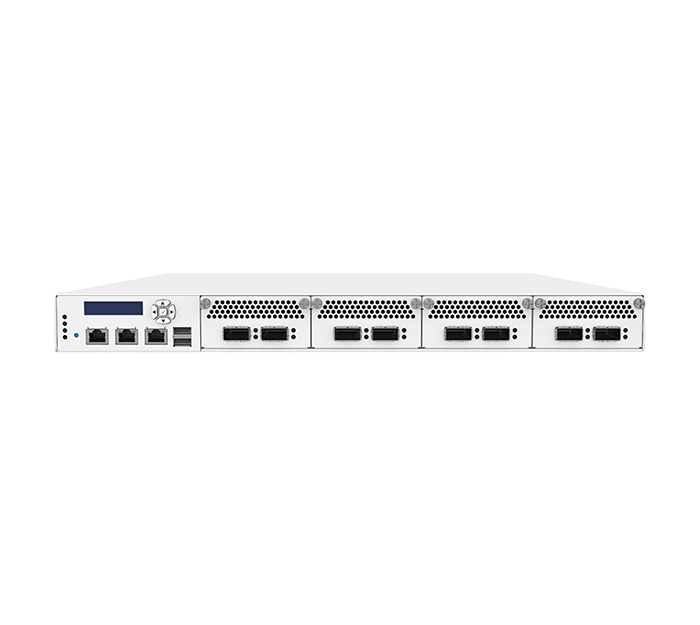

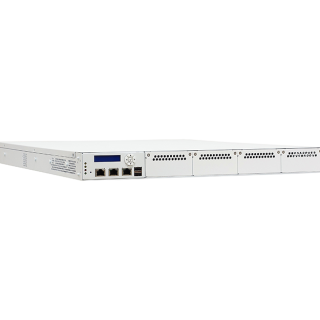

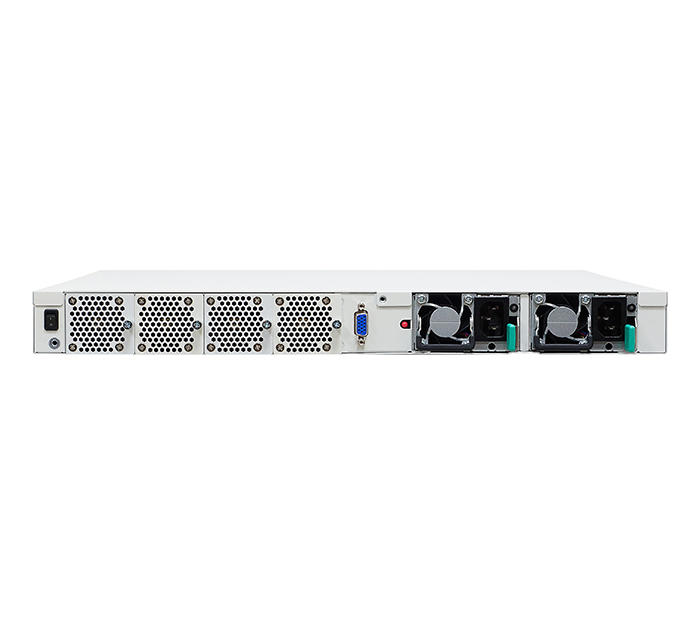

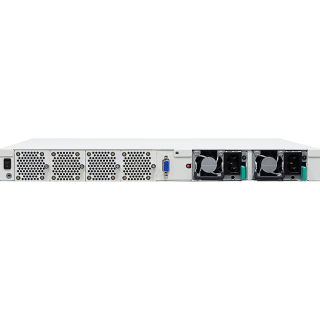

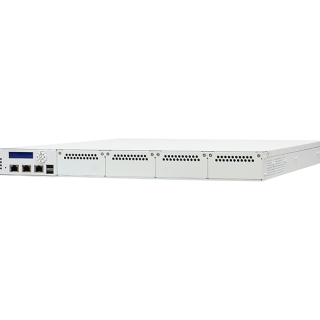

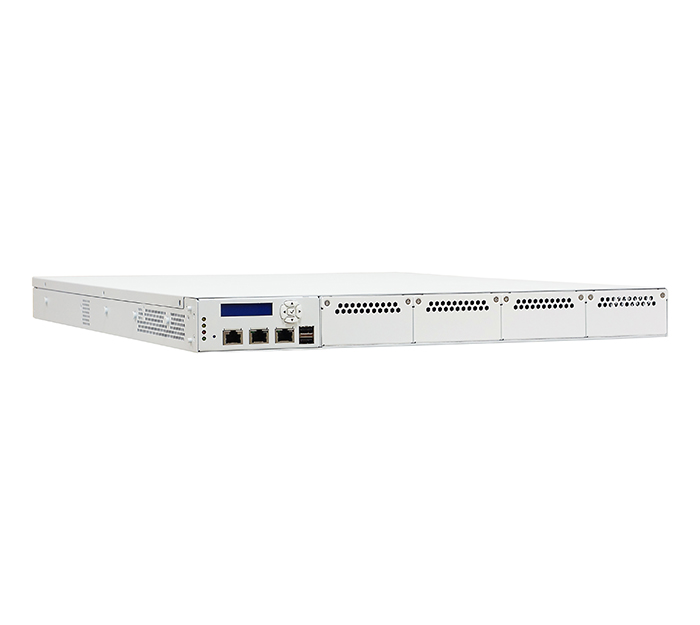

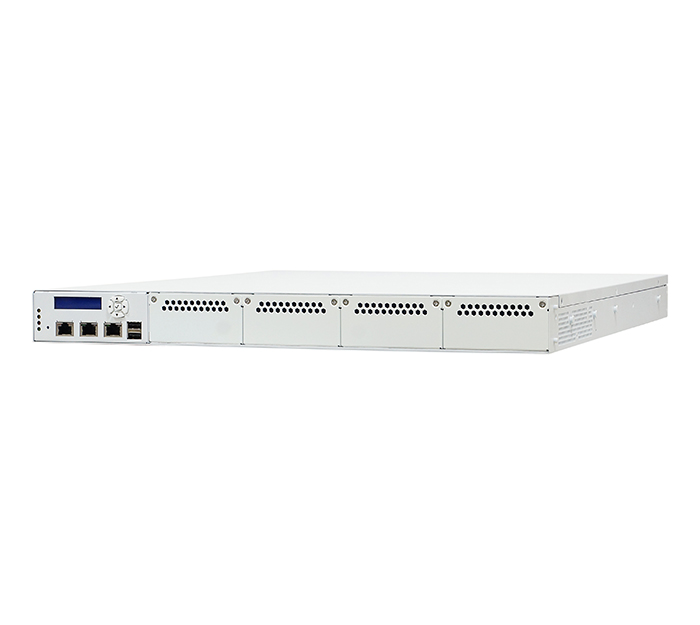

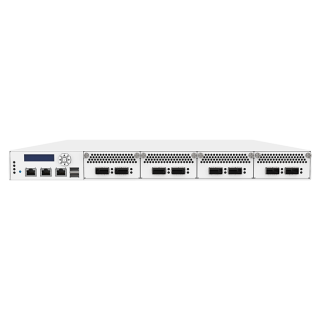

The SCB-1945 is a 1U Rack-Mount Network Appliance supporting Single AMD EPYC 8004 Series Siena Processors with breakthrough computing performance. It is with increased CPU cores up to 64 cores per EPYC 8004 processor.
The SCB-1945 supports 12x slots DDR5 RDIMM (up to 4800 MHz) and 4x PCIe Gen5 x8 slots for Network Expansion Module. Multiple different ethernet modules are available for flexible port configuration, such as 1/10/40/100 Gigabit fiber and Gigabit Copper/Fiber with or without BYPASS function. And the expansion bay can flexibly support 2x 2.5” U.2 NVMe SSD tray. SCB-1945 is an ideal computing server for Edge and AI workloads.
The strong IO elements of SCB-1945 include 2x management port (one for management, another for onboard BMC/IPMI function), a console port, 2x USB 2.0, a graphic LCD module. In addition, the SCB-1945 also supports 2x 2.5” SATA HDDs/SSDs hot-swappable, onboard mSATA/miniPCI-E, and M.2 slot for basic network storage application.
7x internal MCIO 8i connector
3x SATA Port
1x mSATA
Internal: 1 USB3.0 Pin Header
2x internal pin header (COM2 & COM3)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)
non-condensing
