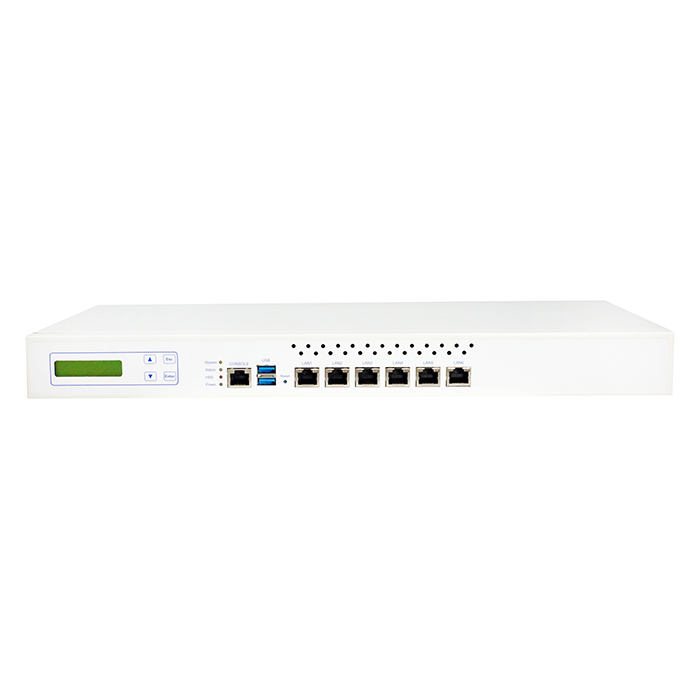

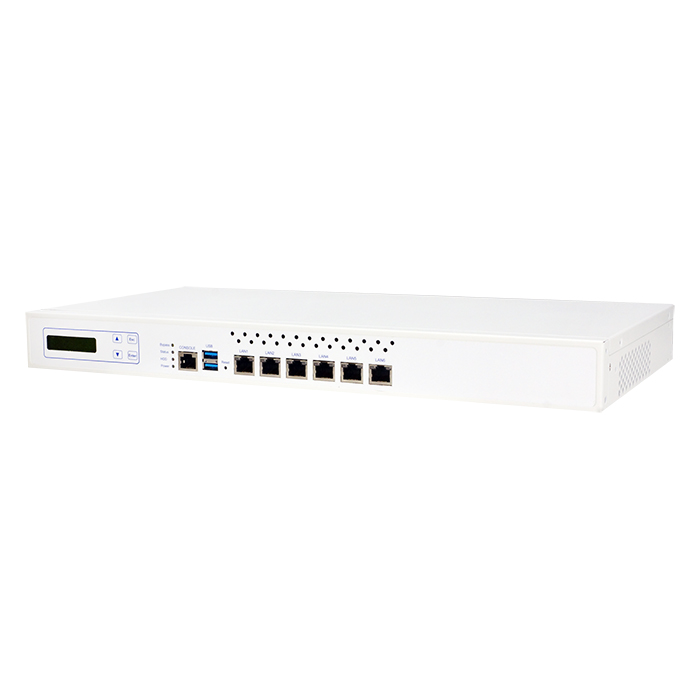

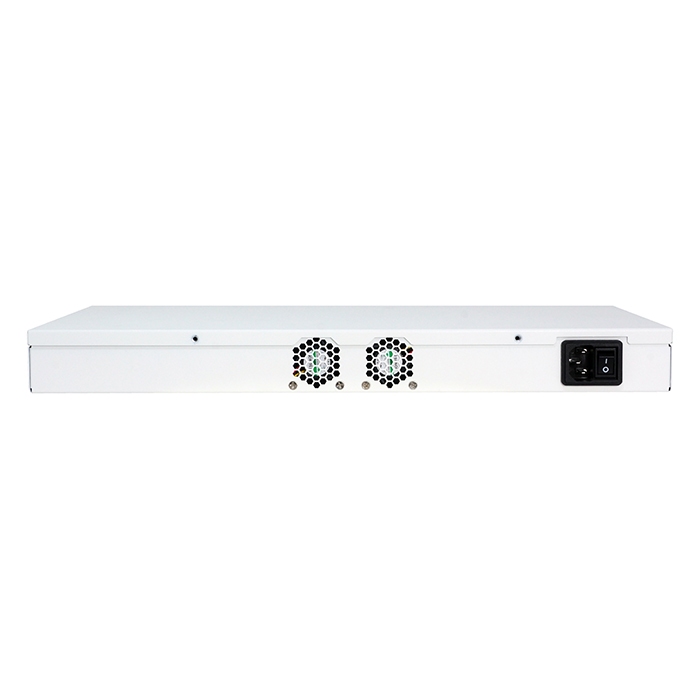

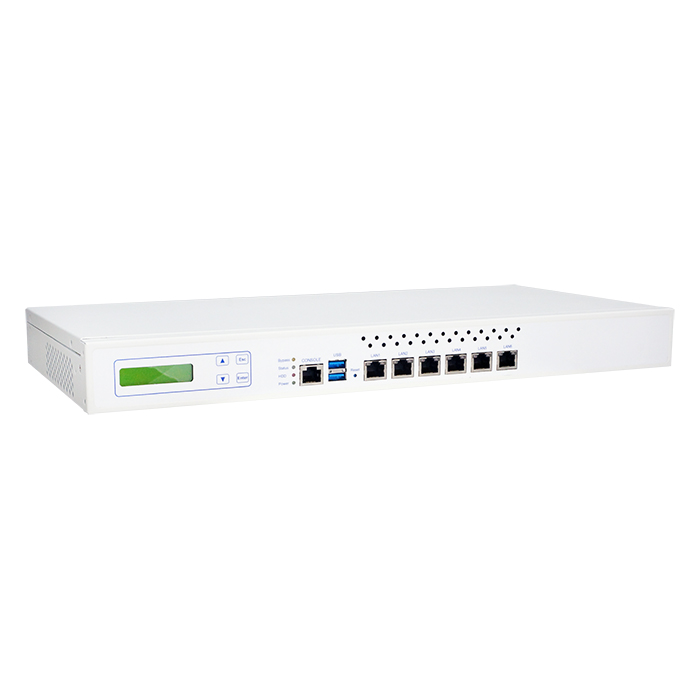

SCB-7906是一款专为网络服务应用设计的1U机架式硬体平台。该平台採用Intel®嵌入式IA元件，并保证长期使用，支持Intel® AtomTM Apollo Lake-I低电压处理器。该平台支持双通道高带宽DDR3L SO-DIMM插槽和板载DDR3L内存，系统内存可达8GB。为了提供最佳的网络性能和最佳的利用率，电源存储接口包括一个2.5英寸或一个3.5英寸SATA HDD和eMMC，双USB 3.0端口，一个RJ45控制台端口，以及监控电源和存储设备活动的LED指示灯，用于本地系统管理、维护、诊断以及先进的第三代LAN旁路。此外，SCB-7906还支持一个PCI-E连接器以便扩展。该系统符合RoHS、FCC和CE标准。
处理器系统
CPU
Intel Celeron/Pentium and Atom E3950/E3940/E3930 (Apollo Lake) processors
BIOS
AMI® UEFI BIOS
记忆
科技
Un-buffered and Non-ECC DDR3L 1600/1866MHz memory
Memory
Capacity
Max. 8GB with one SO-DIMM socket and Mem-Down (build option)
扩展
上板扩展插槽
1x mini-PCIe socket via PCI-E x1. (build Option)
1x PCIe x4 connector via 2 xPCIe x1. (build Option)
1x PCIe x4 connector via 2 xPCIe x1. (build Option)
Expansion
Ethernet
GbE Ethernet
6x Copper GbE ports, Intel I211, PCI-E x1
(2 pairs bypass between LAN3, LAN4 and LAN5, LAN6)
(2 pairs bypass between LAN3, LAN4 and LAN5, LAN6)
LAN 绕过
2 pairs of Gen3 LAN Bypass
I/O
USB
2x external USB3.0
2x internal USB 2.0 with pin header
2x internal USB 2.0 with pin header
Serial
1x RJ45 Console port (COM1)
1x internal 5x2 pin header (COM2)
1x internal 5x2 pin header (COM2)
Storage
SATA
1x internal 2.5”/3.5” SATA HDD bay(option)
eMMC
eMMC 5.0 (build option)
储存
电源
瓦特
1U 60W power supply
机械与环境
形状因素
1U Rack-Mount
LED
1x Power LED (Green)
1x HDD LED (Red)
1x Bypass LED (Yellow)
1x Status LED(Green/Yellew)
1x HDD LED (Red)
1x Bypass LED (Yellow)
1x Status LED(Green/Yellew)
尺寸 (宽 x 深 x 高)
440mm (W) x 218mm (D) x 43mm (H)
(17.32"W x 8.58" D x 1.88" H)
(17.32"W x 8.58" D x 1.88" H)
操作温度
0 ~ 40°C ( 32 ~ 104°F )
储存温度
-20 ~ 75°C (-4 ~ 167°F)
湿度
10 ~ 85% relative humidity, non-operating,
non-condensing
non-condensing
重量
4.5kg
认证
CE/FCC
