SCB-1739
Support Max 128GB DDR4 2133/2400/2667/2933 MHz RDIMM or UDIMM
Max support 2x PCIe Gen3 x8 slots for Network Expansion Module
Option BMC/IPMI Card
-
ADC -
UTM -
NGFW

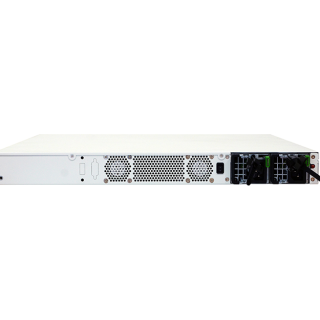

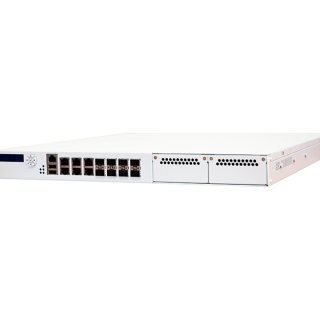

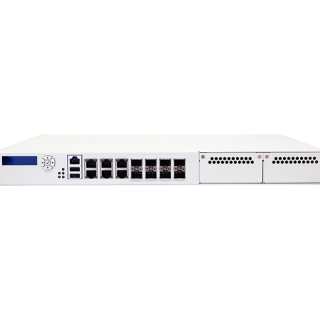

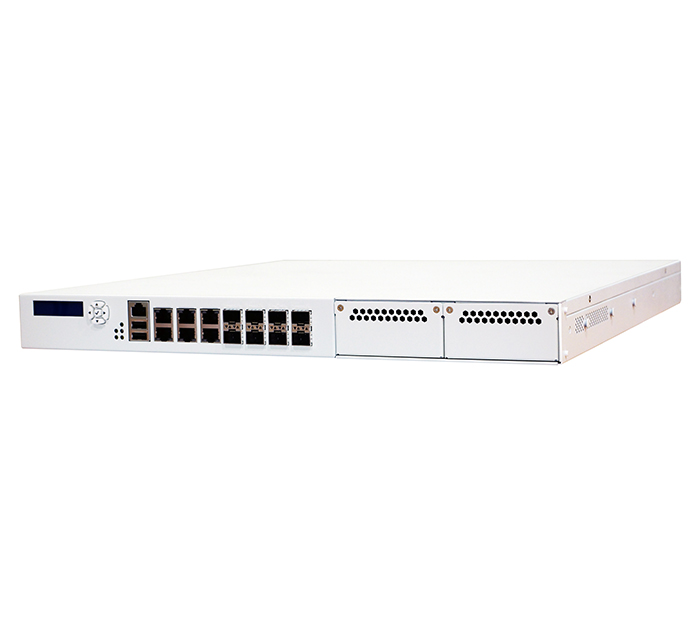

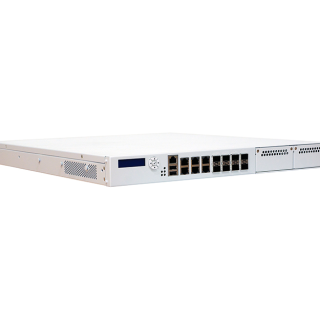

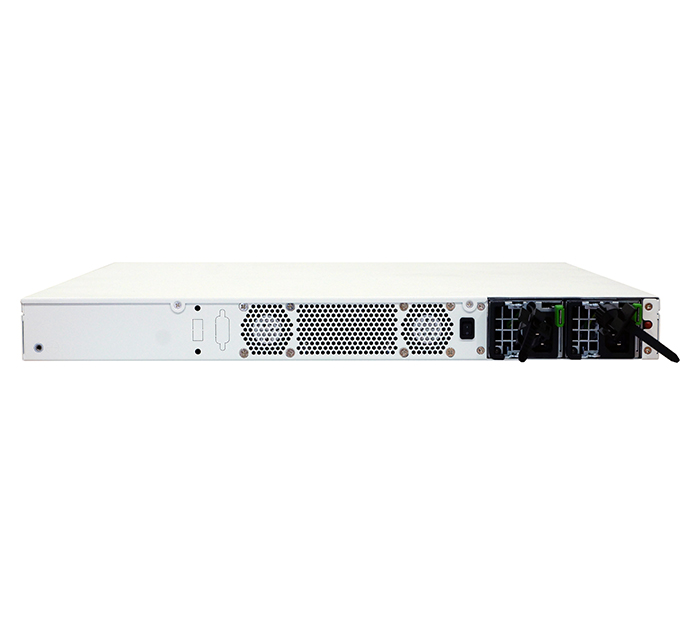

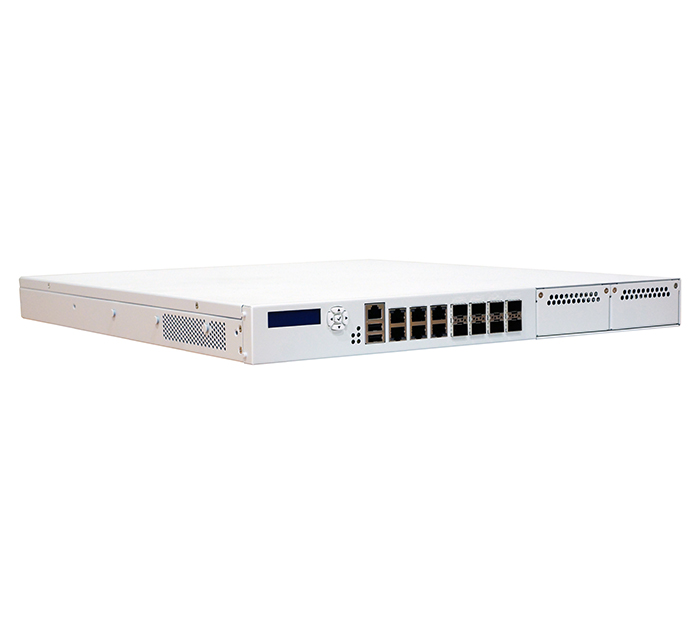

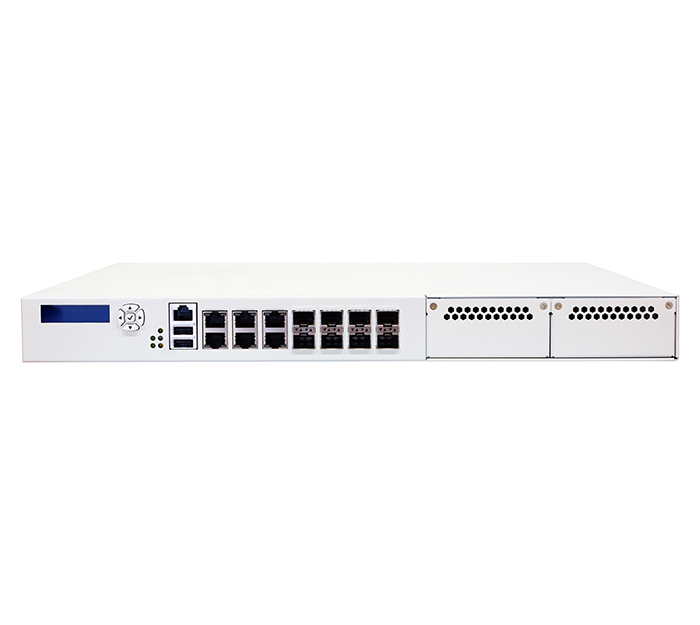

The SCB-1739 is a 1U Rack-Mount network appliance. It is based on Intel Atom P5300/C5000 processor (SnowRidge/ParkerRidge) with increased CPU cores up to 24 for higher performance and better efficiency.
The SCB-1739 has 2x channels DDR4 register ECC RDIMM (up to 2933 MHz), and maximum memory capacity is up to 128GB. With 32 PCI Express lanes, the SCB-1739 features up to two Network Expansion Modules to support multiple different ethernet modules for building flexible configuration with options of 1/10/40/100 Gigabit fiber, Gigabit Copper/Fiber with or without BYPASS function. The strong IO elements of SCB-1739 include two management port (one for management, another for option IPMI function), a console port, USB ports, etc. In addition, the SCB-1739 also supports internal 2.5” SATA HDD/SSD and onboard m-SATA/miniPCI-E slot for network storage application.
Total 4 DIMMs (2 channels per CPU, 2x DIMM per channel)
1x mSATA/miniPCI-E
1x rear PCIe x8 slot for PCIe card (Optional)
1x internal USB 2.0 pin header
2x internal pin header (COM2 & COM3)
1x HDD LED (Red)
1x Status LED (Green/Yellow via programmable GPIO)
2x Bypass LED（Green）
non-condensing
