SCB-1931
Support up to 3TB DDR4 RDIMM/LRDIMM 3200MHz & Intel® Optane Persistent Memory 200 series
Support Intel QAT (by SKU)
2x RJ45 1GbE ports, 4x PCIe Gen4 Expansion Module bays 2x 2.5” SATA, 2x M.2 2280, 1x mSATA
IPMI v2.0, Intel PFR / AEWIN TSB module

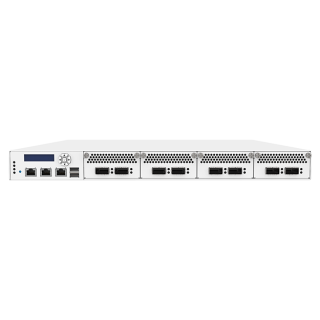

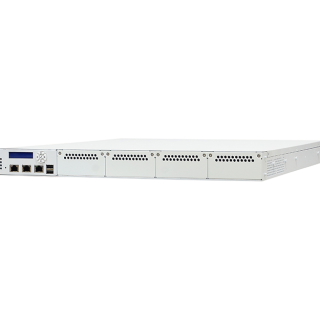

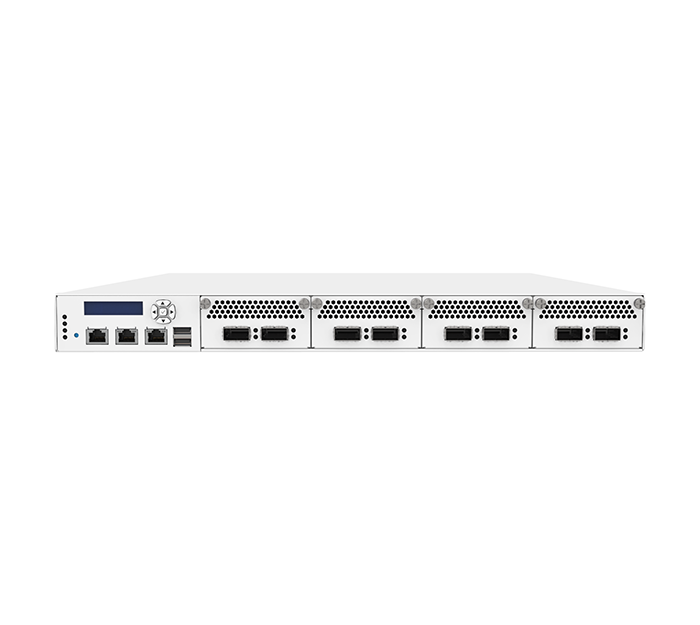

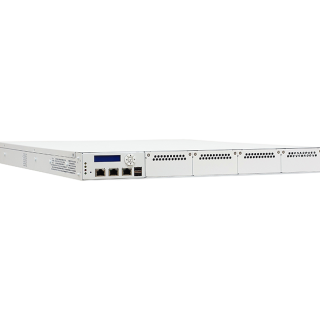

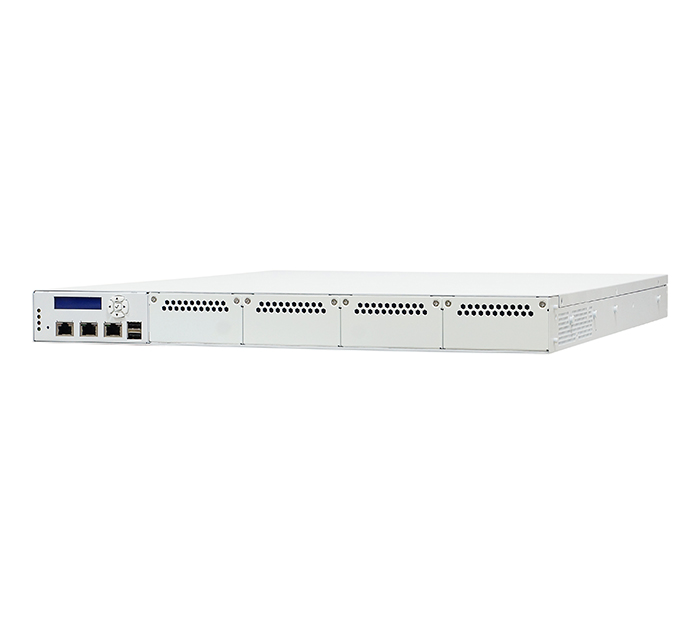

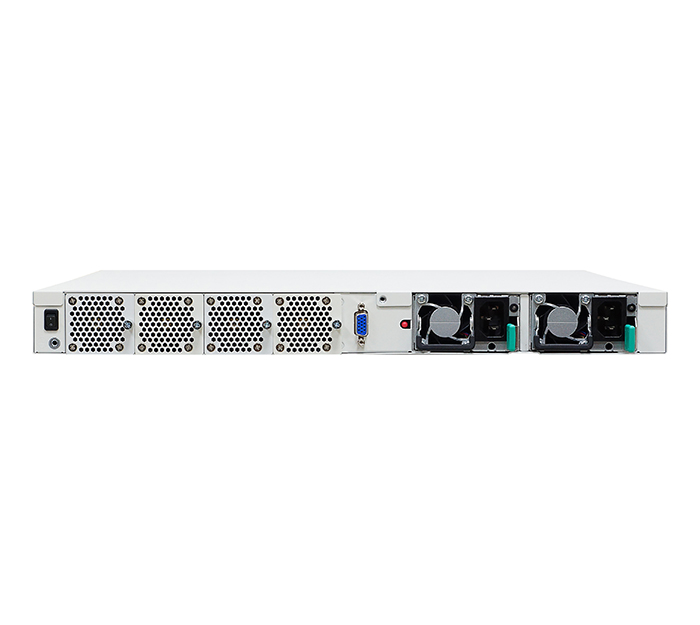

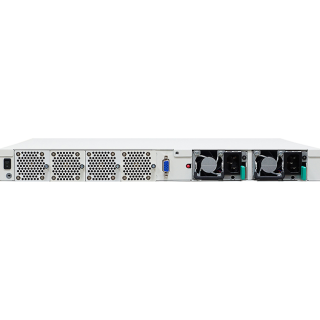

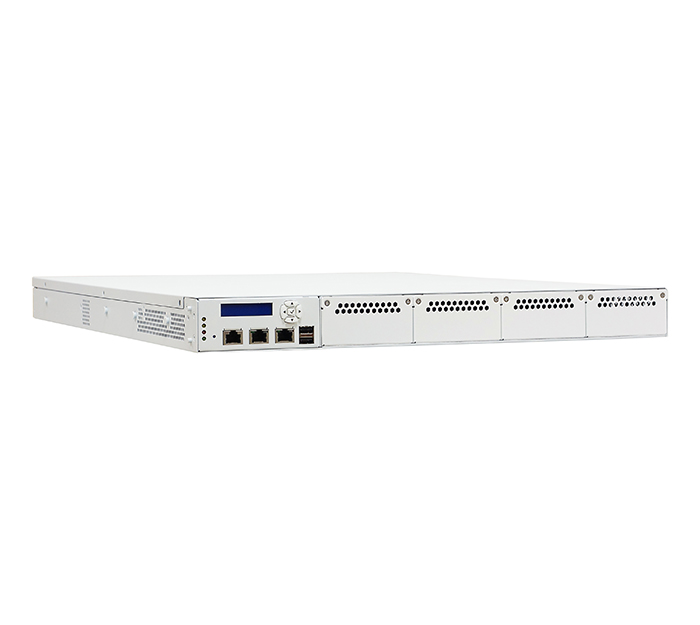

The SCB-1931 is a 1U Rack-Mount hardware networking system. Supporting Intel® Whitley/Ice Lake-SP with efficient performance processor Xeon® scalable series and Intel® C621A PCH (codenamed Lewisburg). The new generation platform provides higher performance and increased CPU cores up to 40 cores. The SCB-1931 supports 8x channels DDR4 RDIMM/LRDIMM (up to 3200 MHz) and Intel Optane PMem to have Max. capacity of 3TB. With 64 PCI Express lanes per CPU, the SCB-1931 can support up to 4x Network Expansion Modules. Multiple different ethernet modules are available for flexible port configuration, such as 1/10/40/100 Gigabit fiber and Gigabit Copper/Fiber with or without BYPASS function.
The strong IO elements of SCB-1931 include two management port (one for management, another for option IPMI function), a console port, USB ports, LEDs for power/ HDD/ 2x GPIO. In addition, the SCB-1931 also supports one 2.5” SATA HDD/SSD and onboard Compact Flash™/m-SATA/miniPCI-E, M.2 slot for network storage application.
--DDR4 RDIMM/LRDIMM up to 3200 MHz, up to 256GB per DIMM
--Intel® Optane™ DC Persistent Memory (DCPMM) 200 Series module, up to 512GB per DIMM
- 2x M.2, one CF/mSATA/miniPCI-E,
- 2x internal SlimSAS 4i connector
- 1x rear PCIe x8 slot for Standard PCIe card (Optional)
1x internal USB 3.0 pin header
2x internal pin header (COM2 & COM3)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)
non-condensing
