SCB-1836

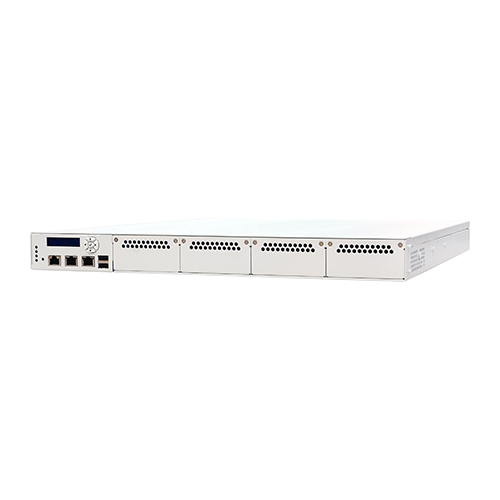

1U rack-mount system with 12th Gen Intel® Core Processor(Alder Lake) with R680E FCH, 4 x DDR5 UDIMM, 2 x USB2.0, 3 x SATA III, 1 x mSATA, 1 x mPCIe, OT004B pin header, TPM 2.0 (optional), IPMI slot (R492A with dying gasp, optional), 4 x NIC module & BP003A + 300W redundant PSU

Overview
Specifications
Download
Options
Key features
  • Supporting 12th Gen Intel® Core™ Processor(Alder Lake), LGA1700
  • 4x DDR5 UDIMM memory up to 4800MHz, max. 128GB
  • 2x RJ45 1GbE ports, one Console port, 4x Expansion Module bays (2x Gen5 PCIe x8 signal in PCIe x8 slot & 2x Gen4 x4 signal in PCIe x8 slot)
  • 3x SATA 3.0 socket, 1x mSATA, 1x mPCIe
  • Support TPM & IPMI features
Status : available

The SCB-1836 is a 1 U Rack-Mount high-performance networking system, supporting 12th Gen core processor (Alder Lake) with increased CPU cores and threads (up to 16 cores/24 threads) for outstanding performance. Also, it is with increased L2 & L3 cache with up to 30MB Intel Smart cache which is 50% growth compared to Comet Lake one.

SCB-1836 supports total four DDR5 DIMM (two channels and 2 DIMM per channel), up to 4800MHz and 128GB to enable faster computing. As for the expansion slots, it supports the latest PCIe Gen 5 for superior performance. Combining with PCIe Gen 4 slots to have total 4x expansion slots (2x PCIe Gen 5 & 2x PCIe Gen 4 lots), the system can build the exact configurations required per cases effortlessly as it is also compatible with AEWIN various NIC cards for 1/10/25/40/100 Gigabit fiber or copper with optional Bypass function.

In addition to the great capability and function mentioned, SCB-1836 supports DPDK to accelerate packet processing to benefit the system with higher efficiency. Furthermore, it is featured with IPMI for monitoring and better managing the system intelligently. To ensure the networking security, the system is with TPM to protect its start-up process. With all the features mentioned, SCB-1836 is no doubt perfect as a performant network appliance for diverse applications.

Specifications
Processor System
CPU
12th Gen Intel® CoreTM Processor (Alder Lake), LGA1700
Chipset
R680E
BIOS
AMI UEFI BIOS
Memory
Technology
4x UDIMM, DDR5 4800MHz memory
Capacity
128GB
Expansion
Expansion slot
2x PCIe Gen5 x8 slots + 2x PCIe Gen4 x8 slots
Ethernet
GbE Ethernet
2x RJ45 GbE ports
Storage
SATA
Support 2 x 2.5” HDD or SSD
mSATA
1
I/O
USB
2x USB 2.0 connector + 2x USB 3.0 pin header
Serial
1 x RJ45 console
Power Supply
Watt
300W redundant PSU
Mechanical and Environment
Form Factor
1U Rack-mount
LED
1x Power LED (Yellow)
1x HDD LED (Green)
2x Status LED(Green / Red via programmable GPIO)
Dimension (W x D x H)
400mm (W) x 510mm (D) x 44m (H)
Operating Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
0~40°C (32 ~ 104°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
Weight
12kg
Certification
CE / FCC / LVD
Download
Datasheet
2022-04-27
1
Windows10
Optional
Optional
SCB-1836A
1U rack-mount system with Intel Alder Lake CPU with R680E FCH, 4 x DDR5 UDIMM, 2 x USB3.0, 3 x SATA III, 1 x mSATA, 1 x mPCIe, TPM 2.0 (optional), IPMI slot (R492A with dying gasp, optional), 4 x NIC module & BP003A + 300W redundant PSU
