SCB-1742

1U Rackmount, AMD AM5 Ryzen™ Embedded 7000 Series CPU with AMD B650 PCH, 4x DDR5 UDIMM up to 128GB, 1x RJ45 Console, 2x USB, 2x i210-IS SFP, 4x i210-AT GbE, 4x i226-LM 2.5GbE, 2x 2.5, M.2, 2x PCIe x8 slots for NIC cards, and 300W redundant PSU

Overview
Specifications
Download
Options
zoom
zoom
Key features
  • Supporting AMD AM5 Ryzen™ Embedded 7000 Series Processor
  • 4x DDR5 UDIMM memory up to 5200MHz, up to 128GB
  • 2x RJ45 1GbE or 2x 1GbE SFP, 4x 1GbE RJ45, 4x 2.5GbE RJ45, 2x Expansion Module bays
  • 2x 2.5”, 1x M.2
Status : available

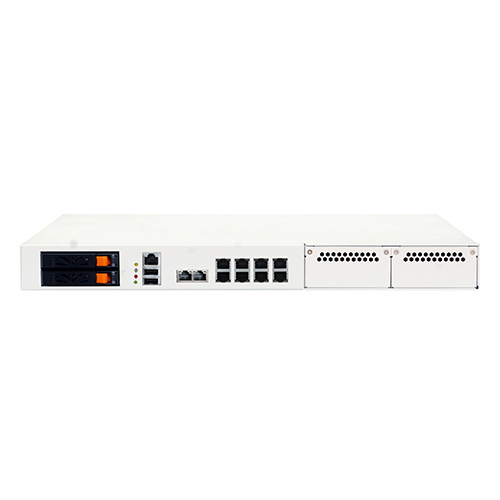

The SCB-1742 is a 1U Rack-Mount hardware networking system supporting Single AMD AM5 Ryzen™ Embedded 7000 Series processor with AMD B650 PCH. The 1U Mainstream Network Appliance features 4 DDR5 UDIMM slots, which supports 4x DDR5 UDIMM up to 5200 MHz and the maximum memory capacity is up to 128GB. Featuring two PCIe x8 slots, the SCB-1742 supports multiple Ethernet modules for flexible internet connection configuration, such as 1/10/40/100 Gigabit fiber and Gigabit Copper/Fiber with or without BYPASS function. The rich IO elements include four 2.5GB, 4x 1GbE RJ45, 2x RJ45 1GbE or 2x 1GbE SFP, a console port, two USB ports, and LEDs for PWR/HDD/2x GPO/3x Bypass. In addition, the SCB-1742 also supports 2x hot-swappable 2.5” SSD/HDD and 1x PCIe4.0 x2 M.2 slots for network storage application.

Specifications
Processor System
CPU
AMD Ryzen™ Embedded 7000 Series Processors, AM5
Chipset
AMD B650 PCH
BIOS
AMI UEFI BIOS
Memory
Technology
Total 4 x DIMMs (2 channels & two DIMM per channel)
-- ECC DIMM：Depends on CPU type
-- DIMM：DDR5 5200MHz, up to 128GB
Capacity
Up to 128GB
Expansion
Onboard Expansion Slots
2x PCIe Gen4 x8 slots for NIC modules
I/O
USB
2x USB2.0 type A connector
2x USB3.0 pin header
Serial
1x RJ45 type connector
1x COM pin header
Ethernet
GbE Ethernet
4x RJ45 2.5GbE ports
4x RJ45 GbE ports
2x SFP or RJ45 GbE ports
LAN Bypass
2 Pairs Gen3
Storage
SATA
2x hot-swappable 2.5” SSD/HDD
M.2
M.2 PCIe4.0 x2
Power Supply
Watt
Redundant 300W Power
Mechanical and Environment
Form Factor
1U rack-mount
LED
1x Power LED (Green)
1x HDD LED (Red)
1x Status LED (Amber via programmable GPIO)
1x Bypass LED (Amber)
Dimension (W x D x H)
440mm(W) x 450 mm(D) x 44mm(H)
Operating Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
Weight
10 kg
Certification
CE/FCC
Download
Datasheet
2019-09-03
1
Windows10
download_icon 597 KB
Optional
Optional
SCB-1742A
1U rack-mount sys., AMD Ryzen 7000 series CPU with B650 PCH, 4xDDR5 UDIMM, LCM, RJ45 Console, 2x USB, 8x GbE (4x I210-AT, 4x I226-LM), 2x SFP (I210-IS), NVMe M.2, 2x NIC slots, PCIe x8 slot for rear expansion, 300W+300W Slim PSU
SCB-1742B
1U rack-mount sys., AMD Ryzen 7000 series CPU with B650 PCH, 4xDDR5 UDIMM, 2x Swap. SSD slots, RJ45 Console, 2x USB, 10x GbE (6x I210-AT, 4x I226-LM), NVMe M.2, 2x NIC slots, PCIe x8 slot for rear expansion, 250W single PSU
