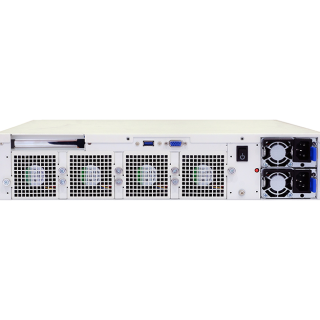

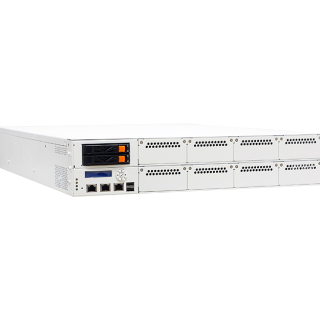

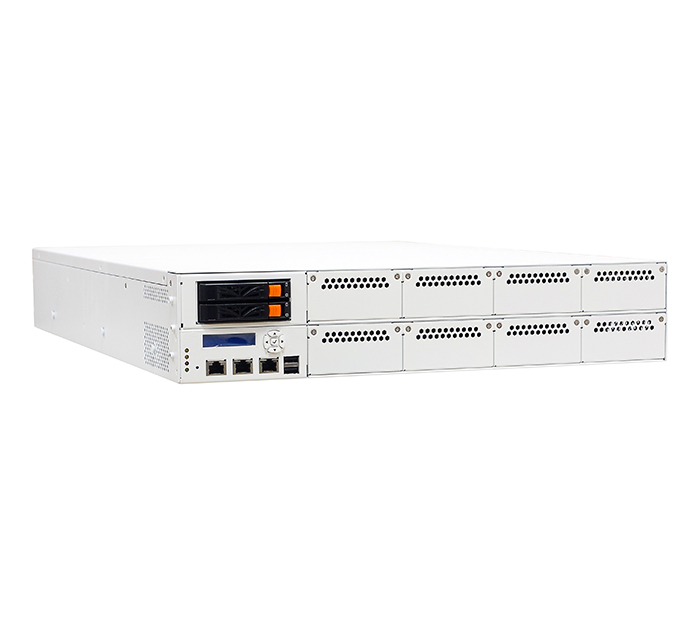

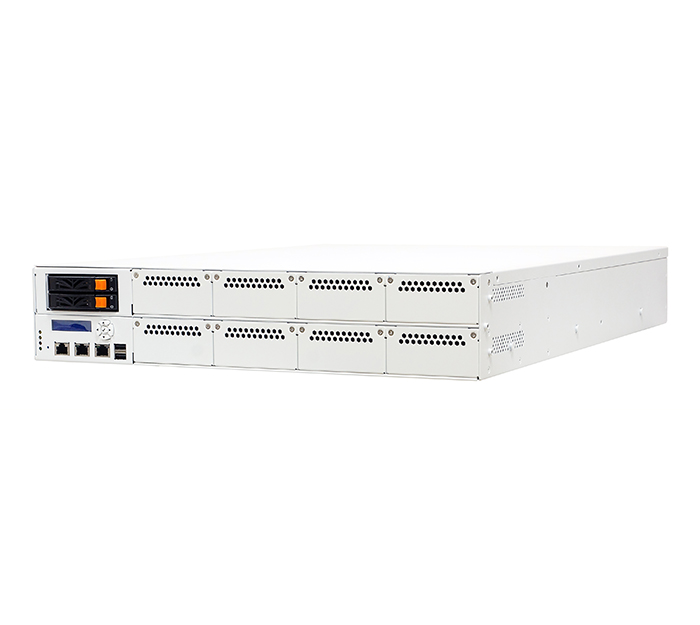

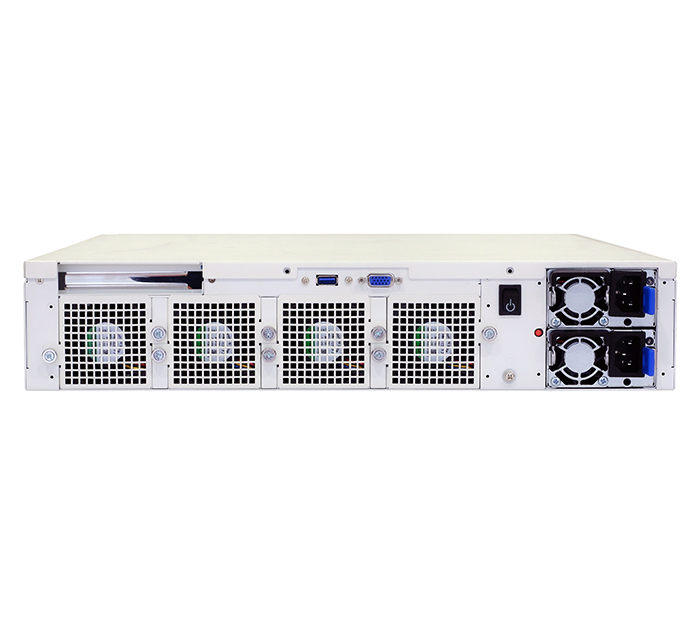

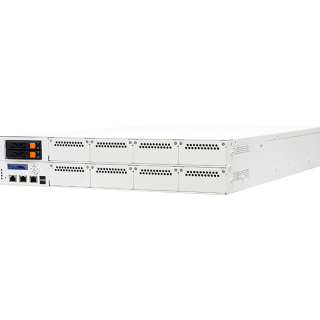

SCB-1942

The SCB-1942 is a 2U Rack-Mount hardware networking system. Supporting 4th/5th Gen Intel® Xeon® Scalable Processors (Sapphire Rapids / Emerald Rapids-SP) and Intel® C741 PCH. The new generation platform provides remarkable performance with increased CPU cores (up to 64C per CPU) and 4 Ultra Path Interconnect (UPI) links up to 16 GT/s.

The SCB-1942 supports 16x channels DDR5 register ECC RDIMM (up to 5600 MHz) and maximum memory capacity is up to 1.5TB. With 80 PCI Express lanes per CPU, the SCB-1942 can support up to 8x PCIe Gen 5 x8 slots for Network Expansion Modules for flexible port configuration, such as 1/10/40/100 Gigabit fiber, Gigabit Copper/Fiber with or without BYPASS function. The SCB-1942 Series also provides the flexibility to change the 2x PCIe slots to 1x PCIe x16 slot for standard PCIe form factor which can install off-the-shelf add-on card for additional function required. It can support 400G NIC card installed such as Mellanox PCIe 5.0 NIC. The maximum ethernet bandwidth capacity is up to 1,200GbE.
The strong IO elements of SCB-1942 include two management port (one for management, another for option IPMI function), a console port, USB ports, LEDs for power/HDD/2x GPIO. In addition, the SCB-1942 also supports two front hot-swappable 2.5” SATA HDDs/SSDs and onboard CompactFlash/m-SATA/mini-PCIe, M.2 slot for network storage application.
