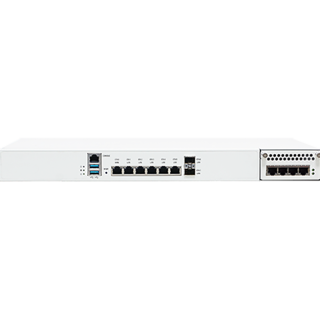

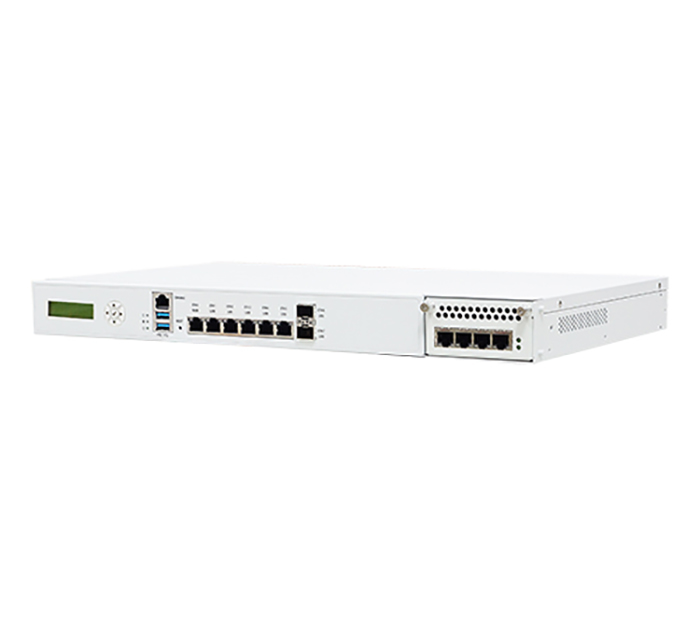

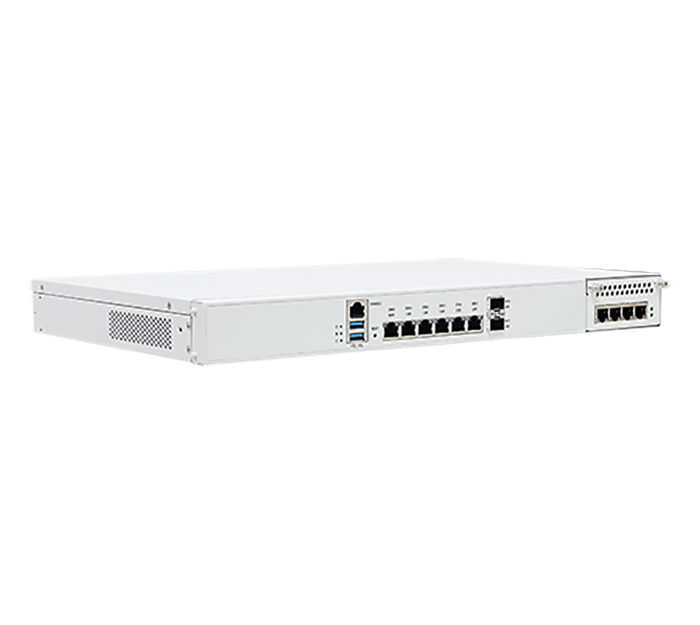

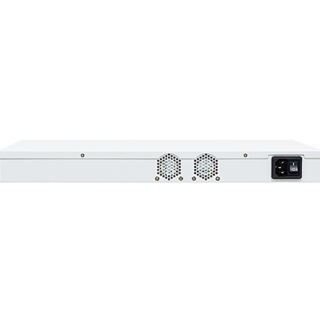

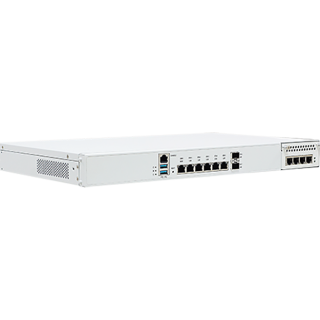

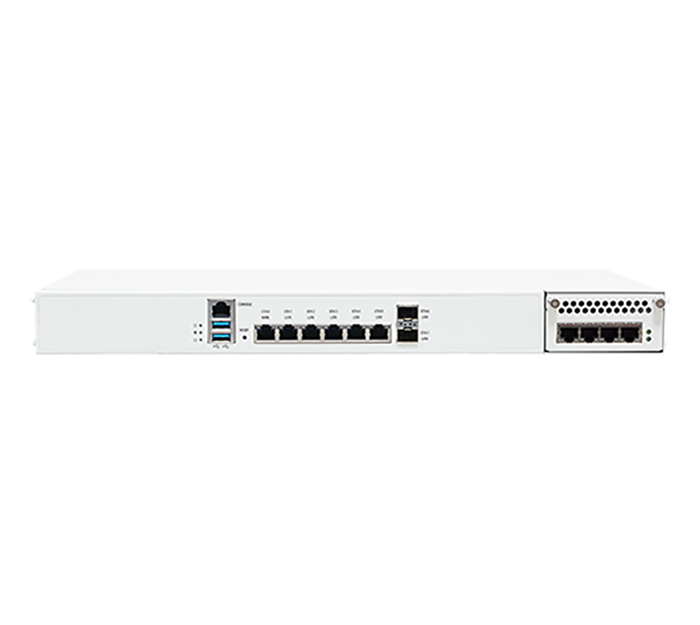

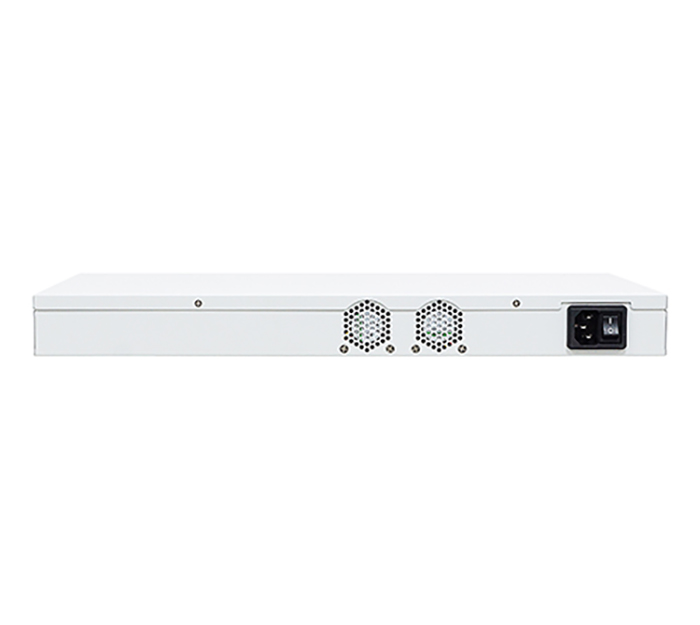

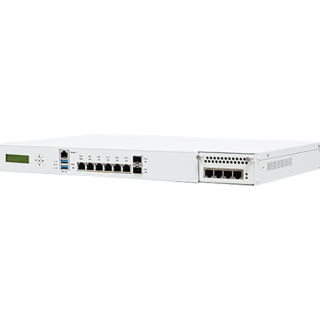

SCB-7910
2x DDR4 (ECC) SO-DIMM memory, up to 2400 MHz
Support Intel QAT (by SKU)
6x 1GbE RJ45, 2x 10GbE SFP+, 1x Expansion Module bay
1x 2.5”/3.5” SATA, 1x mSATA, 1x M.2, 1x mPCIe, 1x eMMC 5.0
The SCB-7910A is a 1U rack-mount networking system. It supports Intel® Atom® C3000R (Denverton Refresh) processors with QAT (encryption & decryption accelerator) for secure internet connection.
The SCB-7910A support 6x 1GbE RJ45 GbE and 2x 10G SFP+ ports. The SCB-7910A has 1x NIC module, 1x mPCIe and 1x M.2 slot for future expansion, e.g. 1G/10G/WiFi/LTE/5G module.
The SCB-7910A can connect with SATA/mSATA/eMMC storage. Customers can select suitable solution to meet their application.
1x mPCIe
2x 10GbE SFP+
1x Power LED
1x HDD LED
non-condensing
SCB-1953
2U Rackmount, Single Intel Xeon 6 Scalable Processor (Granite Rapids-SP/Sierra Forest), support DDR5 6400MHz RDIMM up to 2TB, 8x PCIe Gen5 x8 slots for Network Expansion Modules, 2x 2.5” hot-swappable SATA, 2x USB 3.1, 1x 10GbE MGMT, 2x 25GbE SFP28, 1x Console, 2x M.2, Redundant PSU
SCB-1946
2U Rackmount Dual AMD EPYC 9005/9004 Series Processors (Turin/Bergamo/Genoa) Network System, support DDR5 RDIMM up to 2TB, 8x PCIe Gen5 x8 Network Module Bays, 2x 2.5”, SATA HDD hot-swappable, IPMI, USB 3.0, 2x 1GbE, 1x Console, 1x mSATA/miniPCI-E, 2x M.2, Redundant PSU
SCB-1947
The SCB-1947 is a 2U Rackmount Single 4th Gen AMD EPYCTM 8004 Series Processor (Siena) Network Appliance, support 12x DDR5 RDIMM up to 1.152TB (96GB Per DIMM), 8x PCIe 5 x 8 slot for Network Expansion Module, 1x 2.5” Internal SATA HDD, IPMI, 2 USB, 2x 1GbE, 1x Console, miniPCIe, mSATA, 2 x M.2 2280, BMC, Redundant PSU
__26A15VqVxA.png)
SCB-1945
1U Rackmount Single 4th Gen AMD EPYC 8004 Series Processor(Siena) Network System, support 12 DDR5 RDIMM up to 1.152TB(96GB Per DIMM), 4x PCIe 5 x 8 slot for Network Expansion Module, 1x 2.5” Internal SATA HDD, IPMI, 2 USB 3.0, 2x 1GbE, 1x Console, mSATA, 2 x M.2 2280, BMC, Redundant PSU
__26A15pzOE9.png)
SCB-1836
1U rack-mount system with 12th/13th/14th Gen Intel Core Processor and Intel Core (BTL-S) Processor (Alder Lake-S/Raptor Lake-S/ Raptor Lake Refresh/Bartlett Lake-S) with R680E Chipset, 4x DDR5 UDIMM, 2x USB2.0, 3x SATA III, 1x mSATA, 1x mPCIe, TPM2.0, IPMI, 4x NIC module, 300W redundant PSU
SCB-1750
1U Rack-Mount, Intel® Core™ Processors (12th–14th Gen & BTL-S) with R680E PCH, 4x DDR5, 2x RJ45 GbE, 1x RJ45 Console, 2x USB, 6x I210AT GbE, 2x I210IS SFP, 4x SATA3, mSATA, NVMe M.2, 2x SlimSAS for expansion, 2x PCIe x8 slots for NIC card, 300W redundant PSU
SCB-1742
1U Rackmount, AMD AM5 Ryzen™ Embedded 7000 Series CPU with AMD B650 PCH, 4x DDR5 UDIMM up to 128GB, 1x RJ45 Console, 2x USB, 2x i210-IS SFP, 4x i210-AT GbE, 4x i226-LM 2.5GbE, 2x 2.5, M.2, 2x PCIe x8 slots for NIC cards, and 300W redundant PSU
SCB-1741
1U Rack-Mount, Intel Alder Lake-S/Raptor Lake-S processor with R680E PCH, 4x DDR4, 2x RJ45 GbE, 1x RJ45 Console, 2x USB, 6x I210AT GbE, 2x I210IS SFP, 4x SATA3, mSATA, NVMe M.2, 2x SlimSAS for expansion, 2x PCIe x8 slots for NIC card, 300W redundant PSU
