SCB-1941
8x DDR5 RDIMM memory, up to 5600 MHz
Support Intel QAT on processor
4x PCIe Gen5 Expansion Module bays
2x 2.5” NVMe, 2x M.2 2280 (PCIe4.0 x4/SATA) with VROC RAID support, 1x mSATA
IPMI v2.0
-
ADC -
UTM -
NGFW

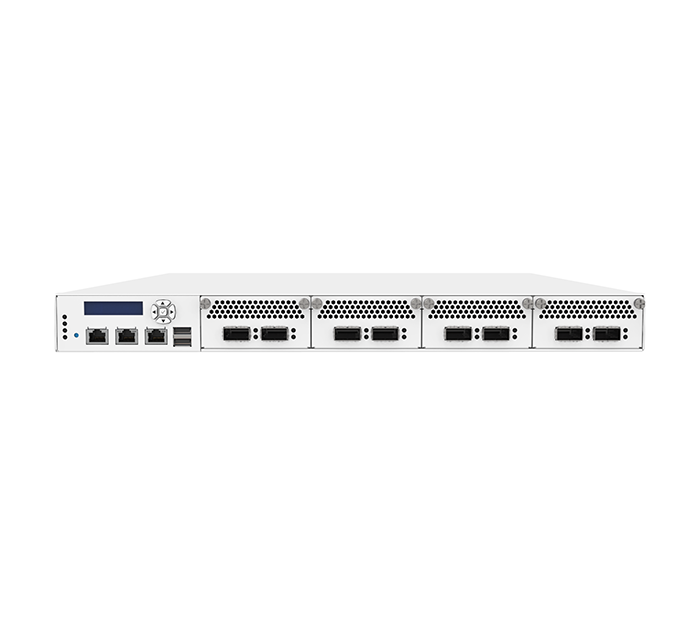

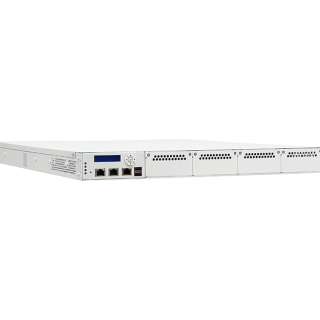

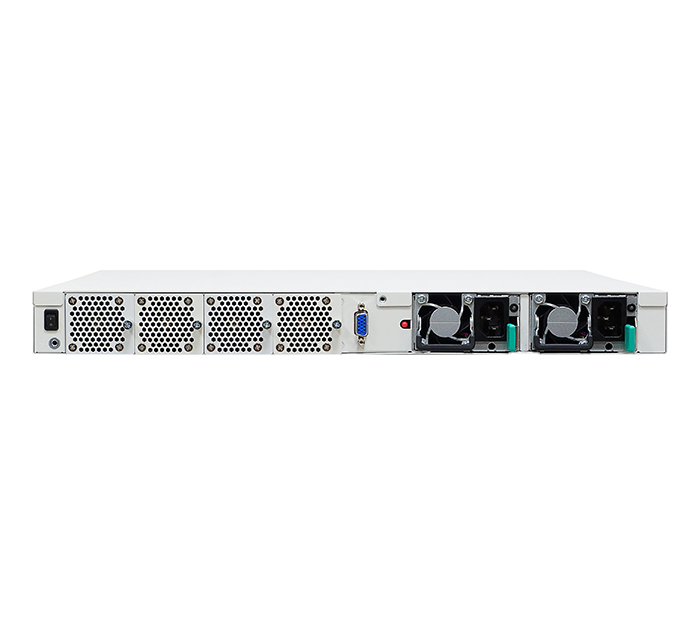

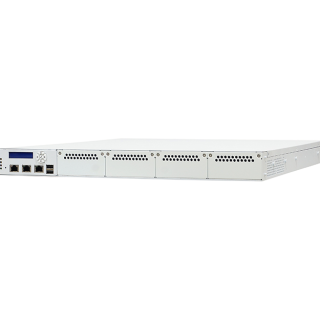

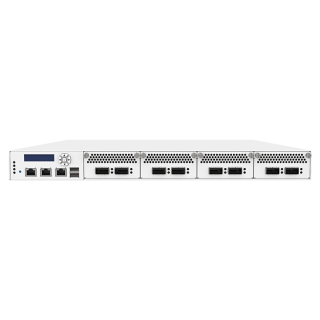

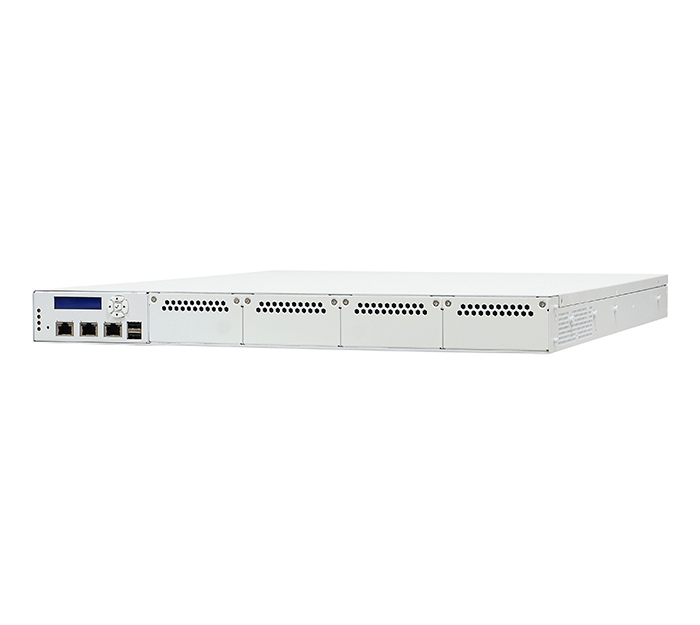

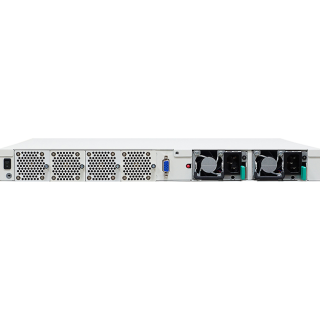

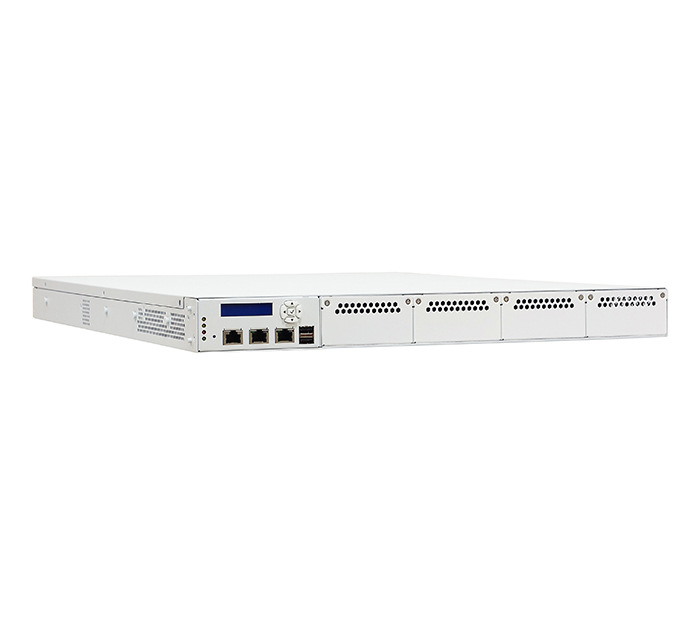

The SCB-1941 is a 2U Rack-Mount hardware networking system supporting Single 4/5th Gen Intel Xeon Scalable Processor (Sapphire Rapids-SP/ Emerald Rapids-SP) and Intel® C741 PCH. The platform provides remarkable performance with increased CPU cores (up to 64C per CPU).
The SCB-1941 supports 8x channels DDR5 RDIMM up to 5600 MHz and maximum memory capacity is up to 1TB. With 80 PCIe 5.0 lanes per CPU, the SCB-1941 can support up to 4x PCIe Gen5 x8 slots for Network Expansion Modules for flexible port configuration, such as 1/10/40/100 Gigabit fiber, Gigabit Copper/Fiber with or without BYPASS function. The SCB-1941 Series also provides the flexibility to change the 2x PCIe slots to 1x PCIe x16 slot for standard PCIe form factor which can install off-the-shelf add-on card for additional function required.
The strong IO elements of SCB-1941 include two management port (one for management, another for option IPMI function), a console port, USB ports, LEDs for power/HDD/2x GPIO. In addition, the SCB-1941 also supports two internal 2.5” NVMe SSDs, 2x M.2 and onboard m-SATA/mini-PCIe for network storage application.
2x Internal USB3.0 pin header
2x internal pin header (COM2 & COM3)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)
non-condensing
SCB-1953
2U Rackmount, Single Intel Xeon 6 Scalable Processor (Granite Rapids-SP/Sierra Forest), support DDR5 6400MHz RDIMM up to 2TB, 8x PCIe Gen5 x8 slots for Network Expansion Modules, 2x 2.5” hot-swappable SATA, 2x USB 3.1, 1x 10GbE MGMT, 2x 25GbE SFP28, 1x Console, 2x M.2, Redundant PSU
SCB-1946
2U Rackmount Dual AMD EPYC 9005/9004 Series Processors (Turin/Bergamo/Genoa) Network System, support DDR5 RDIMM up to 2TB, 8x PCIe Gen5 x8 Network Module Bays, 2x 2.5”, SATA HDD hot-swappable, IPMI, USB 3.0, 2x 1GbE, 1x Console, 1x mSATA/miniPCI-E, 2x M.2, Redundant PSU
SCB-1947
The SCB-1947 is a 2U Rackmount Single 4th Gen AMD EPYCTM 8004 Series Processor (Siena) Network Appliance, support 12x DDR5 RDIMM up to 1.152TB (96GB Per DIMM), 8x PCIe 5 x 8 slot for Network Expansion Module, 1x 2.5” Internal SATA HDD, IPMI, 2 USB, 2x 1GbE, 1x Console, miniPCIe, mSATA, 2 x M.2 2280, BMC, Redundant PSU
__26A15VqVxA.png)
SCB-1945
1U Rackmount Single 4th Gen AMD EPYC 8004 Series Processor(Siena) Network System, support 12 DDR5 RDIMM up to 1.152TB(96GB Per DIMM), 4x PCIe 5 x 8 slot for Network Expansion Module, 1x 2.5” Internal SATA HDD, IPMI, 2 USB 3.0, 2x 1GbE, 1x Console, mSATA, 2 x M.2 2280, BMC, Redundant PSU
__26A15pzOE9.png)
SCB-1836
1U rack-mount system with 12th/13th/14th Gen Intel Core Processor and Intel Core (BTL-S) Processor (Alder Lake-S/Raptor Lake-S/ Raptor Lake Refresh/Bartlett Lake-S) with R680E Chipset, 4x DDR5 UDIMM, 2x USB2.0, 3x SATA III, 1x mSATA, 1x mPCIe, TPM2.0, IPMI, 4x NIC module, 300W redundant PSU
SCB-1750
1U Rack-Mount, Intel® Core™ Processors (12th–14th Gen & BTL-S) with R680E PCH, 4x DDR5, 2x RJ45 GbE, 1x RJ45 Console, 2x USB, 6x I210AT GbE, 2x I210IS SFP, 4x SATA3, mSATA, NVMe M.2, 2x SlimSAS for expansion, 2x PCIe x8 slots for NIC card, 300W redundant PSU
SCB-1742
1U Rackmount, AMD AM5 Ryzen™ Embedded 7000 Series CPU with AMD B650 PCH, 4x DDR5 UDIMM up to 128GB, 1x RJ45 Console, 2x USB, 2x i210-IS SFP, 4x i210-AT GbE, 4x i226-LM 2.5GbE, 2x 2.5, M.2, 2x PCIe x8 slots for NIC cards, and 300W redundant PSU
SCB-1741
1U Rack-Mount, Intel Alder Lake-S/Raptor Lake-S processor with R680E PCH, 4x DDR4, 2x RJ45 GbE, 1x RJ45 Console, 2x USB, 6x I210AT GbE, 2x I210IS SFP, 4x SATA3, mSATA, NVMe M.2, 2x SlimSAS for expansion, 2x PCIe x8 slots for NIC card, 300W redundant PSU
