SCB-1935
8x channel DDR4 3200MHz memory, up to 512GB
4x PCIe x8 for Network Expansion Module
2x 2.5”HDD/SSD, 2x M.2 2280/22110 & 1x m-SATA
Support IPMI card with VGA (optional)

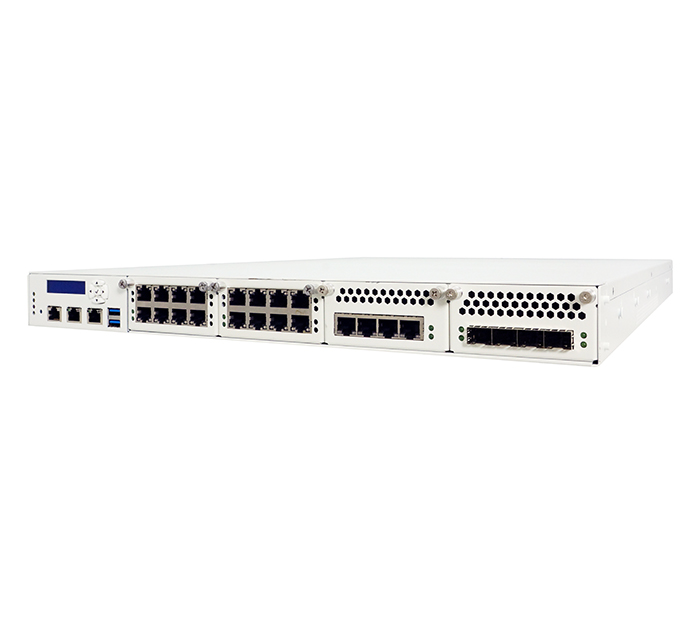

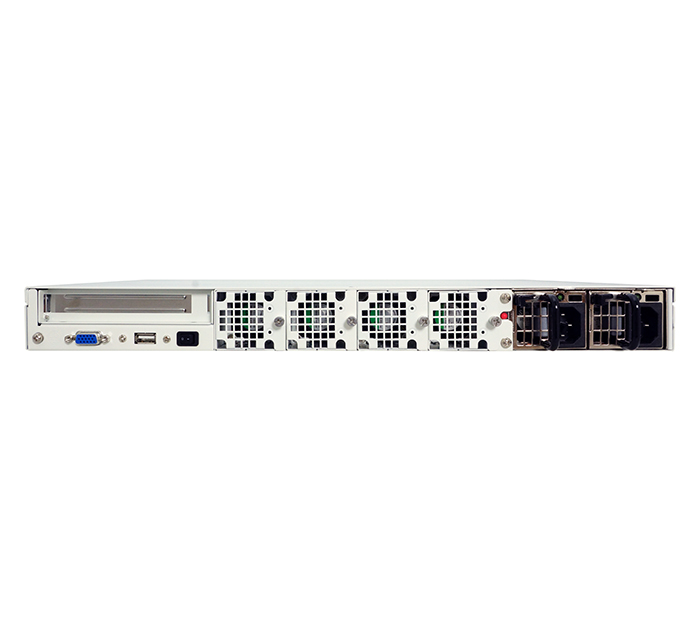

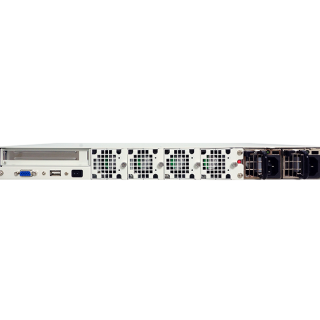

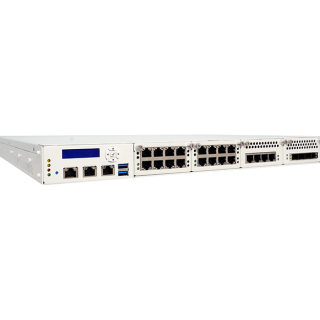

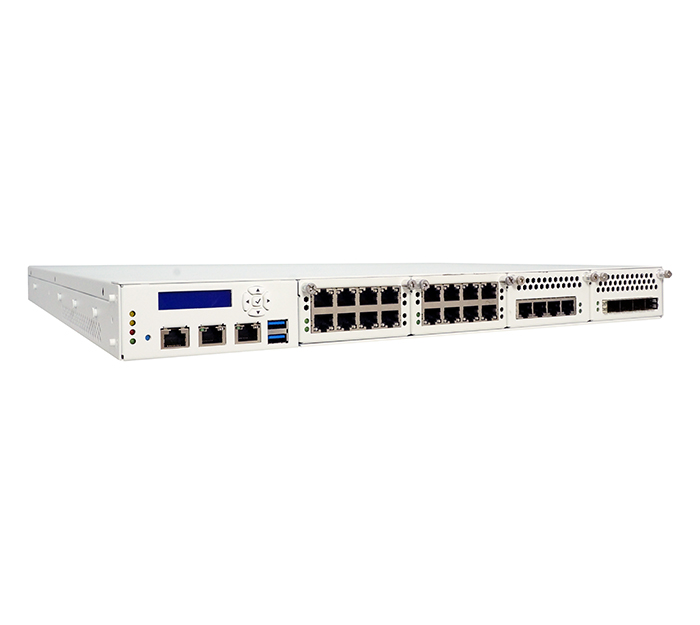

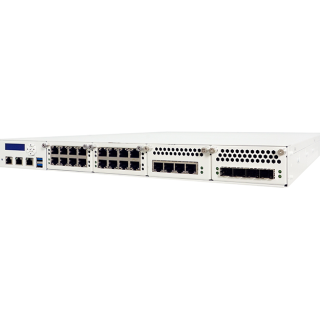

The SCB-1935 is a 1U Rack-Mount high-performance networking system. Supporting single AMD® EPYC™ 7002/7003 (Rome/Milan) Processor. Based on of AMD’s new “Zen” CPU core delivers breakthrough computing performance. CPU cores up to 32 cores, supports 64MB cache and total with 128 PCIe lanes.

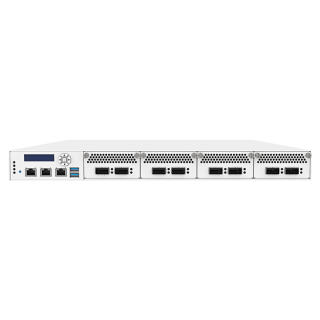

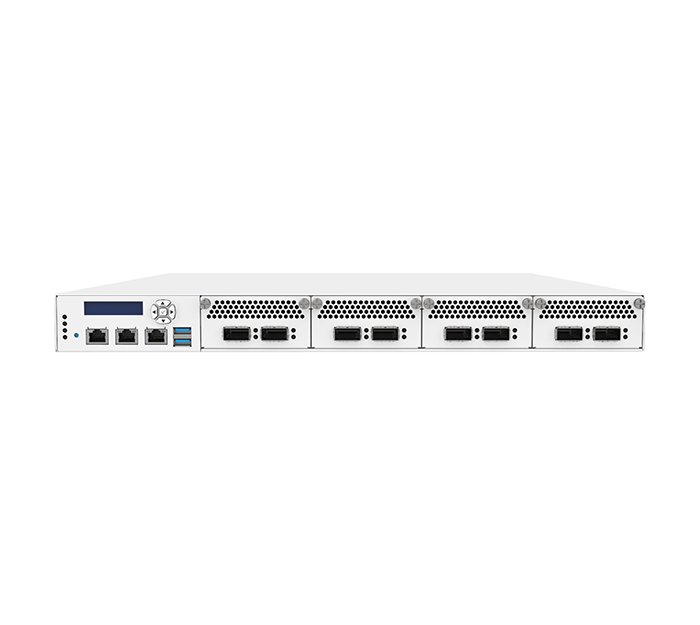

The SCB-1935 supports eight channels DDR4 register ECC DIMM (up to 2667MHz) and maximum memory capacity is up to 512GB. With 32 PCI Express lanes, the SCB-1935A can support up to 4 NIC modules, support multiple Ethernet module bays for flexible port configuration; such as 1/10/40 Gigabit fiber, Gigabit copper with BYPASS function or not. The maximum capable Ethernet port is up to 32 GbE ports. SCB-1935B supports up to 2 PCIe x16 slots for single/dual port 100 Gigabit Ethernet Adapter card in front and 1 PCIe x16 slot in rear.
The strong IO elements of SCB-1935 include two management Ethernet port (one for management, another for option IPMI function), a console port, two USB 3.0 ports, a Graph LCD module with keypad (5 key), LEDs for power/ HDD/ 2 x GPIO. In addition, the SCB-1935 also supports 1x 3.5” or 2x 2.5” SATA HDDs/SSDs, onboard one m-SATA and two M.2 2280/22110 slots for basic network storage application.
up to 64GB per DIMM
1x PCIe Gen3 x16 slot
4x PCIe x8 for Network Expansion Module
2x M.2 socket by PCIe Gen3 x4
1x internal USB 2.0 (5x2 pin header)
supports USB DOM
1x internal 5x2 pin header (COM2)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)
(17.3”W x 23.6”D x 1.73”H)
non-condensing
