Performance Network Appiance

SCB-1933

Features

Support 3rd Gen Intel Xeon® Scalable Processor(Ice Lake-SP), Socket P+, LGA4189
Support up to 3TB DDR4 RDIMM/LRDIMM 3200MHz & Intel® OptaneTM Persistent Memory 200 series
Max support 8x PCIe x8 slots for Network Expansion Module
Support BMC/IPMI & hardware One-Key Bypass function
IPMI v2.0, Intel PFR / AEWIN TSB module

Add to Compare Add to Inquiry

Download

Description
Specification
Related Products

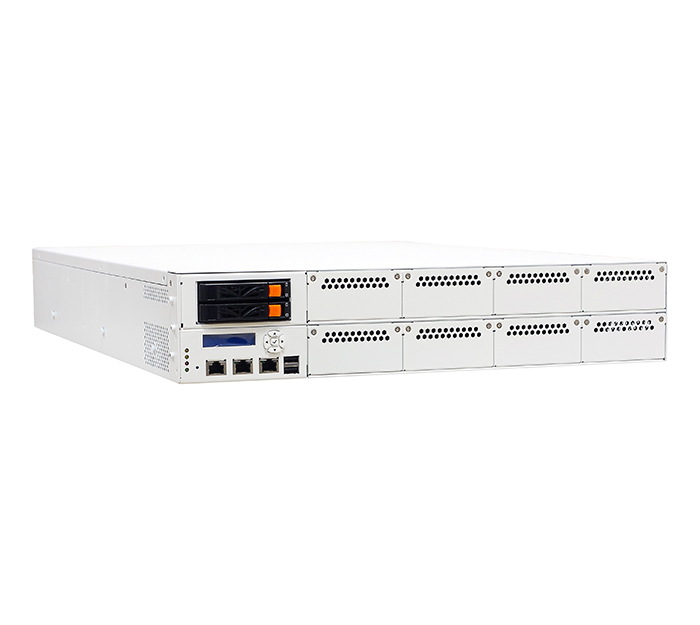

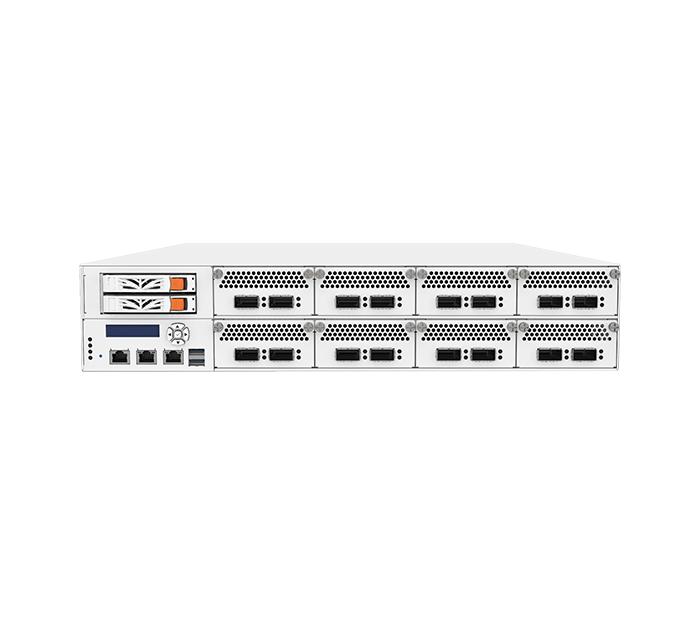

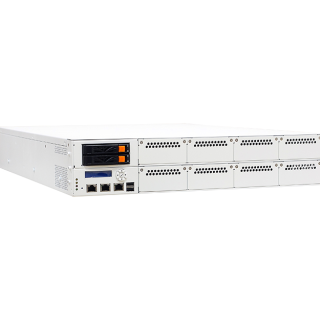

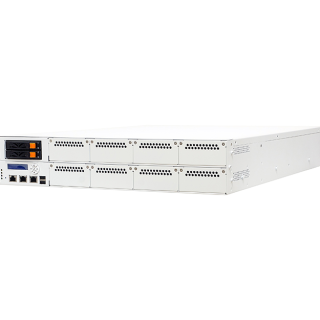

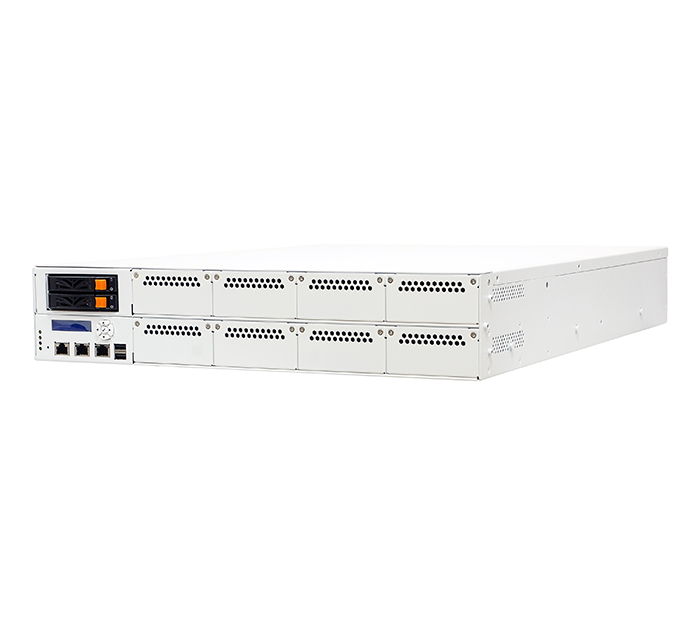

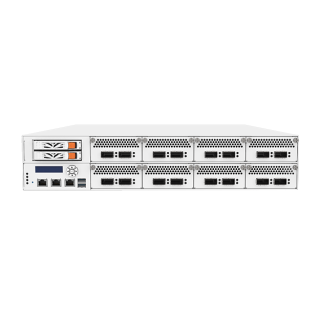

The SCB-1933 is a 2U Rack-Mount hardware networking system. Supporting Intel® Whitley/Ice Lake-SP with efficient performance processor Xeon® scalable series and Intel® C621A PCH (codenamed Lewisburg). The new generation platform provides higher performance and increased CPU cores up to 40 cores. The SCB-1933 supports 8x channels DDR4 RDIMM/LRDIMM (up to 3200 MHz) and Intel Optane PMem to have Max. capacity of 3TB. With 64 PCI Express lanes per CPU, the SCB-1933 can support up to 8x PCIe x8 slots for Network Expansion Module. Multiple different ethernet modules are available for flexible port configuration, such as 1/10/40/100 Gigabit fiber and Gigabit Copper/Fiber with or without BYPASS function.

The strong IO elements of SCB-1933 include two management port (one for management, another for option IPMI function), a console port, USB ports, LEDs for power/ HDD/ 2x GPIO. In addition, the SCB-19331 also supports two front-access easy-swappable 2.5” SATA HDDs/SSDs and onboard Compact Flash™/m-SATA/miniPCI-E, M.2 slot for network storage application.

Processor System

CPU

Support single 3rd Gen Intel Xeon Scalable Processor(Ice Lake-SP), Socket P+, LGA4189

Chipset

Intel® Lewisburg C621A PCH (by SKUs)

BIOS

AMI® UEFI BIOS

Memory

Technology

Total 8 DIMMs (8 channels per CPU, 1x DIMM per channel, 8 DIMMs per CPU)
--DDR4 RDIMM/LRDIMM up to 3200 MHz, up to 256GB per DIMM
--Intel® Optane™ DC Persistent Memory (DCPMM) 200 Series module, up to 512GB per DIMM

Capacity

RDIMM/ LRDIMM + DCPMM up to total 3TB

Expansion

Onboard Expansion Slots

- 6x PCIe Gen4 x8 slots + 2x PCIe Gen3 x8 for NIC modules
- 2x M.2, one CF/mSATA/miniPCI-E,
- 2x internal SlimSAS 4i connector
- 1x rear PCIe x8 slot for Standard PCIe card (Optional)

Ethernet

GbE Ethernet

2x RJ45 1GbE ports in system front

I/O

USB

2x external USB 2.0 port
1x internal USB 3.0 pin header

Serial

1x RJ45 Console port (COM1)
2x internal pin header (COM2 & COM3)

Storage

SATA

Support 1x 2.5” SATA HDD or SSD

CompactFlash Socket

Either for CompactFlash/mSATA/miniPCI-E (Co-Layout)

M.2

2x M.2 2280 socket (M-Key)

Power Supply

Watt

550W Redundant power supply (CRPS), 12V output / RoHS

Mechanical and Environment

Form Factor

2U Rackmount

LED

1x Power LED (Green)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)

Dimension (W x D x H)

440mm(W) x 600 mm(D) x 44mm(H)

Operating Temperature

0 ~ 40°C

Storage Temperature

-20 ~ 75°C

Humidity

5 ~ 95% relative humidity, non-operating,
non-condensing

Weight

19 kg

Certification

CE/FCC
