Performance Network Appiance

SCB-1932

Features

Support Dual 3rd Gen Intel® Xeon® Scalable Processors, LGA4189
Support up to 6TB DDR4 RDIMM/LRDIMM 3200MHz & Intel® Optane Persistent Memory 200 series
Support Intel QAT (by SKU)
2x RJ45 1GbE ports, 8x PCIe Gen4 Expansion Module bays, or 2x FHFL PCIe Gen4x16 slots & 4x PCIe Gen4 Expansion Module bays

Add to Compare Add to Inquiry

Download

Description
Specification
Related Products

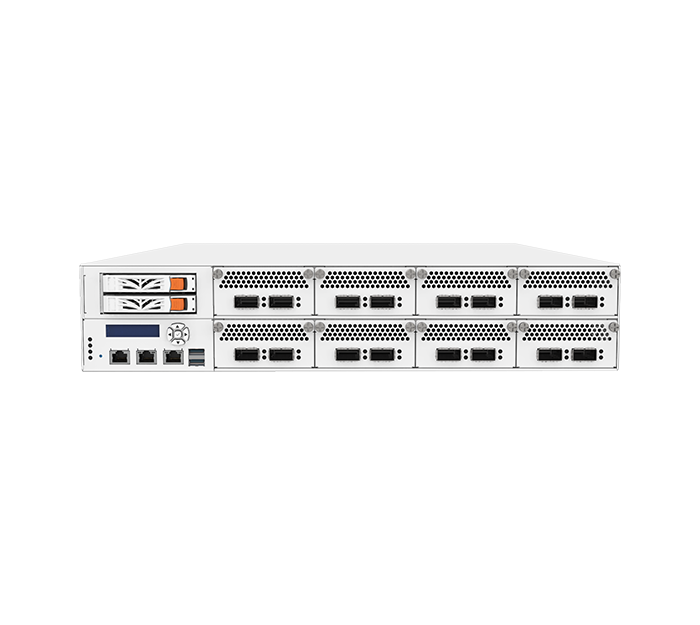

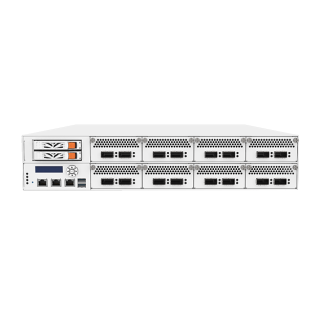

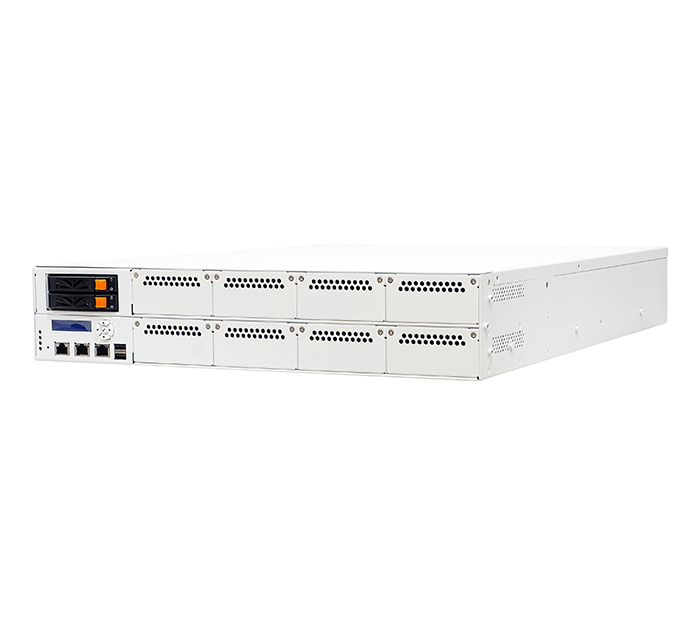

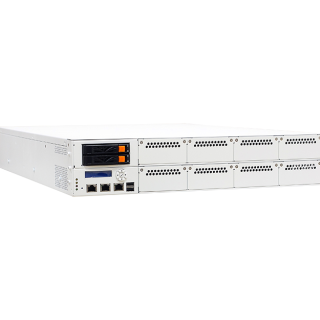

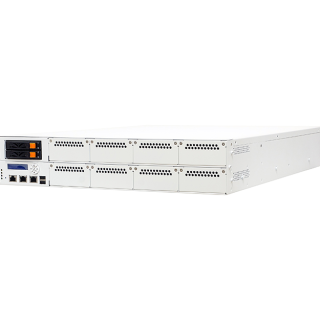

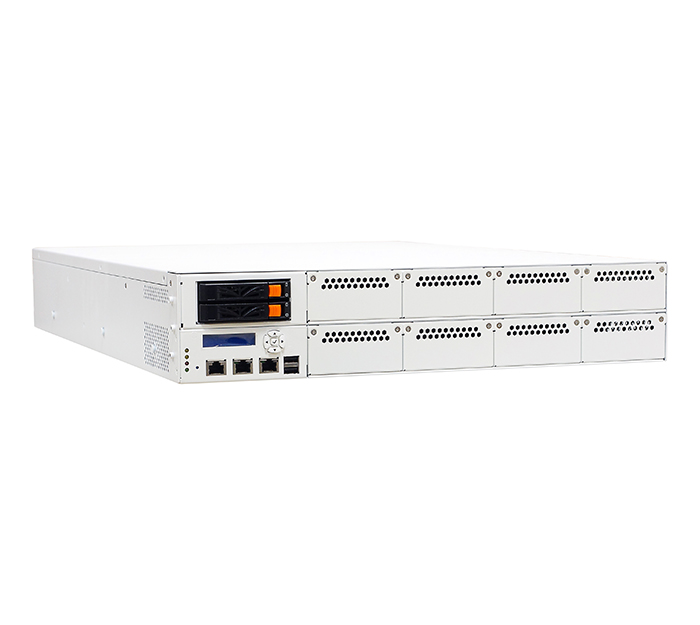

The SCB-1932 is a 2U Rack-Mount hardware networking system. Supporting Intel®Whitley/Ice Lake-SP with efficient performance processor Xeon® scalable series and Intel® C621A/C627A PCH (codenamed Lewisburg). The new generation platform provides higher performance and increased CPU cores up to 40 cores, 3 Ultra Path Interconnect (UPI) links up to 11.2 GT/s. The SCB-1932 supports 8x channels DDR4 RDIMM/LRDIMM (up to 3200 MHz) and Intel Optane PMem to have Max. capacity of 6TB. With 64 PCI Express lanes per CPU, the SCB-1932 can support up to 8x Network Expansion Modules. Multiple different ethernet modules are available for flexible port configuration, such as 1/10/40/100 Gigabit fiber and Gigabit Copper/Fiber with or without BYPASS function. The maximum ethernet bandwidth capacity is up to 1,000GbE.

The strong IO elements of SCB-1932 include two management port (one for management, another for option IPMI function), a console port, USB ports, LEDs for power/ HDD/ 2x GPIO. In addition, the SCB-1932 also supports two front-access easy-swappable 2.5” SATA HDDs/SSDs and onboard CompactFlash/m-SATA/miniPCI-E, M.2 slot for network storage application.

Processor System

CPU

Support Dual 3rd Gen Intel Xeon Scalable Processor(Ice Lake-SP), Socket P+,4189pin

Chipset

Intel® Lewisburg C621A/C627A PCH (by SKUs)

System Bus

UPI up to 11.2GT/s

BIOS

AMI® UEFI BIOS

Memory

Technology

Total 16 DIMMs (8 channels per CPU, 1x DIMM per channel, 8 DIMMs per CPU)
--DDR4 RDIMM/LRDIMM up to 3200 MHz, up to 256GB per DIMM
--Intel® Optane™ DC Persistent Memory (DCPMM) 200 Series module, up to 512GB per DIMM

Capacity

RDIMM/ LRDIMM + DCPMM up to total 6TB

Expansion

Onboard Expansion Slots

8x PCIe Gen4 x8 slots for NIC module
2x M.2、one CF/mSATA/miniPCI-E, 2x internalSlimSAS 8i connector
1x rear PCIe x8 slot for Standard PCIe card (Optional)

Ethernet

GbE Ethernet

2x RJ45 1GbE portsin systemfront

I/O

USB

2x external USB 2.0 port
1x internal USB 3.0 pin header

Serial

1x RJ45 Console port (COM1)
2x internal pin header (COM2 & COM3)

Storage

SATA

Support 1x 3.5” or 2x 2.5” SATA HDD or solid state drives
1x mSATA socket

CompactFlash Socket

Either for CompactFlash/mSATA/miniCPI-E (Co-Layout)

mSATA

2x M.2 2280 socket (M-Key)

Power Supply

Watt

850W/1300W/1600W Redundant power supply (CRPS), 12V output / RoHS

Mechanical and Environment

Form Factor

2U Rackmount

LED

1x Power LED (Green)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)

Dimension (W x D x H)

440mm(W) x 600 mm(D) x 88mm(H)

Operating Temperature

Operating: 0 ~ 40°C ( 32 ~ 104°F )

Storage Temperature

-20 ~ 75°C (-4 ~ 167°F)

Humidity

5 ~ 95% relative humidity, non-operating,
non-condensing

Weight

20 kg

Certification

CE/FCC
