SCB-1833
Support 2x PCIe Gen4 Expansion Modules which support 128Gb bandwidth and 2x PCIe Gen3 Expansion Modules
Support TPM/trust secure boot (BIOS recovery) & IPMI with Dying Gasp feature

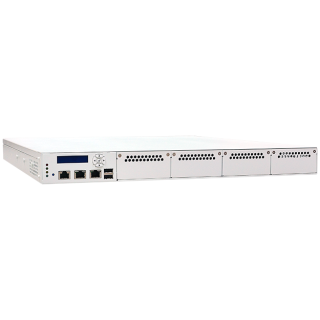

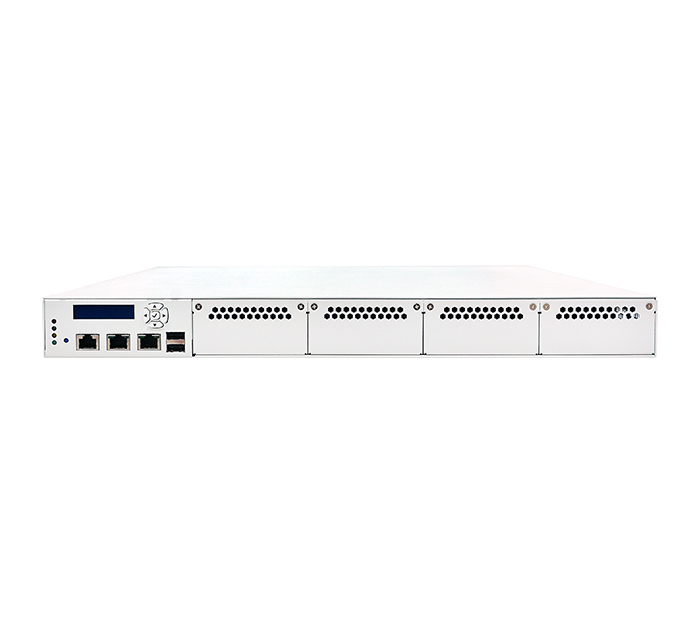

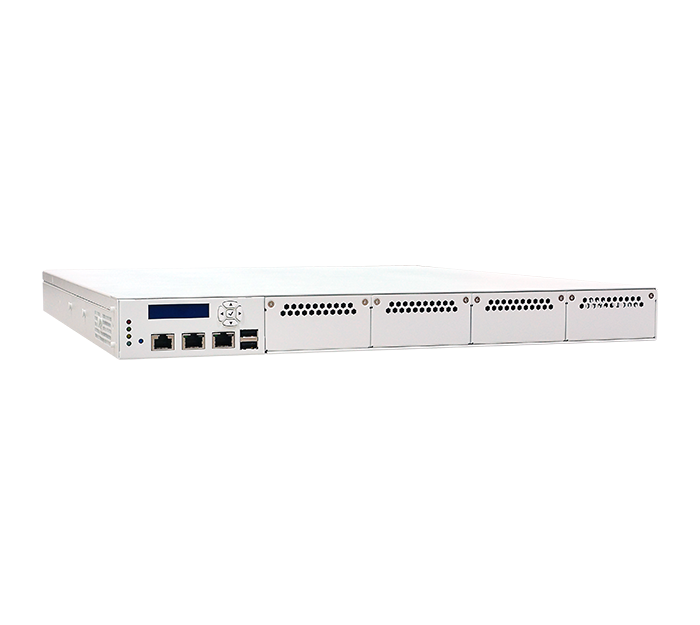

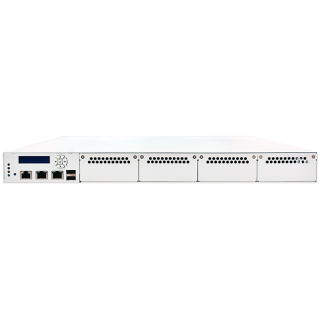

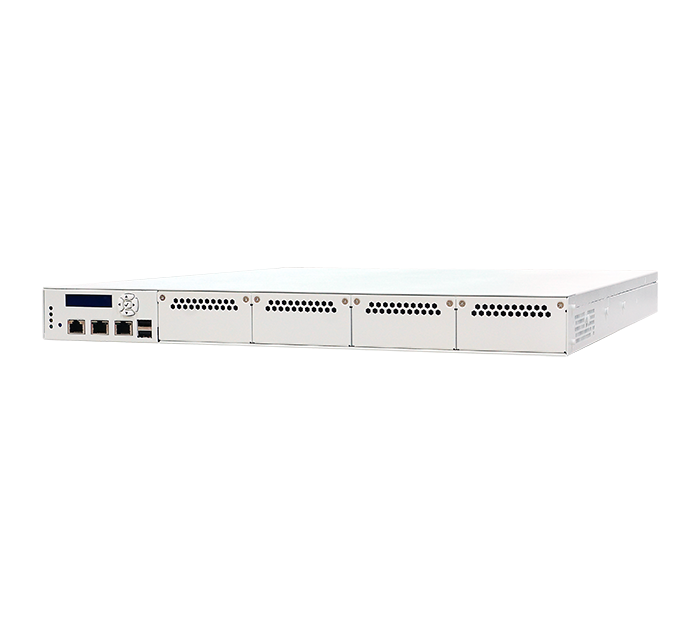

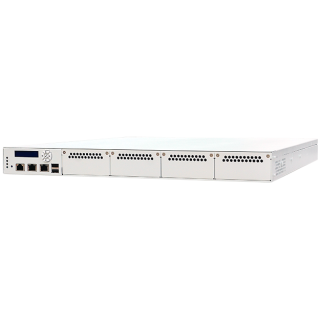

The SCB-1833 is a 1U Rack-Mount high-performance networking system, that supports a single AMD ® Ryzen™ 5000/3000 series CPU with X570 FCH. It is based on 7nm Zen2 architecture to deliver breakthrough computing performance with support for CPU up to 8 cores / 16 Threads with PCIe Gen4 support.
The SCB-1833 supports 4x DDR4 ECC DIMM (up to 3200MHz) in dual channels and maximum memory capacity up to 128GB. The SCB-1833 can support up to 4 NIC modules, support multiple Ethernet module bays for flexible port configuration, such as 1/10/ 25/40/100 Gigabit fiber or copper with optional Bypass function. The maxi mum capable Ethernet port is up to 32x 1GbE ports. SCB-1833 sup ports standard FHHL PCIe slot for RAID or others PCIe device usage in rear.
The strong IO elements of SCB-1833 include two management Ether net port (one for management, another for optional IPMI function), optional TPM2.0 or Trusted Secure Boot module, a console port, two USB 3.0 ports, a Graphic LCD module with keypad (5 key), LEDs for power/ HDD/ 2 x GPIO, and one miniPCIe slot for WiFi or other modules. In addition, the SCB-1833 also supports one 3.5” or two 2.5” SATA HDDs/SSDs, onboard one mSATA slot for basic storage application.

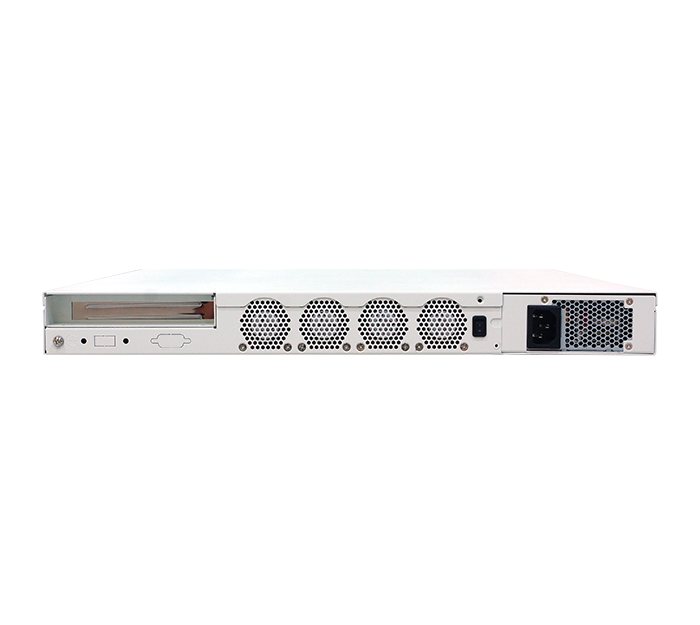

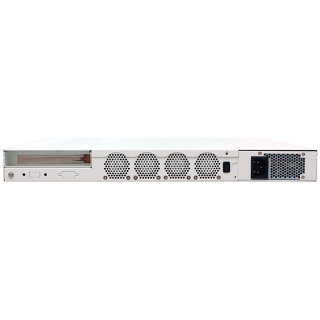

Rear side : 1x PCIe x8 slot (x4 signal)
Inside : 1x mPCIe
2x USB 3.0 pin header
1x Power LED (Yellow)
1x HDD LED (Green)
non-condensing
