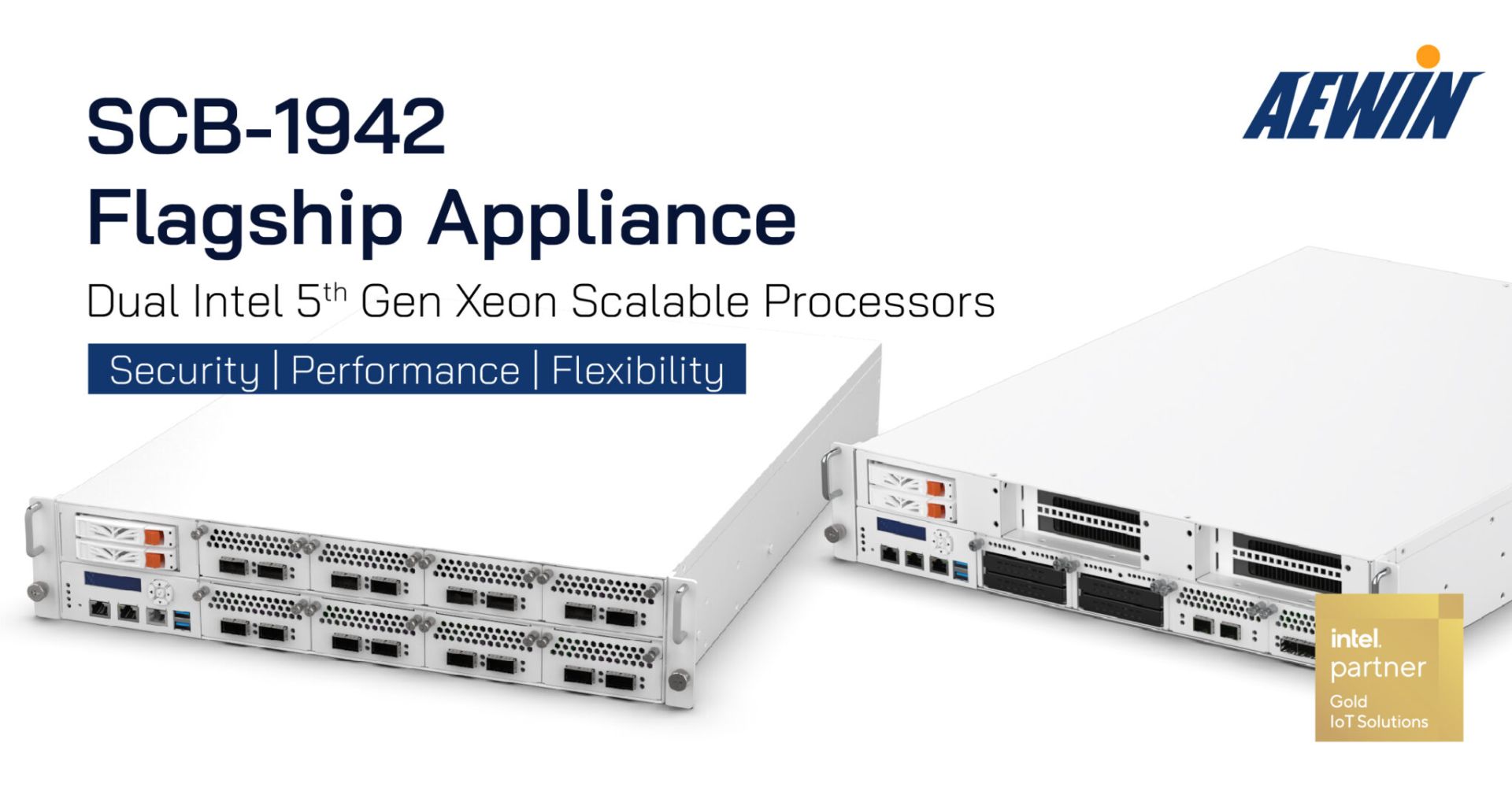

AEWIN SCB-1942 Flagship Appliance, Powered by Dual Intel® 5th Gen Xeon Scalable Processors

Network applications are essential for modern businesses, but they also pose many challenges and requirements for the network infrastructure. Some of these challenges and requirements are:

– Security: Network applications need to be protected from cyberattacks. Network security solutions, such as next-generation firewalls (NGFW), intrusion detection systems (IDS), intrusion prevention systems (IPS), and unified threat management (UTM), can help prevent, detect, and mitigate these threats.

– Performance: Network applications need to deliver fast and reliable service to the end-users, especially for latency-sensitive and bandwidth-intensive applications, such as video conferencing, online gaming, and cloud computing. Network performance solutions, such as application delivery controllers (ADC), can help optimize the network traffic and improve the user experience.

– Flexibility: Network applications need to adapt to the changing business needs and demands, such as scaling up or down, adding new features or services, or migrating to different platforms or locations. Network flexibility solutions, such as software-defined wide area network (SD-WAN), can help simplify the network management and configuration, and enable dynamic and intelligent routing of network traffic.

Deploying and maintaining these network solutions can be complex and costly. That’s why AEWIN SCB-1942 is the ideal solution for business that need a powerful and versatile network appliance that can support multiple network functions in a single device.

The SCB-1942A is a 2U, 2-socket network computing platform having 16x memory socket of DDR5 up to 5600MHz, and 8x PCIe 5.0 expansion slots for AEWIN wide coverage NIC cards with 1G/10/25/40/100G copper/fiber interfaces or other Accelerators & NVMe SSDs for flexible functionality enhancement. The SCB-1942A provides the flexibility to change the 2x PCIe slots to 1x PCIe x16 slot for standard PCIe form factor which can install off-the-shelf add-on card for additional function required. It can support 400G NIC card installed such as Mellanox PCIe 5.0 NIC.

Regarding the reliability and security, the SCB-1942 is with CRPS and supports OT006 module for AEWIN Trusted Secure Boot (TSB V2 module) to deliver firmware resiliency by monitoring, verifying, and automatically correction. In addition, the system supports TPM 2.0 module to protect its start-up process. Furthermore, there are enhanced Intel® QuickAssist Technology (Intel® QAT) to accelerate data encryption and compression for secure content delivery.

Virtualization is supported to accomplish ultimate utilization and great scalability which make SCB-1942 a perfect network appliance. The excellent performance, rich I/O, advanced security technologies, and extraordinary expandability would not compromise the size of the SCB-1942C. The SCB-1942C is a 2U platform with short-depth design of 600mm for easy deployment to accomplish real-time applications at edge. Moreover, SCB-1942C supports 2x dual-width PCIe x16 slots for GPU/FPGA to enable further intelligent applications. In addition to the features above, the SCB-1942 series support 10 SATA which make it also suitable for various kinds of storage applications.

Learn more about AEWIN SCB-1942 High-Performance Network Appliance: (video)

• SCB-1942A: 2U Network Appliance with dual Intel 5th Gen Xeon Scalable Processors (Emerald Rapids-SP), total 8x PCIe Gen5 slots for NICs, Accelerators & NVMe SSDs
• SCB-1942C: 2U Edge Server with dual Intel 5th Gen Xeon Scalable Processors (Emerald Rapids-SP), 2x dual slot Gen5 x16 FHFL GPU cards, 4x PCIe Gen5 x8 slots for NICs, Accelerators & NVMe SSDs
