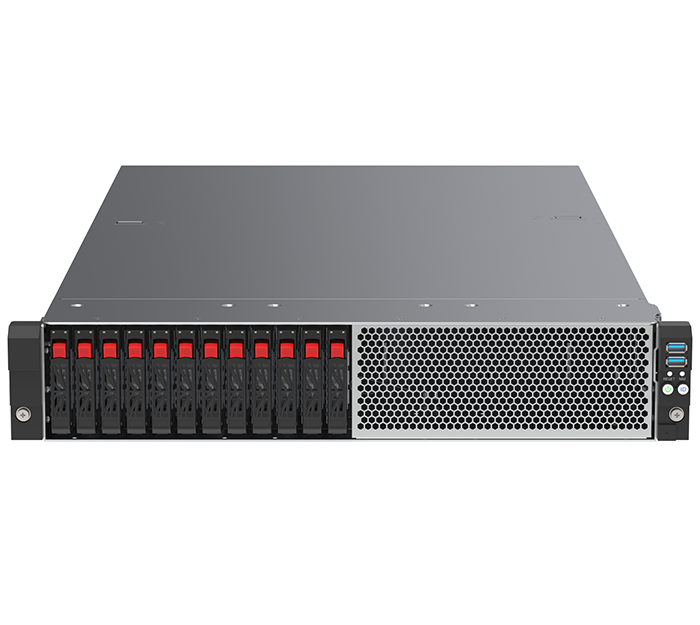

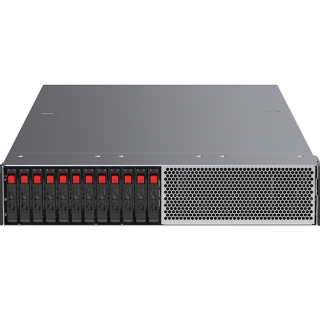

AI Server
BG28-A10710
Features
Single AMD EPYC™ 9006 series Server CPUs, LGA7536 socket, up to 600W
16x DDR5 RDIMMs/MRDIMMs, up to 8000/12800MT/s
4x PCIe Gen6 x16 slots for DW FHFL GPUs
4x E3.S Gen6 SSD bays, 2x M.2 2280 M Key slots
Modular DC-SCM2 form factor equipped with Aspeed AST2700 BMC
(1+1) 3200W 80+ Titanium redundant power supplies
16x DDR5 RDIMMs/MRDIMMs, up to 8000/12800MT/s
4x PCIe Gen6 x16 slots for DW FHFL GPUs
4x E3.S Gen6 SSD bays, 2x M.2 2280 M Key slots
Modular DC-SCM2 form factor equipped with Aspeed AST2700 BMC
(1+1) 3200W 80+ Titanium redundant power supplies
-
Edge AI
Built for next-generation AI workloads, this server powers LLM and generative AI training and inference with multi-GPU acceleration and ultra-fast NVMe storage. It enables real-time analytics, HPC, and large-scale data processing, while delivering high performance and scalability for cloud, virtualization, and media applications.
Form Factor
Form Factor
2U Rackmount Chassis
Dimensions (WxHxD)
438mm (W) x 87mm (H) x 830mm (D)
Processor
CPU Socket
Single-socket AMD EPYC™ “Venice” (LGA7536)
CPU Support
AMD EPYC™ 9006 series Server CPUs, up to 600W
GPU Support
Max GPU Count
4x Dual-Width, up to 600W
Interconnect
FHFL PCIe Gen6 x16 slots
System Momery
DIMM Slots
16 DIMM Slots
Type
DDR5 RDIMM/MRDIMM
Speed (MT/s)
RDIMM up to 8000 MT/s (1DPC)
MRDIMM up to 12800 MT/s (1DPC)
MRDIMM up to 12800 MT/s (1DPC)
Drive Bays
Front Bays
4x Hot-swap E3.S PCIe Gen6 x4 NVMe with tool-less drive trays
Internal Bays
2x M.2 2280 PCIe Gen4 x2 NVMe (OS drive)
Expanstion Slots
Default Config
4x FHFL PCIe Gen6 x16 slots
1x PCIe Gen6 x16 OCP 3.0 slot
1x PCIe Gen6 x16 OCP 3.0 slot
Input / Output
Management
1x 1000Base-T dedicated port via DC-SCM (選填 有用DC-SCM才寫)
USB / Display
1x USB 3.0 (Front)
1x UART (USB form factor) (Front)
1x Mini DP (Rear)
1x UART (USB form factor) (Front)
1x Mini DP (Rear)
System Cooling
Air Cooling
5x 8080 Fan for Air Cooling
Power Supply
Configuration
(1+1) 3200W Redundant Power Supplies
Rating
80+ Titanium Efficiency
System BIOS
BIOS Type
AMI UEFI BIOS
Management
BMC
Integrated Aspeed AST2700 BMC
Protocol
IPMI 2.0, Redfish, and web-based GUI
Monitoring
Real-time monitoring of CPU/GPU temperatures, fan speeds, and system health
ROT
ROT via AST1060
Weight
Net Weight
Approx. 45-60 kg (depending on configuration)
Operating Environment
Temperature
0°C to 35°C (32°F to 95°F)
Humidity
8% to 90% non-condensing
Note
Designed for standard enterprise data center environments.
