General Purpose Server
BAS-6101B
Features
Support most advanced AMD Bergamo/Genoa platform.
Support 24x DDR5 RDIMMs & 3DS RDIMMs.
Support 8x PCIe slots (e.g. GPU cards for AI applications) and 1x OCP3.0 slot for LAN port expansion.
Support 1x RJ45 GbE for IPMI (ASPEED 2600).
Support 12x 3.5" Hot-pluggable HDDs and 2x rear 2.5" Hot-pluggable SSDs
Support 24x DDR5 RDIMMs & 3DS RDIMMs.
Support 8x PCIe slots (e.g. GPU cards for AI applications) and 1x OCP3.0 slot for LAN port expansion.
Support 1x RJ45 GbE for IPMI (ASPEED 2600).
Support 12x 3.5" Hot-pluggable HDDs and 2x rear 2.5" Hot-pluggable SSDs
-
Cloud -
Edge AI -
Storage

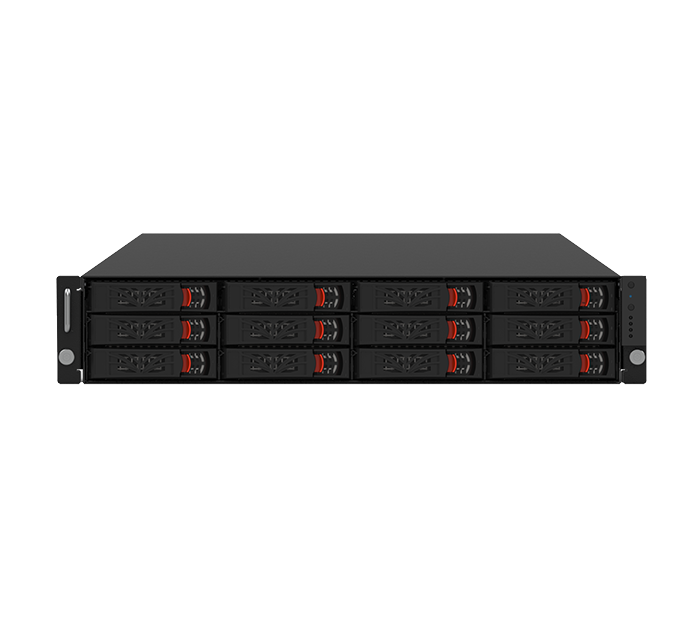

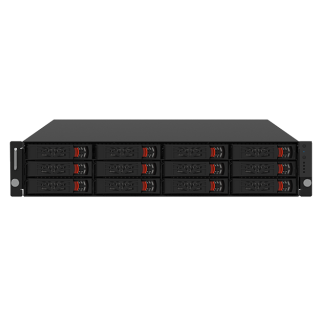

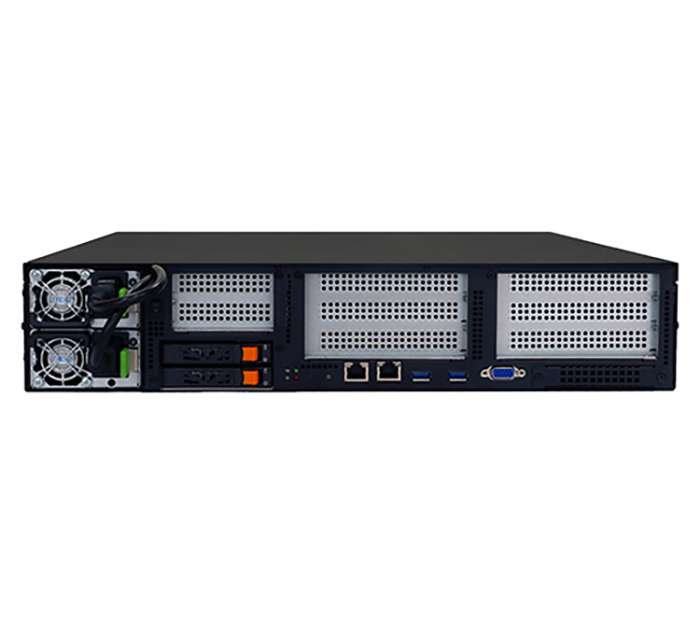

BAS-6101B is a 2U storage server. It supports the most advanced AMD Bergamo/Genoa processor, 24x DDR5 slots, 12x 3.5" hot-pluggable HDDs, 2x 2.5" hot-pluggable SSDs, 8x PCIe slots & 1x OCP slot. It also supports IPMI function to simplify local/remote management. AEWIN develop BAS-6101A for network security gateway to match AI or Telcom customers requirement. Customers can install different add-on cards (e.g. GPU/AI card, QAT card, encryption card, smart NIC or accelerator card) to satisfy their biz needs.
Processor System
CPU
AMD SP5 Genoa/Bergamo
Chipset
SOC Integrated
BIOS
AMI UEFI BIOS
Memory
Technology
Up to 24x DDR5 RDIMM
Capacity
Up to 2.2TB (24Gb 96GB, non 3DS),
Up to 12TB (3DS, to be validated by request)
Up to 12TB (3DS, to be validated by request)
Ethernet
GbE Ethernet
1x 1Gb/s RJ45 IPMI management port through AST2600 BMC
Expansion
Onboard Expansion Slots
-Up to 2x dual width FHFL PCIe Gen5 x16 + Up to 2x single width FHHL PCIe Gen5 x16
or up to 4x single width FHFL PCIe Gen5 x16 + up to 2x single width FHHL PCIe Gen5 x16
-Up to 2x HHHL PCIe Gen4 x8
-1x OCP3.0 SFF Gen5 x16
or up to 4x single width FHFL PCIe Gen5 x16 + up to 2x single width FHHL PCIe Gen5 x16
-Up to 2x HHHL PCIe Gen4 x8
-1x OCP3.0 SFF Gen5 x16
Storage
SATA
12x 3.5" Hot-pluggable HDDs
2x 2.5" Hot-pluggable SSDs
2x 2.5" Hot-pluggable SSDs
M.2
2x M.2 2280/ 22110 M key
I/O
USB
2x USB3.0 connector
1x USB3.0 + 1x USB2.0 internal pin header
1x USB3.0 + 1x USB2.0 internal pin header
Serial
COM1: 1x RJ45 Console
COM2 &3 pin header
COM2 &3 pin header
Display
1x VGA
Power Supply
Watt
CRPS Redundant 1600W
Mechanical and Environment
Form Factor
2U Rackmount Server
LED
1x UID Button/LED (Blue)
1x Status LED (Red/Green)
1x Power LED (Green)
1x GPIO LED (Defined by customer)
1x Reset Button
1x Status LED (Red/Green)
1x Power LED (Green)
1x GPIO LED (Defined by customer)
1x Reset Button
Dimension (W x D x H)
438mm(W) x 700mm(D) x 88 mm(H)
Operating Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
5 ~ 95% relative humidity, non-operating,
non-condensing
non-condensing
Weight
21 kg
Certification
CE/FCC
Packing List
1x BAS-6101B
2x power cord
2x power cord
