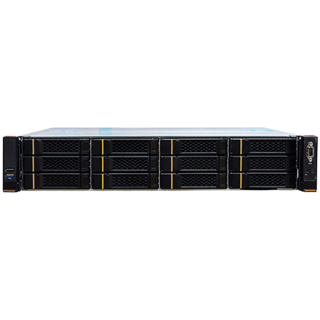

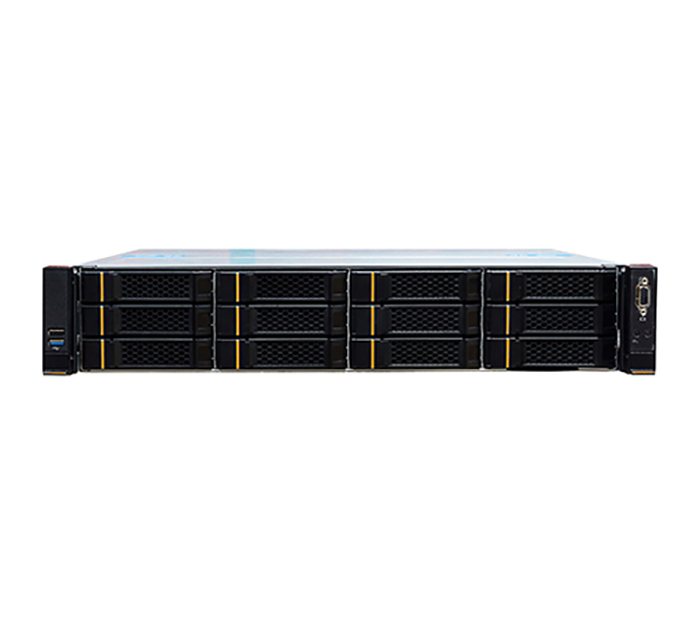

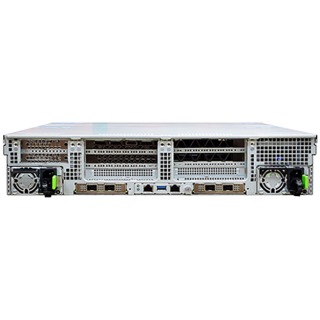

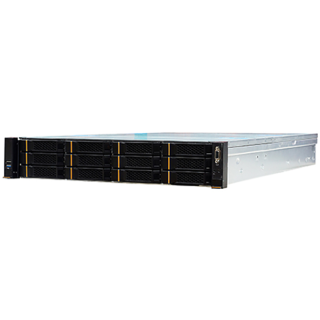

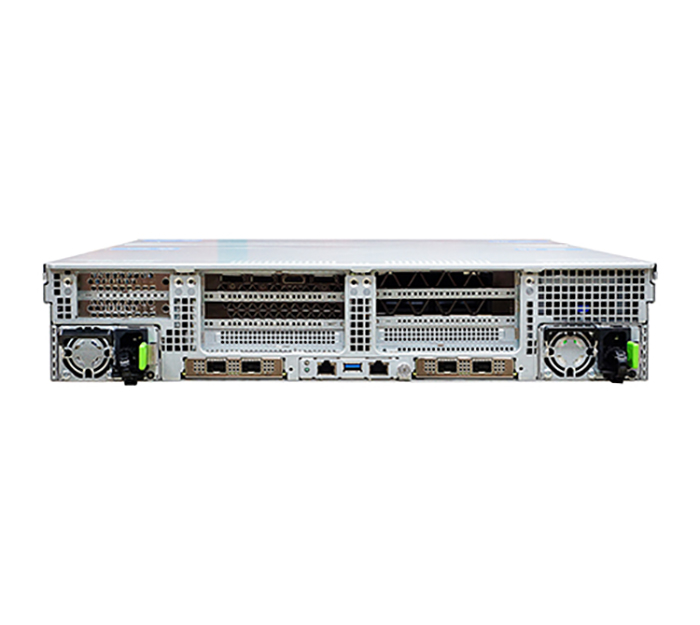

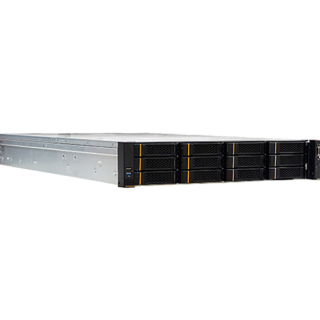

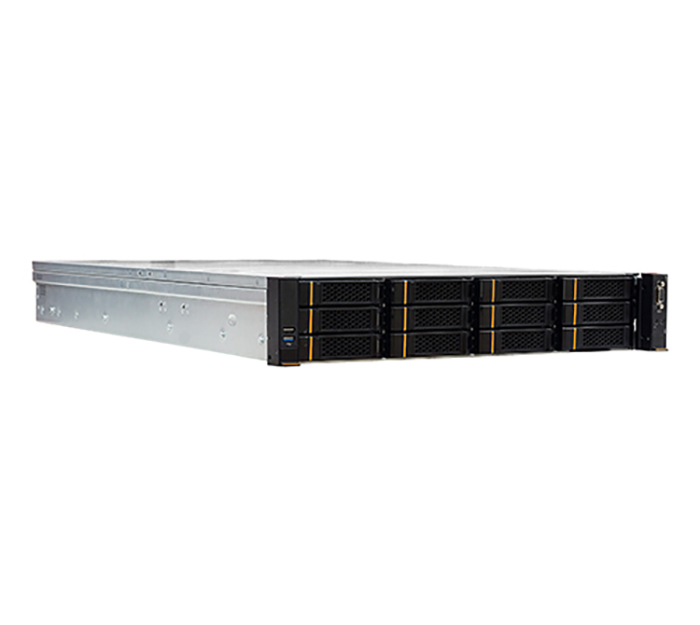

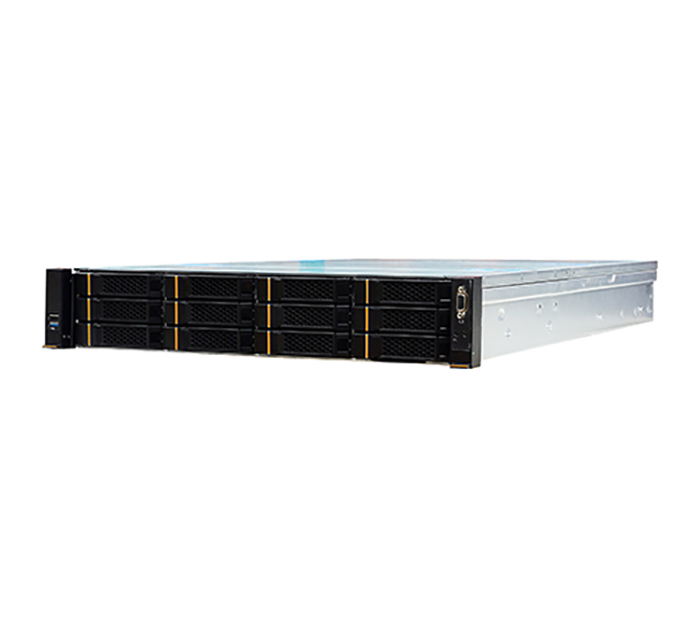

BIS-5221
Dual 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake-SP)
Support up to 12TB DDR4 RDIMM/LRDIMM 3200MHz & Intel® Optane Persistent Memory 200 series
Support up to 2x OCP 3.0 Network Cards
Support up to 6x PCIe FHHL + 2x HHHL add-on cards
Support up to 2 dual-width GPU accelerator for AI applications
80 PLUS Platinum Certified 1200W/1600W CRPS
-
Cloud -
Edge AI -
Storage
BIS-5221 is a 2U/12 bays Hybrid Storage System with dual 3rd Gen Intel® Xeon® Processor Scalable Processors (Ice Lake / Whitley platform). Refreshed CPU microarchitecture provides Higher performance & IPC, and 8-memory channels (16 RDIMMs per CPU) support high memory bandwidth & capacity. Also, with total 64 lanes PCIe 4.0 (16GT/s) per CPU, BIS-5221 provides flexible and scalable I/O scalability, supporting up to 2x OCP 3.0 network cards and multiple standard PCIe slots. From the system view, BIS-5221 features tool-less HDD/SDD tray and PCIe slots, which could support up to 2 GPU, and edge-cutting thermal airduct design solution. All above provides customer the most reliable system for application of AI computing/cloud computing/security solution. Last but not the least, BIS-5221 also features flexible customization for data center/ISV/CSP on hardware/firmware/BIOS/software.
--DDR4 RDIMM/LRDIMM up to 3200 MHz, 256GB per DIMM
--Intel® Optane™ DC Persistent Memory (DCPMM) 200 Series module, up to 512GB per DIMM
2x FHHL PCIe Gen4 x8 slot
2x HHHL PCIe Gen4 x16 slot
2x OCP3.0 4C+slot(w/x16 signal)
2x Internal SATA 2.5” SSD(optional)
drive
1x USBB 3.0 (rear I/O)
1x USB 3.0 (Internal MB reserve)
Reserved 2x5 pin header (Com2)
1x ID Button/LED
non-condensing
Accessory Box
2x power cord(US), 1 x CD (Manual, Quick Installation Guide, Utilities & Drivers)
