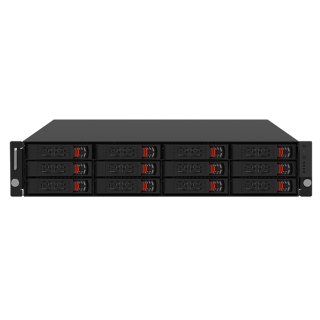

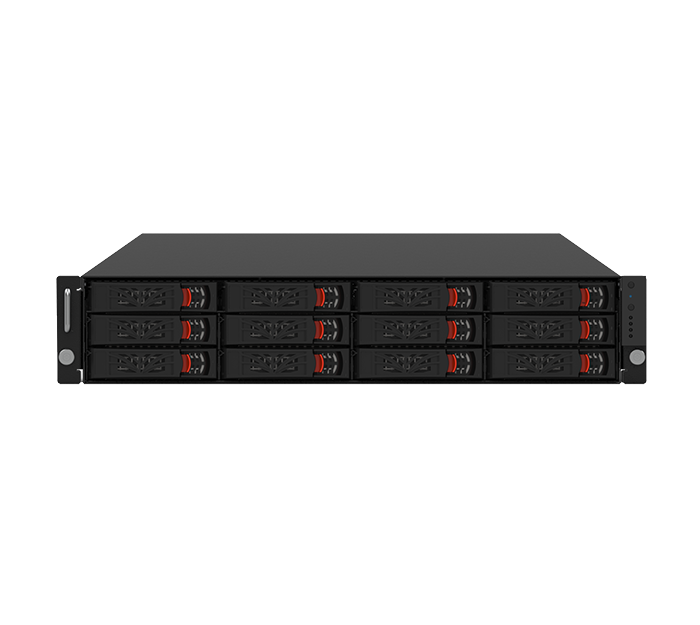

BIS-5121-2U
8x DDR4 RDIMM/LRDIMM memory, up to 3200 MHz
Support Intel QAT (by SKU)
1x 1GbE RJ45 IPMI port, 2x 10GbE RJ45 ports, 1x FHFL PCIe Gen4 slot, 1x FHHL PCIe Gen4 slot
12x 3.5'' SATA, 1x M.2 M Key
Optional Intel PFR/AEWIN TSB V2 module
-
Cloud -
Edge AI -
Storage
BIS-5121-2U is a 2U 12Bays Storage Server System with single 3rd Gen Intel® Xeon® Scalable processor (Ice Lake/ Whitley platform). Refreshed CPU microarchitecture provides Higher performance and 8 DIMMs (1DPC) to support high memory bandwidth & capacity. In addition to 4x 3.5” hot-swap storage bays, BIS-5121-1U also support 2x internal SSD or optional M.2. With total 64 lanes PCIe 4.0 (16GT/s) per CPU, BIS-5121 provides flexible and scalable I/O scalability including 3x PCIe Gen4 slots.
--DDR4 RDIMM up to 3200 MHz, 256GB per DIMM
1x FHHL PCIe Gen4 x8 slot
- 2x 2.5” SSD or
- 1x PCIe x2 M.2 (2280 M-key) or
- 1x SATA M.2 (2280 M-key) + 1x 2.5” SSD or
- 1x PCIe x1 M.2 (2280 M-key) + 1x 2.5” SSD through multiplexer
2x USB 3.0 (MB reserved PIN header)
4x USB 2.0 (MB reserved PIN header)
1x ID Button/LED
1x Reset Button
1x System error LED
1x IPMI LAN LED
non-condensing
BIS-5231-2U
BIS-5231-2U is a 2U General Purpose Server with Dual Intel Xeon 6 Scalable Processors (Granite Rapids-SP/Sierra Forest), 16x DDR5 6400MHz RDIMM, 8x PCIe Gen5 slots, 1x OCP 3.0 PCIe Gen5 slot, 12x hot-swapable SAS/SATA/NVMe, 1x 1GbE IPMI, RJ45, 4x 10G RJ45, 2x USB 3.1, 1x Console, 1x VGA, 2x M.2
BIS-5132-2U
BIS-5132-2U is a 2U General Purpose Server with single Intel Xeon 6 Scalable Processor (Granite Rapids-SP/Sierra Forest-SP), 8x DDR5 6400MHz RDIMM, 8x PCIe slots, 12x hot-swapable HDDs/SSDs, 2x 2.5” hot-swappable NVMe SSDs, 1x 1GbE MGMT RJ45, 2x 10GbE RJ45, 1x USB 3.1, 1x Console, 2x M.2
BIS-5222-4U
4U Rackmount Dual 3rd Gen Intel® Xeon® Scalable Processor (Ice Lake-SP/ Whitley platform) Storage Server, supporting 16x DDR4 (up to 3200MHz), 24x 3.5” Hot-Swap HDD, 5x PCIe Gen4 slots, 2x 2.5” SSD (optional), 1x 1GbE IPMI, 2x USB 3.0/2.0, 2x 10GbE, 1x VGA, 1x M.2 (optional)
BIS-5121-1U
1U Rackmount Single 3rd Gen Intel® Xeon® Scalable Processor (Ice Lake-SP/ Whitley platform) Storage Server, supporting 8x DDR4 (up to 3200MHz), 4x 3.5” Hot-Swap HDD, 2x PCIe Gen4 slots, 2x 2.5” SSD (optional), 1x 1GbE IPMI, 2x USB 3.0/2.0, 2x 10GbE, 1x VGA, 1x M.2 (optional)
BIS-5222-2U
2U Rackmount Dual 3rd Gen Intel® Xeon® Scalable Processor (Ice Lake-SP/ Whitley platform) Storage Server, supporting 16x DDR4 (up to 3200MHz), 12x 3.5” Hot-Swap HDD, 5x PCIe Gen4 slots, 2x 2.5” SSD (optional), 1x 1GbE IPMI, 2x USB 3.0/2.0, 2x 10GbE, 1x VGA, 1x M.2 (optional)
BIS-5221
2U Rackmount Dual 3rd Gen Intel® Xeon® Processor Scalable Processors (Ice Lake-SP / Whitley platform) and Intel® C621A/C627A PCH Hybrid Storage Server, support 32x DDR4(up to 3200MHz) per system, supporting 2x OCP 3.0 Network Cards, 12x bays 3.5” Hot-Swap SAS/SATA HDD, IPMI, USB 3.0/2.0, 2x 1GbE, 1 Console, 2x M.2, Redundant PSU.
