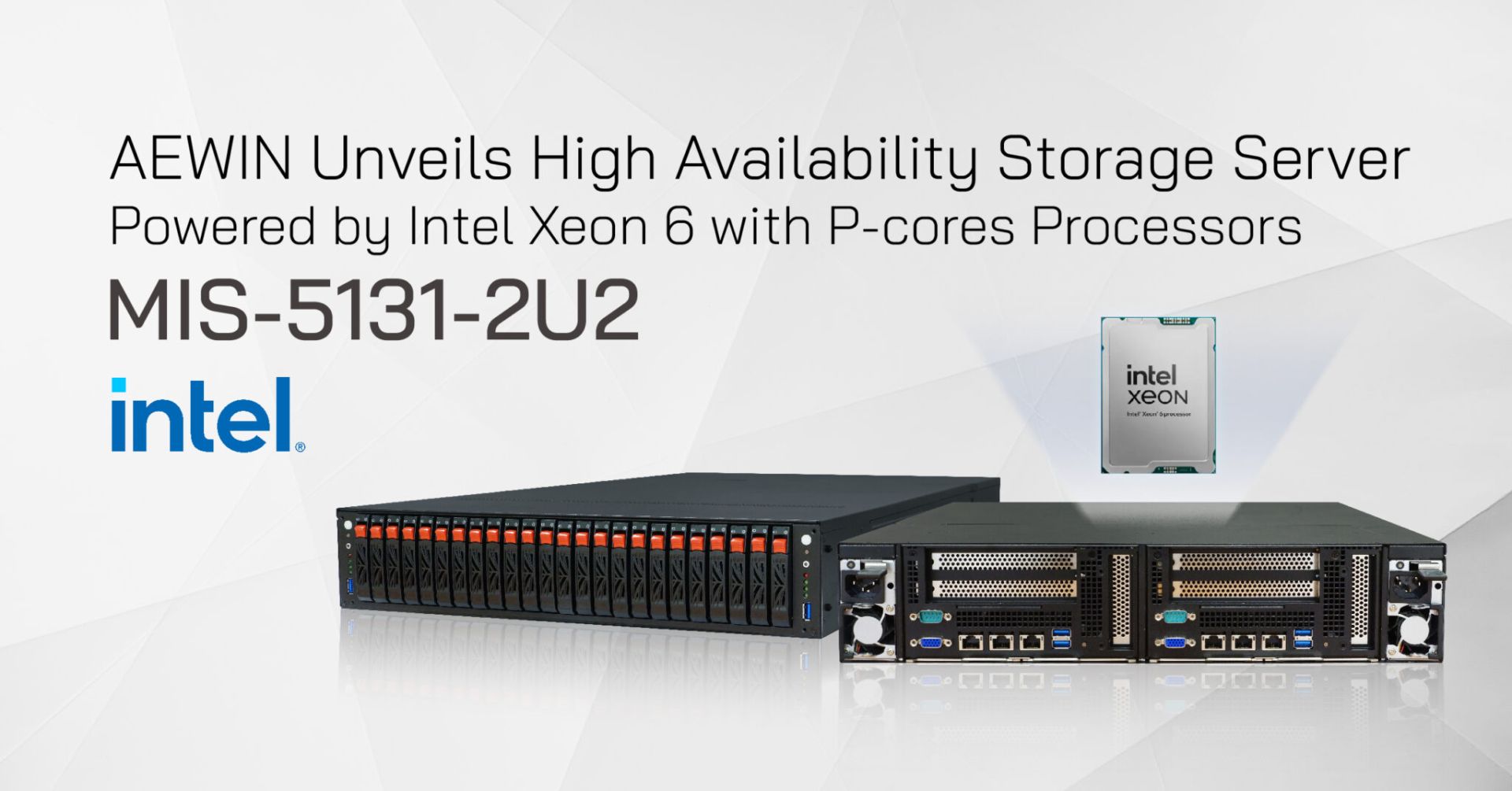

AEWIN Unveils High Availability Storage Server, MIS-5131-2U2, Powered by Intel Xeon 6 with P-cores Processors
AEWIN is excited to launch the MIS-5131-2U2, a cutting-edge 2U2N High Availability Storage Server powered by Intel’s latest Xeon 6 processors. The horizontal placement enables optimized thermal dissipation to allow CPU running with high TDP of 350W. Each node is equipped with a single Intel Xeon 6700/6500-series processor with P-cores (R1S), offering up to 80 performance cores, 136 PCIe 5.0 lanes, and 8x high-speed DDR5 RDIMMs with speeds of up to 6400 MT/s. Featuring rich I/O and 24x hot-swap dual port NVMe SSD bays, MIS-5131-2U2 is a high-performance and reliable storage solution for mission-critical applications.
The dual node architecture within a single chassis allows for seamless failover through with the NTB (Non-Transparent Bridge) interconnectivity, two BMC communication, and dual-port NVMe drives. The two nodes of MIS-5131 are linked via NTB running at PCIe Gen5 speeds (32GT/s) to enable high speed, redundant storage failover. With NTB, dual port NVMe drives, and sufficient PCIe lanes of Intel Xeon 6 R1S CPU, the system eliminates the need for an additional switch, delivering an optimized HA server solution with the best TCO for continuous operation.
AEWIN’s 2U2N storage server features 24x hot-swappable NVMe drive bays with dual port for enhanced performance, high availability and redundancy. The dual-port SSDs minimize disruptions in case of path failures. Additionally, the server is equipped with 1+1 CRPS power supplies, providing uninterrupted operation and reducing downtime. Furthermore, the MIS-5131-2U2 includes IPMI support and a built-in BMC real-time inter-node monitoring and automatic responses to heartbeat failures for enhanced reliability.
Each node supports 2x FHFL PCIe 5.0 and 1x LP PCIe 5.0 slots for expanding high throughput NICs up to 400G to fulfill fast and reliable data transmission. Intel QAT 4, an encryption and compression offload engine, is built in Intel Xeon 6 CPUs to deliver up to 200Gbs Crypto for enhanced CPU efficiency and data footprint reduction. There is optional dual width PCIe x16 slot for GPU/FPGA cards to achieve AI and ML workloads. Along with Intel AMX-FP16 in Intel Xeon 6 CPUs, it provides precision and performance balance to trained models faster while having more precision compared to Int8 and BF16.
MIS-5131-2U2 has the flexibility to switch from 24x dual port NVMe SSD trays to 12x single port NVMe SSD trays per node with customized backplane. Featuring great performance, efficient fault tolerance, and extraordinary scalability, MIS-5131-2U2 is ready to be deployed for diverse mission critical applications including intelligent data analytics, data management, and content delivery. Check out further product information by clicking below.
