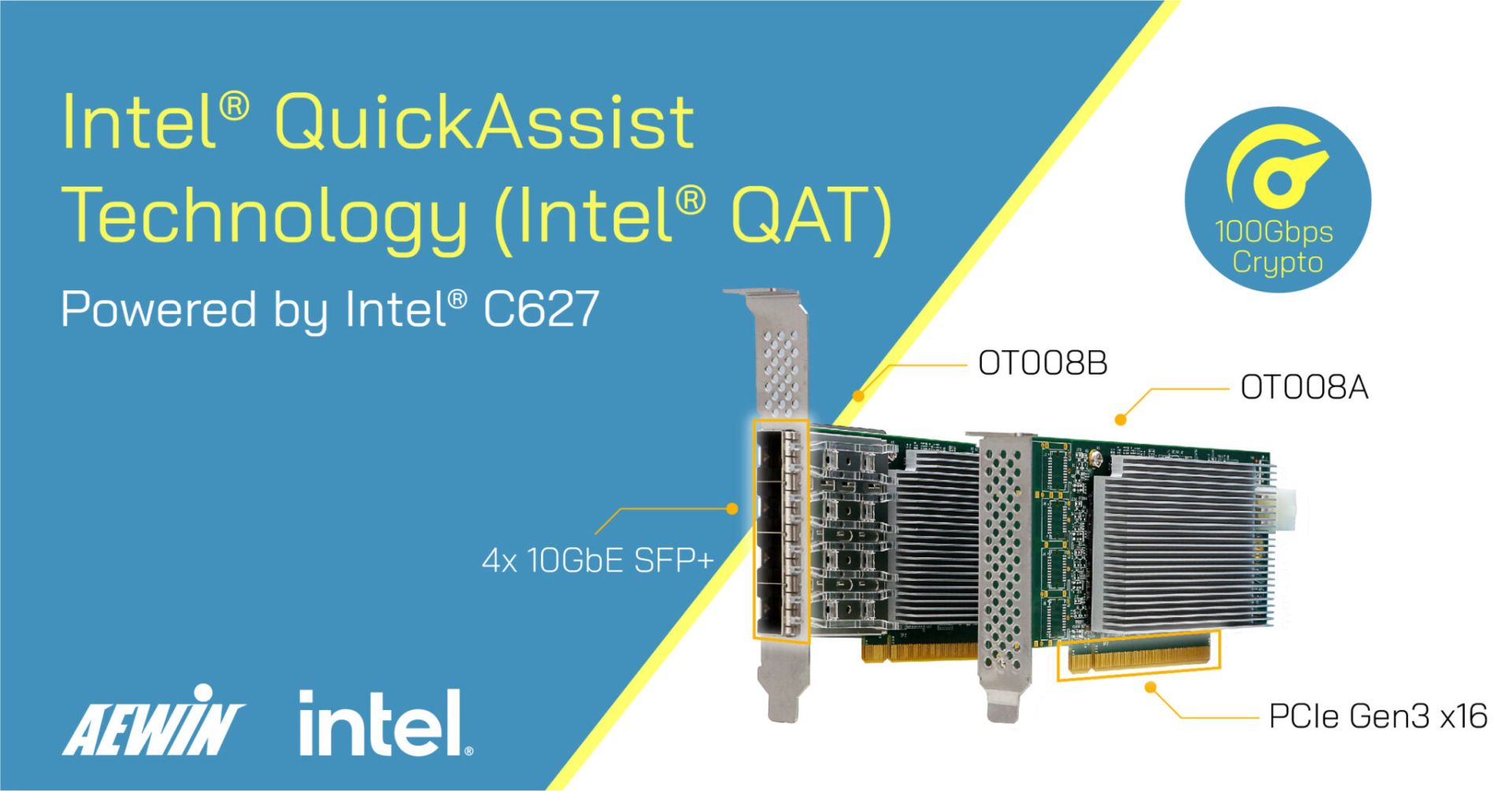

OT008 Hybrid Network Cryptography Accelerator Card

To enhance data security, AEWIN launches OT008 crypto accelerator that provides Intel QuickAssist Technology to secure data transport and protection across server, storage, network, and VM migration. OT008 can accelerate important wireless hashing and ciphering algorithms such as AES, Snow 3G, and ZUC utilized in 5G networks.

As the enterprises and organizations across the globe study more economically feasible ways to construct their own private 5G networks, there is a growing need for off the shelf hardware to provide the critical cryptographic acceleration to reduce the overall hardware expenditure, and free up the costly CPU for other tasks. AEWIN’s OT008 is designed to excel at this application, with on-board cryptographic engine as well as 4x 10Gbps SFP+ ethernet connections. This all-in-one package provides the security and additional networking ports.

Beyond 5G, OT008 is also well suited for data centers and enterprise servers. Intel QAT tool kit supports a wide range of common cryptographic algorithms that commonly used in network communication, data storage, and signal processing. With the hashing algorithms, it can detect changes in the stored data or files to prevent unauthorized changes or detect errors in transmission. With on-board 4x 10Gbps network connections, it also frees up valuable PCIe slots inside a server for other tasks or add-on cards.

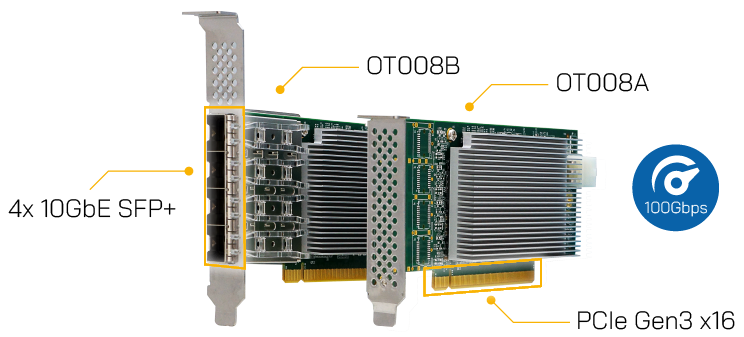

This new QAT adaptor is a standard half-height, half-length PCIe card with PCIe Gen 3 x16 connection. Powered by Intel’s C627 PCH, it provides up to 100Gbps throughput in AES128 and up to 472k ops/sec in RSA performance. It can be installed in AEWIN’s data center oriented servers, as well as network computing platforms through a PCIe conversion kit. Please contact AEWIN sales representatives and see how to integrate QAT into your AEWIN servers.

Intel® C627 PCH

4x 10GbE SFP+ Ports (optional)

Intel® QAT for Crypto and Compression, Acceleration up to 100Gbps
