Intel E810 Networking Solution

Intel E810 is a dependable networking solution for connection speeds up to 100Gbps with advanced functions to further improve performance and responsiveness of networking. Application Device Queues (ADQ) is an open technology that enables supporting applications to queue and reserve lanes to ensure application responsiveness, lower latency, and achieve higher bandwidth. There are other advanced features like RoCE v2, iWARP, DDP and more. E810 network controller can be configured in different modes to support great range of network speeds, as well as supporting up to x16 lanes of PCIe Gen 3 or Gen 4. AEWIN provides total solution based on the E810 for 1x or 2x 100GbE (R671), 4x 25GbE (R672), and 8x 10GbE (NFT801). Explore the performance gains in use cases such as DPDK where it offers differentiated performance improvement over competing solutions. Have a chat with AEWIN’s friendly sales representatives and see how you can integrate these advanced network expansion modules into your favorite AEWIN systems.

Figure 1 – 100GbE Network card L3FWD Benchmark vs Competitor

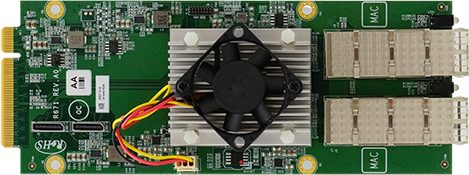

R671		– 1x Intel® E810 – 1x or 2x 100GbE QSFP28 Ports – Support ADQ, DDP, DPDK, RDMA, SR-IOV, VMDq

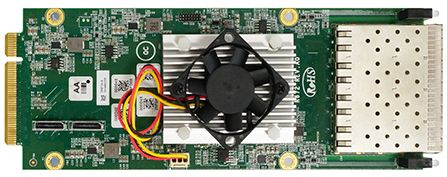

R671		– 1x Intel® E810-CAM1 – 4x 25GbE SFP28 Ports – Support ADQ, DDP, DPDK, RDMA, SR-IOV, VMDq

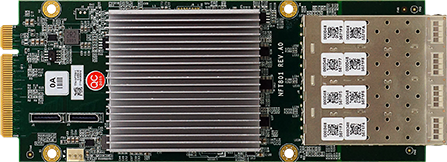

NFT801		– 1x Intel® E810-CAM2 – 8x 10GbE SFP+ Ports – Support VMDq, SR-IOV, DDP, DPDK
