QAT for Crypto and Compression

OT020

Features

Intel® E810-CAM1, Intel® C627 PCH
1x QSFP28 100G LAN port, or extending to 4x 25G LAN ports.
2x 10G SFP+ ports
2x 1G RJ45 ports
QAT adaptor

Add to Compare Add to Inquiry

Download

Description
Specification
Related Products

AEWIN is ready to accelerates cryptography and compression workloads with latest Intel® QuickAssist Technology enabled adaptor. Powered by Intel C627 chipset, AEWIN OT020 are designed to offer hardware acceleration in compute intensive tasks, such as encryption and compression workloads, freeing up CPU for additional tasks.

Utilizing the widely supported QuickAssist API, these adaptors can enable additional layer of security through a variety of cryptographic algorithms, such as RSA, AES, and KASUMI. OT020 provides up to 100Gbps throughput in AES128, and up to 472k ops/sec in RSA. Additionally, they can be used to compress data to free up congested network bandwidth, or reduce storage requirements.

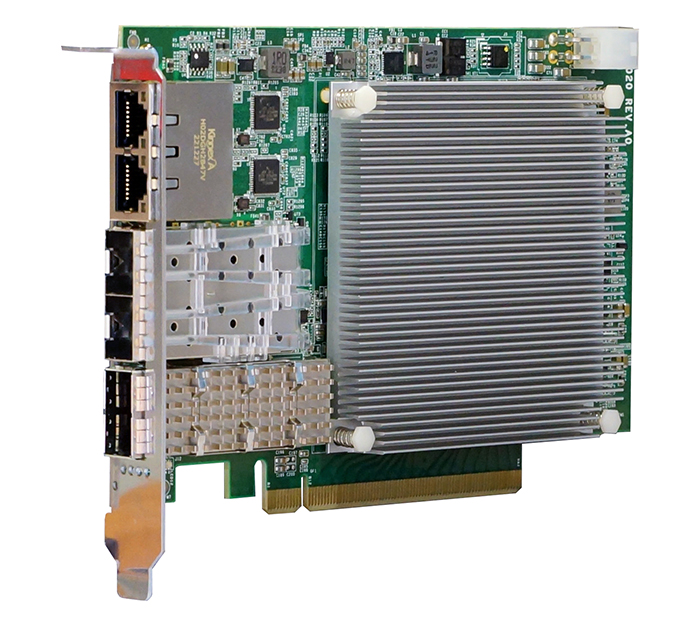

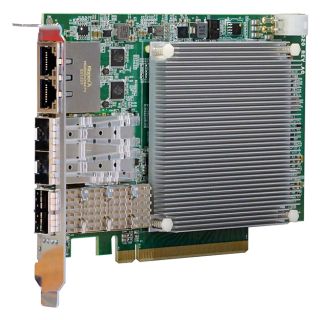

AEWIN’s new QAT adaptors are standard Full-Height, Half-Length PCIe form factor with 1 PCIe x16 Gold Fingers connection to 2x PCIe x8 host. That equipped with 1x QSFP28 100G LAN port, 2x RJ45 1GbE LAN ports and 2x SFP+ 10GbE LAN ports, it extends the security and connectivity of your system. Please contact AEWIN sales representatives and see how to integrate QAT into your AEWIN servers.

Platform

Form Factor

Standard PCIe x16 HHHL

LAN Controller

Intel® E810-CAM1, Intel® C627 PCH

Features

Intel® QuickAssist Technology for Crypto and Compression

Ethernet Port

1x 100G QSFP28 port
2x 10G SFP+ ports
2x 1G RJ45 ports

Bus Type

1x PCIe Gen 4 x8 + 1x PCIe Gen 3 x8

Mechanical

Dimension(W x D x H): 111.15 x 167.65 x 18.66 mm
Weight(with Heatsink & Bracket): 290g

Environmental

Operating Environment

Temperature: 0-45°C(32-113°F)
Humidity: 20-90% RH

Storage Environment

Temperature: 0 -70°C(14-158°F)
Humidity: 5-95% RH @ 55°C

OS Support

Windows, Linux, FreeBSD

Order Information

OT020A : Expansion module for Standard PCIe x16 FHHL QAT card with 1x 100G QSFP28, 2x 10G SFP+, 2x 1GbE RJ45 LAN ports, Intel E810-CAM1 + Intel C627 PCH + Marvell 88E1512 PHY
