QAT for Crypto and Compression

OT001

Features
Intel® C626 PCH
4x 10GbE SFP+ Ports (optional)
Intel® QAT for Crypto and Compression, Acceleration up to 100Gbps
Add to Compare Add to Inquiry
Download

AEWIN is ready to accelerates cryptography and compression workloads with latest Intel® QuickAssist Technology enabled adaptor. Powered by Intel C626 chipset, AEWIN OT001 is designed to offer hardware acceleration in compute intensive tasks, such as encryption and compression workloads, freeing up CPU for additional tasks.

Utilizing the widely supported QuickAssist API, these adaptors can enable additional layer of security through a variety of cryptographic algorithms, such as RSA, AES, and KASUMI. OT001 provides up to 40Gbps and 100Gbps throughput in AES128 respectively, and up to 197k and 472k ops/sec in RSA. Additionally, they can be used to compress data to free up congested network bandwidth, or reduce storage requirements.
AEWIN’s new QAT adaptors are standard half-height, half-length PCIe form factor with PCIe Gen 3 x8 connection to the host. Optionally equipped with 4x 10GbE SFP+ LAN ports, it extends the security and connectivity of your system. Please contact AEWIN sales representatives and see how to integrate QAT into your AEWIN servers.

Platform
Form Factor
Standard PCIe Card
LAN Controller
Intel® C626 PCH
Features
Intel® QuickAssist Technology for Crypto and Compression, Acceleration up to 40Gbps
Ethernet Port
2x 1GbE RJ45 Ports
Bus Type
PCIe Gen3 x8 and available Ext. x16
PCIe Voltage
+12V
Power Consumption
23W/28.6W
Passive Heatsink
(55°C at air velocity 200LFM)
Mechanical
Dimension(W x D x H): 68.9 x 167.65 x 16.07 mm
Weight(with tray): 390g
Weight(without tray): 200g
Environmental
Operating Environment
Temperature: 0-45°C(32-113°F)
Humidity: 20-90% RH
Storage Environment
Temperature: 0 -70°C(14-158°F)
Humidity: 5-95% RH @ 55°C
OS Support
Windows, Linux, FreeBSD
Order Information

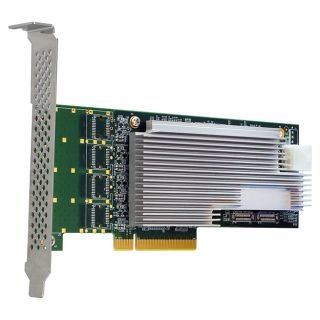

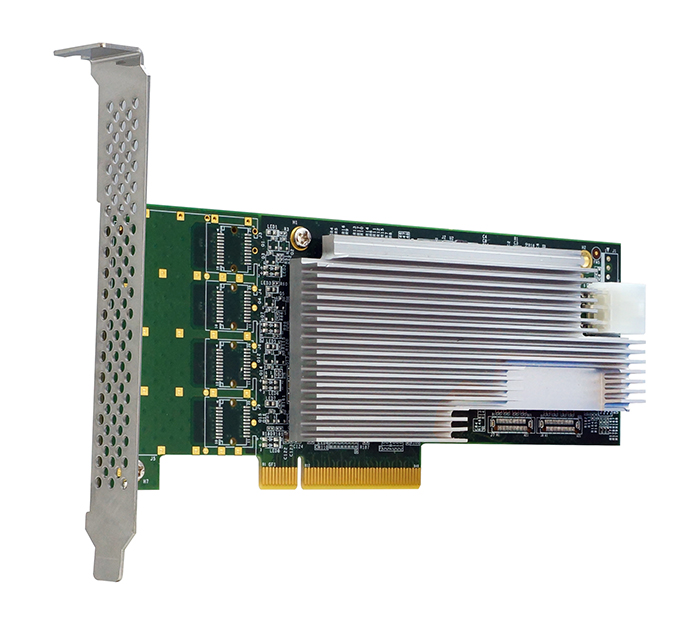

OT001A : 1x Intel® C626 PCH, Expansion module for QAT without LAN Port

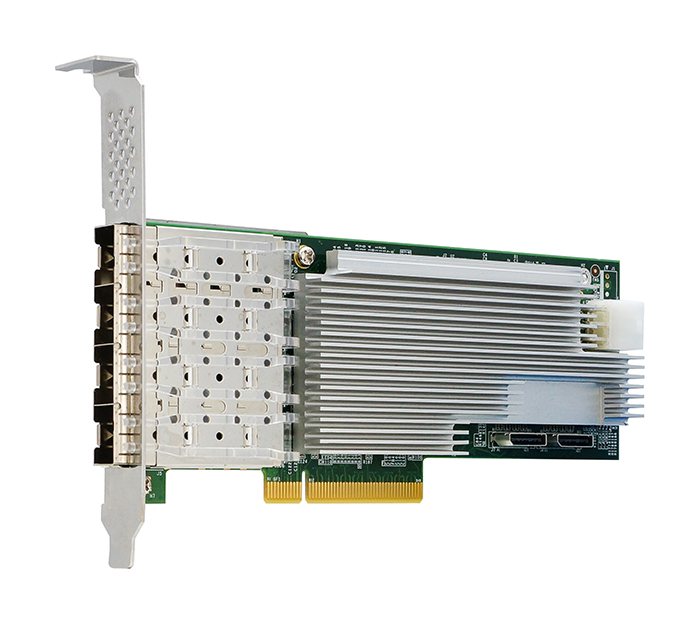

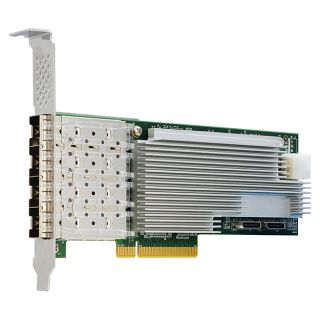

OT001B : 1x Intel® C626 PCH, Expansion module for QAT with 4x 10GbE SFP+ Ports
