General Purpose Server

AEWIN Technologies Co., Ltd.

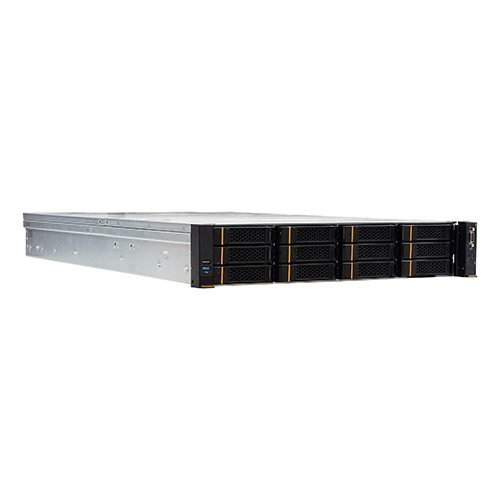

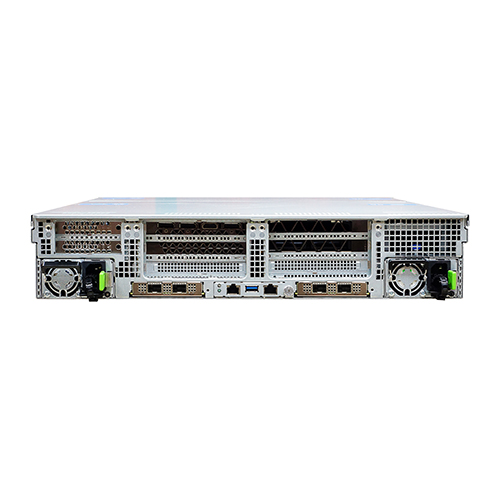

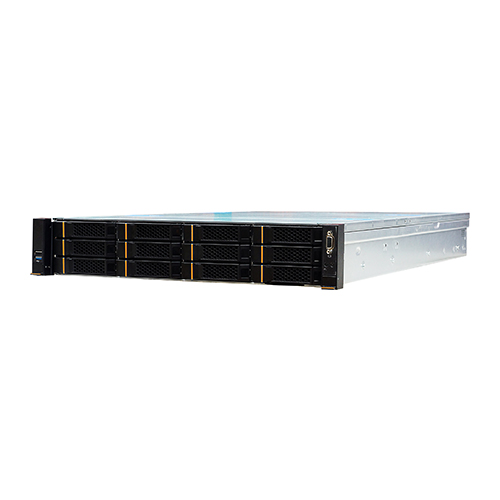

BIS-5221

2U Rackmount Dual 3rd Gen Intel® Xeon® Processor Scalable Processors (Ice Lake-SP / Whitley platform) and Intel® C621A/C627A PCH Hybrid Storage Server, support 32x DDR4(up to 3200MHz) per system, supporting 2x OCP 3.0 Network Cards, 12x bays 3.5” Hot-Swap SAS/SATA HDD, IPMI, USB 3.0/2.0, 2x 1GbE, 1 Console, 2x M.2, Redundant PSU.

Overview
Specifications
Download
Options
Key features
  • 2U/12Bays Hybrid Storage Server System
  • Dual 3rd Gen Intel® Xeon® Processor Scalable Processors (Ice Lake-SP )
  • Support Max 4TB DDR4 3200MHz & Optane DC Persistent Memory
  • Support up to 2x OCP 3.0 Network Cards
  • Support up to 6x PCIe FHHL + 2x HHHL add-on cards
  • Support up to 2 dual-width GPU accelerator for AI applications
  • 80 PLUS Platinum Certified 1200W/1600W CRPS
Status : available

BIS-5221 is a 2U/12 bays Hybrid Storage System with dual 3rd Gen Intel® Xeon® Processor Scalable Processors (Ice Lake / Whitley platform). Refreshed CPU microarchitecture provides Higher performance & IPC, and 8-memory channels (16 RDIMMs per CPU) support high memory bandwidth & capacity. Also, with total 64 lanes PCIe 4.0 (16GT/s) per CPU, BIS-5221 provides flexible and scalable I/O scalability, supporting up to 2x OCP 3.0 network cards and multiple standard PCIe slots. From the system view, BIS-5221 features tool-less HDD/SDD tray and PCIe slots, which could support up to 2 GPU, and edge-cutting thermal airduct design solution. All above provides customer the most reliable system for application of AI computing/cloud computing/security solution. Last but not the least, BIS-5221 also features flexible customization for data center/ISV/CSP on hardware/firmware/BIOS/software.

Specifications
Processor System
CPU
Support Dual 3rd Gen Intel® Xeon® Scalable Processors (Ice Lake-SP / Whitley platform)
Chipset
Intel® C621A/C627A
System Bus
UPI Up to 3 links per CPU (11.2 GT/s)
BIOS
AMI® UEFI BIOS
Memory
Technology
Total 32 DIMMs (8x memory channels per CPU,2x DIMMs per channel, 16 DIMMs per CPU)
ECC & Registered:DDR4 2133/2400/2666/2933/3200MHz memory
Support Intel Optane™ Persistent Memory 200 Series module4
Capacity
Max up to 1.12TB(per CPU)
Validated up to 1024GB
(using 32GB 3200DIMMs)
Expansion
Onboard Expansion Slots
4x FHHL PCIe Gen4 x16 slot
2x FHHL PCIe Gen4 x8 slot
2x HHHL PCIe Gen4 x16 slot
2x OCP3.0 4C+slot(w/x16 signal)
I/O
USB
1x USB 3.0, 1x USB 2.0 (front I/O)
1x USBB 3.0 (rear I/O)
1x USB 3.0 (Internal MB reserve)
Serial
1x RJ45 Console port(Com 1)
Reserved 2x5 pin header (Com2)
Ethernet
GbE Ethernet
2x RJ45 GbE ports(MGMT/IPMI port)
Storage
SATA
12x 2.5”/3.5” Hot-swap SAS/SATA Bay
2x Internal SATA 2.5” SSD(optional)
M.2
2x M.2 (2280 E/M-key) PCIe Gen3 x2 for boot
drive
Power Supply
Watt
CRPS Redundant 1200/1600W
Mechanical and Environment
Form Factor
2U Rackmount Server
LED
1x Power Button/LED
1x ID Button/LED
Dimension (W x D x H)
438.5mm(W) x 770 mm(D) x 88mm(H)
Operating Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
5 ~ 95% relative humidity, non-operating,
non-condensing
Weight
21 kg
Certification
CE/FCC
Packing List
1x BIS-5221A/B
Accessory Box
2x power cord(US), 1 x CD (Manual, Quick Installation Guide, Utilities & Drivers)
Download
Datasheet
2019-09-03
1
Windows10
Optional
Optional
OT006A
Intel PFR Module
OT006B
AEWIN RoT Module
