SCB-6012A/B
Fanless design with lower power consumption
Intel Atom x5-E3940 / x5-E3930(Apollo Lake) onboard
DDR3L 204 Pin SO-DIMM and support DDR3L 1333/1600/1866 memory module
Reserved 2x8 pin VGA connector/1x M.2 2242 socket(PCIe and SATA III Port)
1x Full mini-PCIe socket(PCIex1 and USB 2.0 Signal) for WIFI/4G LTE Module
1x Serial Port (RJ45 type), 2x USB 3.0 Port, SIM Card Holder, Micro SD socket
4 in & 4 Out with 2x5 pin DIO connector

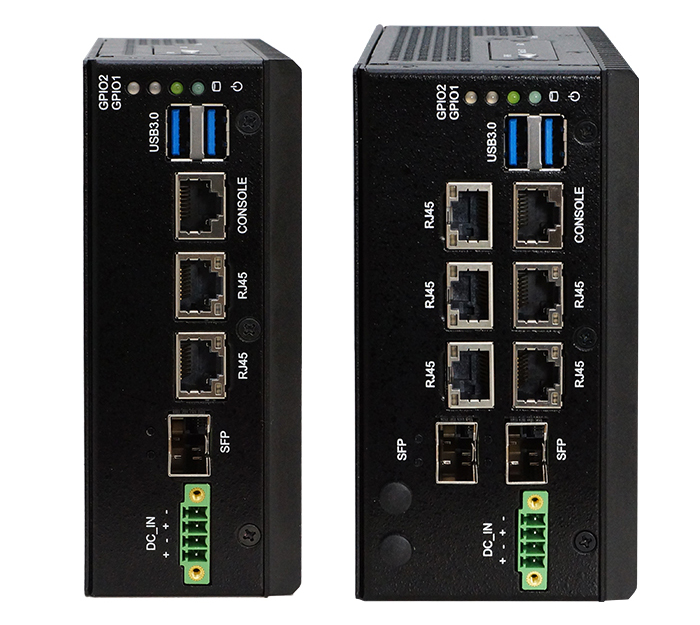

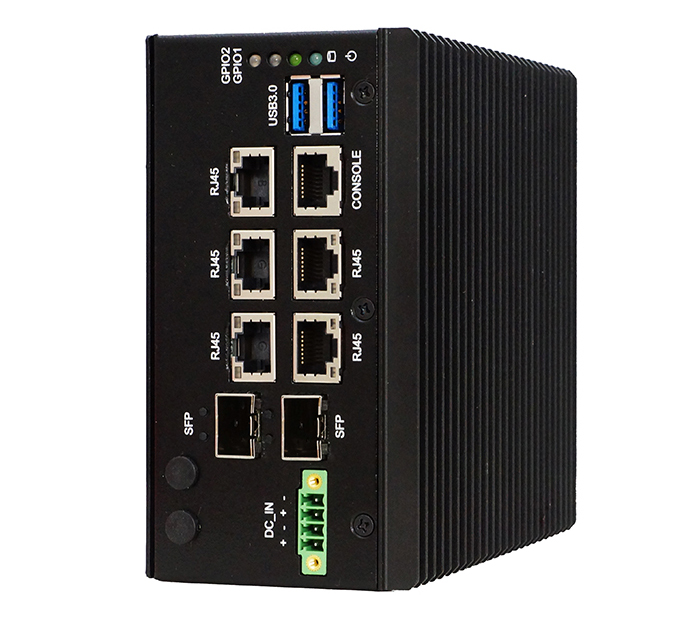

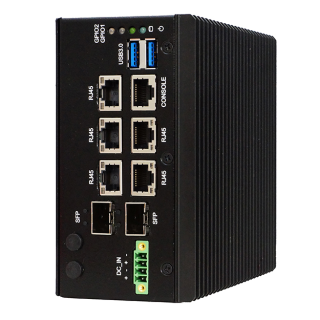

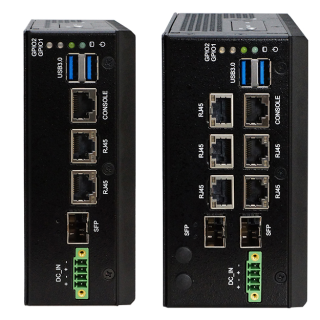

SCB-6012A/B is Industrial Firewall Appliance is a compact fanless industrial grade appliance with Intel® "Apollo-lake-I"Atom™ X5-3930/X5-E3940 CPU. Deployed in remote, unmanned and harsh environments, SCB-6012A supports 1x SFP, 2x RJ45,2x USB 3.0 Port,1xconsole Port and extended operating temperature from -20 to 70 degrees SCB-6012B supports 2x SFP, 5x RJ45,2x USB 3.0 Port, 1x Micro SD, 1x Micro SIM, 1xconsole Port and extended operatingtemperature from -20 to 70 degrees. It also boosts for its flexible design with versatile mounting options (DIN-Rail) and Ethernet LAN configuration, making it perfectfor performing at critical infrastructure such as Oil refinery, Substation, Power plants, Manufacturing factories
1x M.2 B+M Key 2242 Socket
1/2x SFP
1x HDD LED
1x Status1
1x Status2
SCB-6012B 130x150x100mm(WxDxH)
5-95% RH storage
