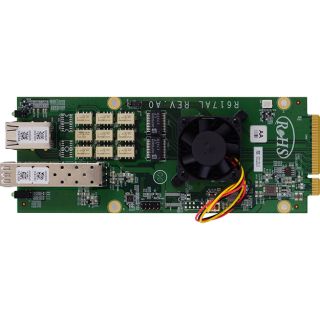

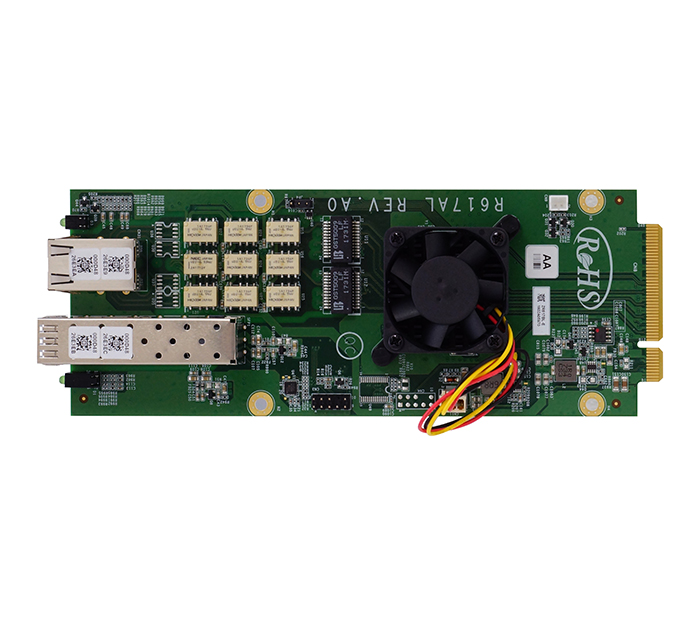

Network Expansion Module
R617
Features
1x Intel® I350-AM4
2x 1GbE RJ45 Ports + 2x 1GbE SFP Ports
1 Pair Gen 3 Bypass(optional)
Support VMDq, SR-IOV
2x 1GbE RJ45 Ports + 2x 1GbE SFP Ports
1 Pair Gen 3 Bypass(optional)
Support VMDq, SR-IOV
Platform
Form Factor
AEWIN Expansion Module
LAN Controller
1x Intel® I350-AM4
LAN Switch
-
Features
VMDq, SR-IOV
Ethernet Port
2x 1GbE RJ45
2x 1GbE SFP
2x 1GbE SFP
Bypass
1 Pair Gen 3 Bypass (optional)
Bus Type
PCIe Gen 2 x8
Mechanical
Dimension(W x D x H):74 x 194 x 29 mm
Weight(with tray): 345g
Weight(without tray): 155g
Weight(with tray): 345g
Weight(without tray): 155g
Environmental
Operating Environment
Temperature: 0-45°C(32-113°F)
Humidity: 20-90% RH
Humidity: 20-90% RH
Storage Environment
Temperature: 0 -70°C(14-158°F)
Humidity: 5-95% RH @ 55°C
Humidity: 5-95% RH @ 55°C
OS Support
Windows, Linux, FreeBSD
Order Information
R617A : 1x Intel® I350-AM4, 2x 1GbE RJ45 Copper + 2x 1GbE SFP Fiber, Ports Sequence Right to Left
R617AL : 1x Intel® I350-AM4, 2x 1GbE RJ45 Copper + 2x 1GbE SFP Fiber, Ports Sequence Left to Right
R617B : 1x Intel® I350-AM4, 2x 1GbE RJ45 Copper + 2x 1GbE SFP Fiber, 1 Pair Gen 3 Bypass, Ports Sequence Right to Left
R617BL : 1x Intel® I350-AM4, 2x 1GbE RJ45 Copper + 2x 1GbE SFP Fiber, 1 Pair Gen 3 Bypass, Ports Sequence Left to Right
R617AL : 1x Intel® I350-AM4, 2x 1GbE RJ45 Copper + 2x 1GbE SFP Fiber, Ports Sequence Left to Right
R617B : 1x Intel® I350-AM4, 2x 1GbE RJ45 Copper + 2x 1GbE SFP Fiber, 1 Pair Gen 3 Bypass, Ports Sequence Right to Left
R617BL : 1x Intel® I350-AM4, 2x 1GbE RJ45 Copper + 2x 1GbE SFP Fiber, 1 Pair Gen 3 Bypass, Ports Sequence Left to Right
