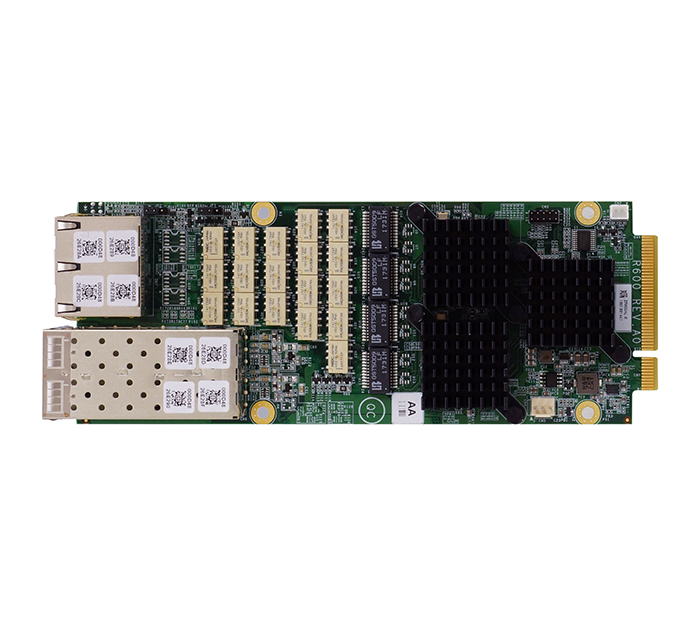

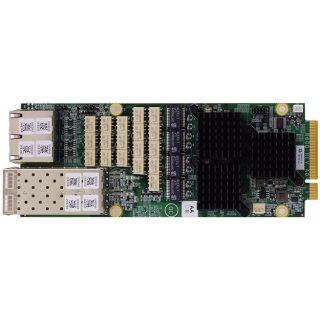

Network Expansion Module
R600
Features
2x Intel i350-AM4
4x 1GbE RJ45 Ports + 4x 1GbE SFP Ports
2 Pairs Gen 3 Bypass (optional)
4x 1GbE RJ45 Ports + 4x 1GbE SFP Ports
2 Pairs Gen 3 Bypass (optional)
Platform
Form Factor
AEWIN Expansion Module
LAN Controller
2x Intel® I350-AM4
LAN Switch
PCIe G2 switch PI7C9X2G308GPANJ
Features
-
Ethernet Port
4x 1GbE RJ45 Ports
4x 1GbE SFP Ports
4x 1GbE SFP Ports
Bypass
2 Pairs Gen 3 Bypass (optional)
Bus Type
PCIe Gen 2 x8
Mechanical
Dimension(W x D x H): 74 x 194 x 29 mm
Weight(with tray): 414g
Weight(without tray): 224g
Weight(with tray): 414g
Weight(without tray): 224g
Environmental
Operating Environment
Temperature: 0-45°C(32-113°F)
Humidity: 20-90% RH
Humidity: 20-90% RH
Storage Environment
Temperature: 0 -70°C(14-158°F)
Humidity: 5-95% RH @ 55°C
Humidity: 5-95% RH @ 55°C
OS Support
Windows, Linux, FreeBSD
Order Information
R434AL : 2x Intel® I350-AM4, 4x 1GbE RJ45 Copper + 4x 1GbE SFP Fiber, Ports Sequence Left to Right
R434BL : 2x Intel® I350-AM4, 4x 1GbE RJ45 Copper + 4x 1GbE SFP Fiber, 2 Pairs Gen 3 Bypass, Ports Sequence Left to Right
R434BL : 2x Intel® I350-AM4, 4x 1GbE RJ45 Copper + 4x 1GbE SFP Fiber, 2 Pairs Gen 3 Bypass, Ports Sequence Left to Right
