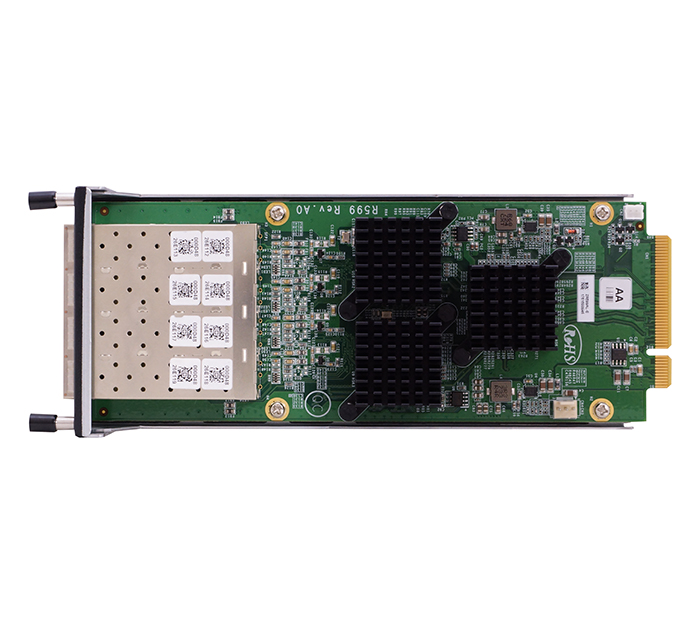

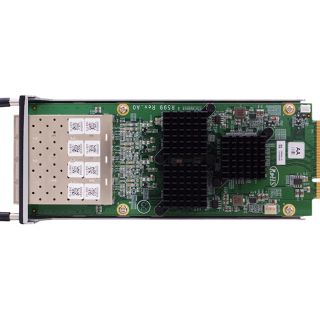

Network Expansion Module
R599
Features
2x Intel® I350-AM4
8x 1GbE SFP Ports
Support VMDq, SR-IOV
8x 1GbE SFP Ports
Support VMDq, SR-IOV
Platform
Form Factor
AEWIN Expansion Module
LAN Controller
2x Intel® I350-AM4
LAN Switch
1x PERICOM PI7C9X2G308GP
Features
VMDq, SR-IOV
Ethernet Port
8x 1GbE SFP Ports
Bypass
-
Bus Type
PCIe Gen 2 x8
Mechanical
Dimension(W x D x H):74 x 194 x 29 mm
Weight(with tray): 313g
Weight(without tray): 123g
Weight(with tray): 313g
Weight(without tray): 123g
Environmental
Operating Environment
Temperature: 0-45°C(32-113°F)
Humidity: 20-90% RH
Humidity: 20-90% RH
Storage Environment
Temperature: 0 -70°C(14-158°F)
Humidity: 5-95% RH @ 55°C
Humidity: 5-95% RH @ 55°C
OS Support
Windows, Linux, FreeBSD
Order Information
R599AL : 2x Intel® I350-AM4, PCIe Gen 2 switch PI7C9X2G308GP, 8x 1GbE SFP Fiber, Ports Sequence Left to Right
