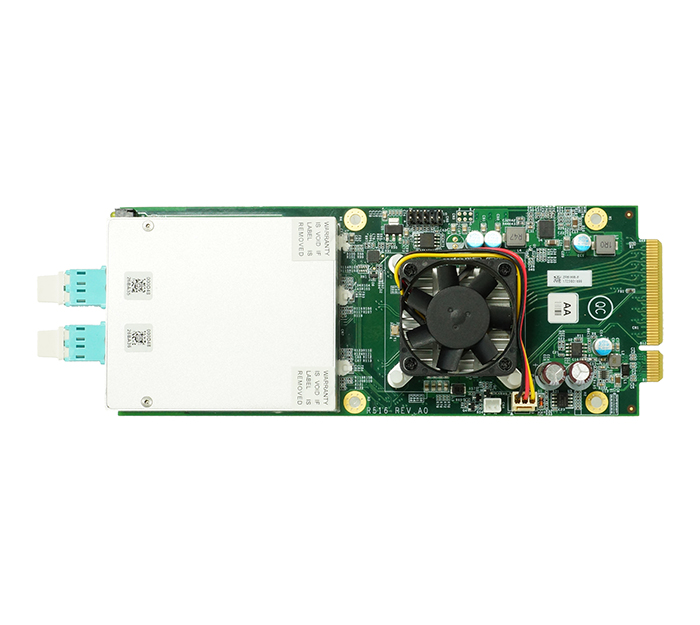

Network Expansion Module
R516
Features
1x Intel® X710-BM2
2x 10GbE SFP+ Ports
1 Pair Gen 3 Bypass
Support VMDq, SR-IOV, DDP, DPDK
2x 10GbE SFP+ Ports
1 Pair Gen 3 Bypass
Support VMDq, SR-IOV, DDP, DPDK
Platform
Form Factor
AEWIN Expansion Module
LAN Controller
1x Intel® X710-BM2
LAN Switch
-
Features
VMDq, SR-IOV, DDP, DPDK
Ethernet Port
2x 10GbE SFP+ Ports
Bypass
1 Pair Gen 3 Bypass
Bus Type
PCIe Gen 3 x8
Mechanical
Dimension(W x D x H):74 x 194 x 29 mm
Weight(with tray): 327g
Weight(without tray): 137g
Weight(with tray): 327g
Weight(without tray): 137g
Environmental
Operating Environment
Temperature: 0-45°C(32-113°F)
Humidity: 20-90% RH
Humidity: 20-90% RH
Storage Environment
Temperature: 0 -70°C(14-158°F)
Humidity: 5-95% RH @ 55°C
Humidity: 5-95% RH @ 55°C
OS Support
Windows, Linux, FreeBSD
Order Information
R516B : 1x Intel® X710-BM2, 2x 10GbE SFP+ Fiber, 1 Pair Gen 3 Bypass with Multi-mode Transceiver, Ports Sequence Right to Left
R516BL : 1x Intel® X710-BM2, 2x 10GbE SFP+ Fiber, 1 Pair Gen 3 Bypass with Multi-mode Transceiver, Ports Sequence Left to Right
R516C : 1x Intel® X710-BM2, 2x 10GbE SFP+ Fiber, 1 Pair Gen 3 Bypass with Single-mode Transceiver(20KM), Ports Sequence Right to Left
R516BL : 1x Intel® X710-BM2, 2x 10GbE SFP+ Fiber, 1 Pair Gen 3 Bypass with Multi-mode Transceiver, Ports Sequence Left to Right
R516C : 1x Intel® X710-BM2, 2x 10GbE SFP+ Fiber, 1 Pair Gen 3 Bypass with Single-mode Transceiver(20KM), Ports Sequence Right to Left
