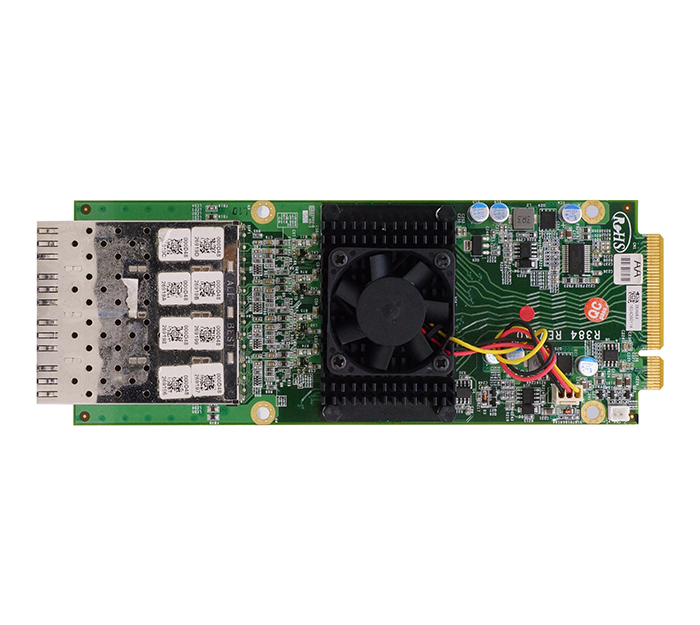

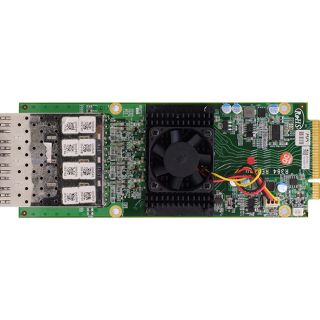

Network Expansion Module
R405
Features
1x Intel® I350-AM4
4x 1GbE SFP Ports
Support VMDq, SR-IOV
4x 1GbE SFP Ports
Support VMDq, SR-IOV
AEWIN R405 Network Expansion Module is built upon the venerable Intel® I350-AM4 chipset, featuring 4x 1GbE SFP ports. SR-IOV functionality is enabled to offer DMA access for virtual machines.
Platform
Form Factor
AEWIN Expansion Module
LAN Controller
1x Intel® I350-AM4
LAN Switch
-
Features
VMDq, SR-IOV
Ethernet Port
4x 1GbE SFP Ports
Bypass
-
Bus Type
PCIe Gen 2 x8
Mechanical
Dimension(W x D x H):74 x 194 x 29 mm
Weight(with tray): 313g
Weight(without tray): 123g
Weight(with tray): 313g
Weight(without tray): 123g
Environmental
Operating Environment
Temperature: 0-45°C(32-113°F)
Humidity: 20-90% RH
Humidity: 20-90% RH
Storage Environment
Temperature: 0 -70°C(14-158°F)
Humidity: 5-95% RH @ 55°C
Humidity: 5-95% RH @ 55°C
OS Support
Windows, Linux, FreeBSD
Order Information
R405A : 1x Intel® I350-AM4, 4x 1GbE SFP Fiber, Ports Sequence Right to Left
R405AL : 1x Intel® I350-AM4, 4x 1GbE SFP Fiber, Ports Sequence Left to Right
R405AL : 1x Intel® I350-AM4, 4x 1GbE SFP Fiber, Ports Sequence Left to Right
