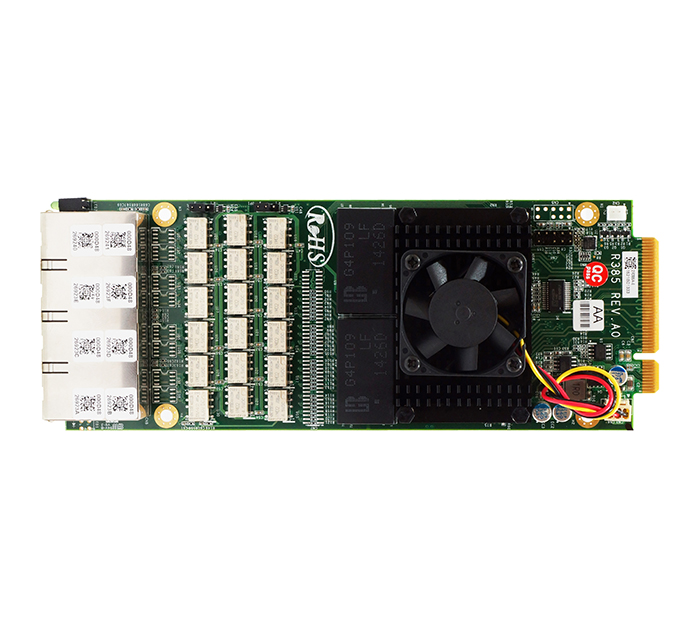

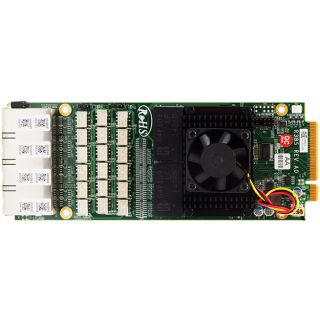

Network Expansion Module
R385
Features
2x Intel® I350-AM4
8x 1GbE RJ45 Ports
2 Pairs Gen 3 Bypass (optional)
Support VMDq, SR-IOV
8x 1GbE RJ45 Ports
2 Pairs Gen 3 Bypass (optional)
Support VMDq, SR-IOV
AEWIN R385 Network Expansion Module is built upon the venerable Intel® I350-AM4 chipset, featuring 8x 1GbE RJ45 ports ports powered by 2x I350 onboard. Available with 2 Pairs Bypass port s to fit into different networking requirements. SR-IOV functionality is enabled to offer DMA access.
Platform
Form Factor
AEWIN Expansion Module
LAN Controller
2x Intel® I350-AM4
LAN Switch
-
Features
VMDq, SR-IOV
Ethernet Port
8x 1GbE RJ45 Ports
Bypass
2 Pairs Gen 3 Bypass
Bus Type
PCIe Gen 2 x8
Mechanical
Dimension(W x D x H):74 x 194 x 29 mm
Weight(with tray): 420g
Weight(without tray): 230g
Weight(with tray): 420g
Weight(without tray): 230g
Environmental
Operating Environment
Temperature: 0-45°C(32-113°F)
Humidity: 20-90% RH
Humidity: 20-90% RH
Storage Environment
Temperature: 0 -70°C(14-158°F)
Humidity: 5-95% RH @ 55°C
Humidity: 5-95% RH @ 55°C
OS Support
Windows, Linux, FreeBSD
Order Information
R385B : 2x Intel® I350-AM4, 8x 1GbE RJ45 Copper, 2 Pairs LAN Bypass, Ports Sequence Right to Left
R385C : 2x Intel® I350-AM4, 8x 1GbE RJ45 Copper, Ports Sequence Right to Left
R385CL : 2x Intel® I350-AM4, 8x 1GbE RJ45 Copper, Ports Sequence Left to Right
R385C : 2x Intel® I350-AM4, 8x 1GbE RJ45 Copper, Ports Sequence Right to Left
R385CL : 2x Intel® I350-AM4, 8x 1GbE RJ45 Copper, Ports Sequence Left to Right
