Edge Computing Server
BAS-6101A
Features
Support Single AMD EPYC 9005/9004 Series Processor (Turin/Bergamo/Genoa)
24x DDR5 RDIMMs, up to 6000 MT/s
8x PCIe slots for GPU/FPGA , 1x OCP3.0 slot
6x 2.5” NVMe/SATA, 2x M.2 M key
IPMI v2.0
24x DDR5 RDIMMs, up to 6000 MT/s
8x PCIe slots for GPU/FPGA , 1x OCP3.0 slot
6x 2.5” NVMe/SATA, 2x M.2 M key
IPMI v2.0
-
Cloud -
Edge AI

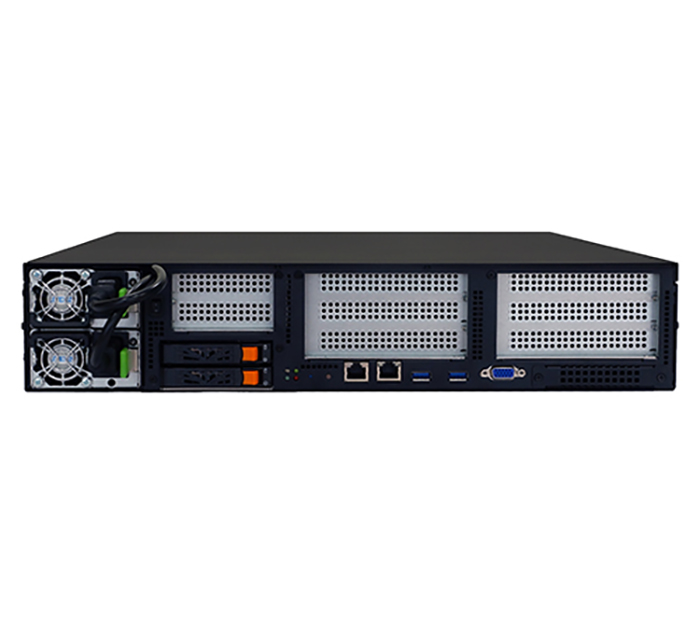

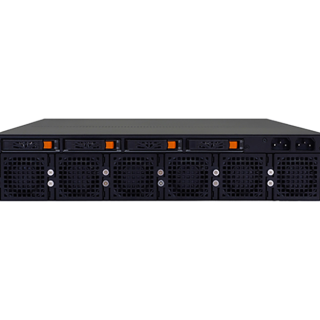

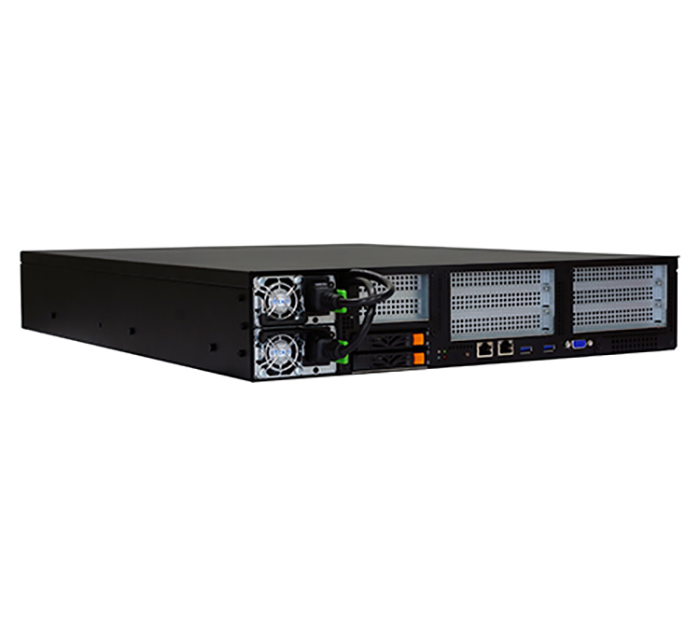

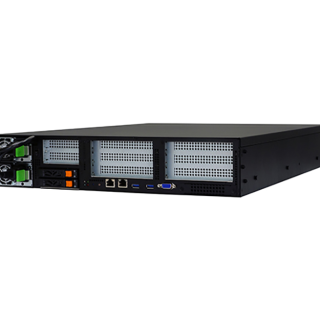

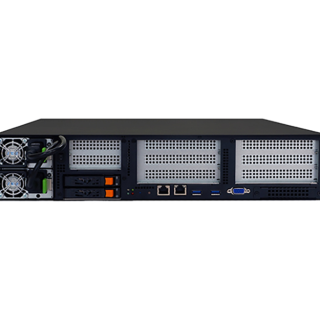

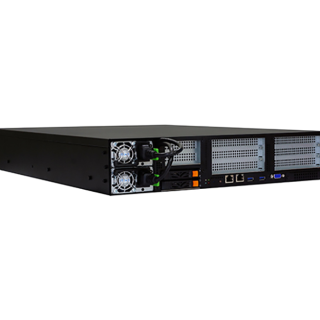

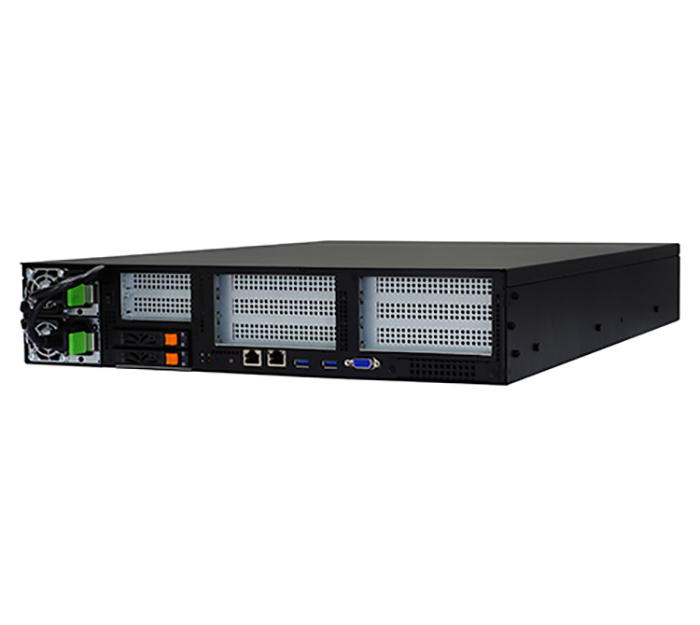

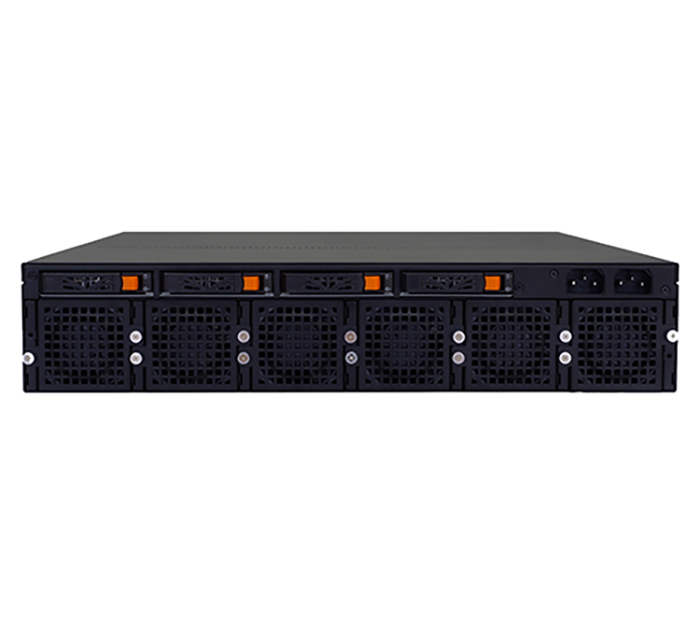

BAS-6101A is a 2U edge server. It supports AMD Turin/Bergamo/Genoa processor, 24x DDR5 RDIMM slots, 6x SATA/NVMe SSDs, 8x PCIe slots, and 1x OCP slot. It also supports IPMI function to simplify local/remote management. BAS-6101A is designed for edge server to fulfill general purpose requirements including Networking, Storage, and Edge AI. Customers can install various kinds of add-on cards (e.g. GPU/AI card, QAT card, encryption card, smart NIC or accelerator card) to satisfy their specific needs for innovative applications.
Processor System
CPU
AMD SP5 Genoa/Bergamo
Chipset
SOC Integrated
BIOS
AMI UEFI BIOS
Memory
Technology
24x DDR5 RDIMM
Capacity
Up to 6TB
Ethernet
GbE Ethernet
1x 1Gb/s RJ45 IPMI management port through AST2600 BMC
Expansion
Onboard Expansion Slots
- 2x dual width FHFL PCIe Gen5 x16 + 2x single width FHHL PCIe Gen5 x16
or 4x single width FHFL PCIe Gen5 x16 + 2x single width FHHL PCIe Gen5 x16
- 2x HHHL PCIe Gen5 x8
-1x OCP3.0 SFF Gen5 x16
or 4x single width FHFL PCIe Gen5 x16 + 2x single width FHHL PCIe Gen5 x16
- 2x HHHL PCIe Gen5 x8
-1x OCP3.0 SFF Gen5 x16
Storage
SATA
6x Hot Swap 2.5” NVMe/SATA
M.2
2x M.2 2280/ 22110 M key
I/O
USB
2x USB3.0 connector
1x USB3.0 + 1x USB2.0 internal pin header
1x USB3.0 + 1x USB2.0 internal pin header
Serial
COM1: 1x RJ45 Console
COM2 &3 pin header
COM2 &3 pin header
Display
1x VGA
Power Supply
Watt
CRPS Redundant 1600W
Mechanical and Environment
Form Factor
2U Rackmount Edge Computing Server
LED
1x UID Button/LED (Blue)
1x Status LED (Red/Green)
1x Power LED (Green)
1x GPIO LED (Defined by customer)
1x Reset Button
1x Status LED (Red/Green)
1x Power LED (Green)
1x GPIO LED (Defined by customer)
1x Reset Button
Dimension (W x D x H)
438mm(W) x 600mm(D) x 88 mm(H)
Operating Temperature
Operating: 0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
5 ~ 95% relative humidity, non-operating,
non-condensing
non-condensing
Weight
TBD
Certification
CE/FCC
Packing List
1x BAS-6101A
2x power cord
2x power cord
