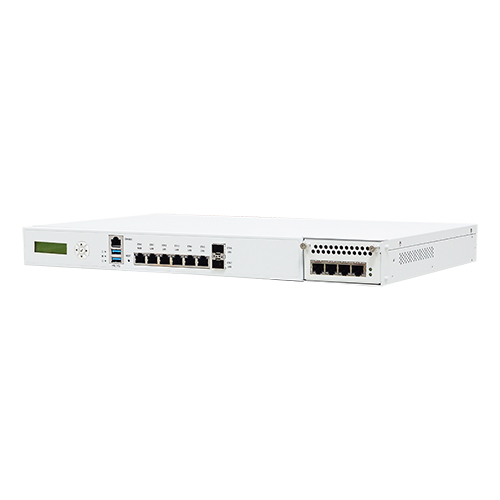

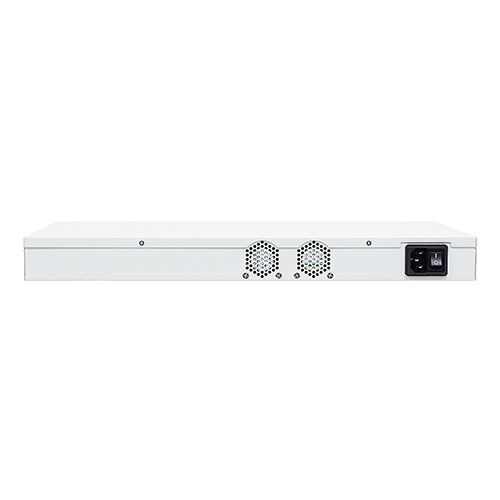

SCB-7910

1U rack-mount system with Intel® Atom® C3000R (Denverton Refresh) processors with 2x DDR4 (with ECC) 2400MHz SO-DIMM, 2x USB3.0, 1x SATA III, 1 x M.2, 1x mSATA, eMMC (optional), 1x mPCIe, TPM 2.0 (optional), 6x RJ45 GbE, 2x 10 GbE SFP+ port, 1x Network Expansion module

Overview
Specifications
Download
Options
Key features
  • Support Single Intel® Atom® C3000R (Denverton Refresh) Processors, FCBGA1310
  • 2x DDR4 (ECC) SO-DIMM memory, up to 2400 MHz
  • Support Intel QAT (by SKU)
  • 6x 1GbE RJ45, 2x 10GbE SFP+, 1x Expansion Module bay
  • 1x 2.5”/3.5” SATA, 1x mSATA, 1x M.2, 1x mPCIe, 1x eMMC 5.0
Status : available

The SCB-7910A is a 1U rack-mount networking system. It supports Intel® Atom® C3000R (Denverton Refresh) processors with QAT (encryption & decryption accelerator) for secure internet connection.

The SCB-7910A support 6x 1GbE RJ45 GbE and 2x 10G SFP+ ports. The SCB-7910A has 1x NIC module, 1x mPCIe and 1x M.2 slot for future expansion, e.g. 1G/10G/WiFi/LTE/5G module.

The SCB-7910A can connect with SATA/mSATA/eMMC storage. Customers can select suitable solution to meet their application.

Specifications
Processor System
CPU
Support Intel Atom C3558R/C3758R Processor
BIOS
AMI® UEFI BIOS
Memory
Technology
2x DDR4 2400MHz ECC SO-DIMM
Capacity
Max up to 32GB
Expansion
Onboard Expansion Slots
1x Network Expansion module
1x mPCIe
M.2
1x M.2(B-key for LTE/5G module)
I/O
USB
2x USB 3.0
Serial
1x RJ45 Console port
Ethernet
GbE Ethernet
6x 1GbE RJ45
2x 10GbE SFP+
Storage
SATA
1 x SATA III connectors
mSATA
1 x mSATA
Power Supply
Watt
65W Open Frame
Mechanical and Environment
Form Factor
1U Rack-Mount
LED
1x Status LED
1x Power LED
1x HDD LED
Dimension (W x D x H)
440 mm (W) x 268mm (D) x 44mm (H)
Operating Temperature
0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
Weight
3.5kg
Certification
CE/FCC
