Entry Network System

AEWIN Technologies Co., Ltd.

SCB-6989

product_icon1
product_icon2
product_icon3
product_icon4
product_icon5

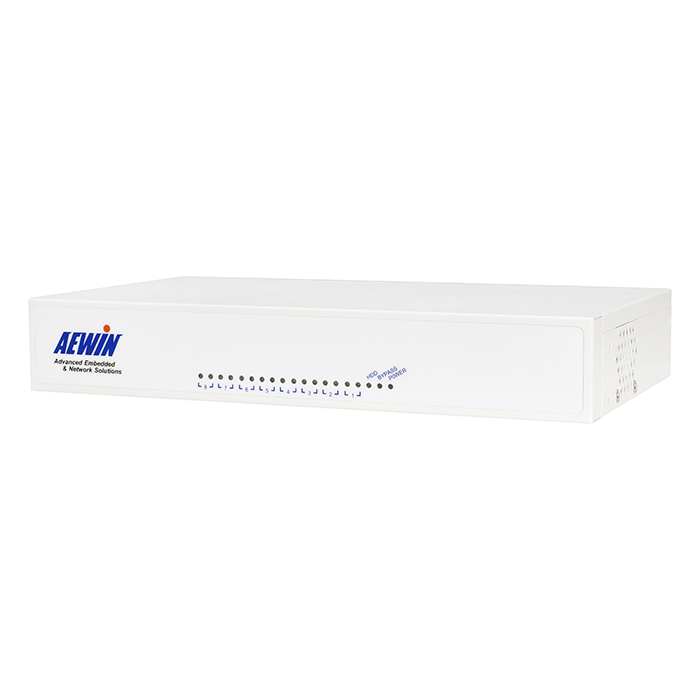

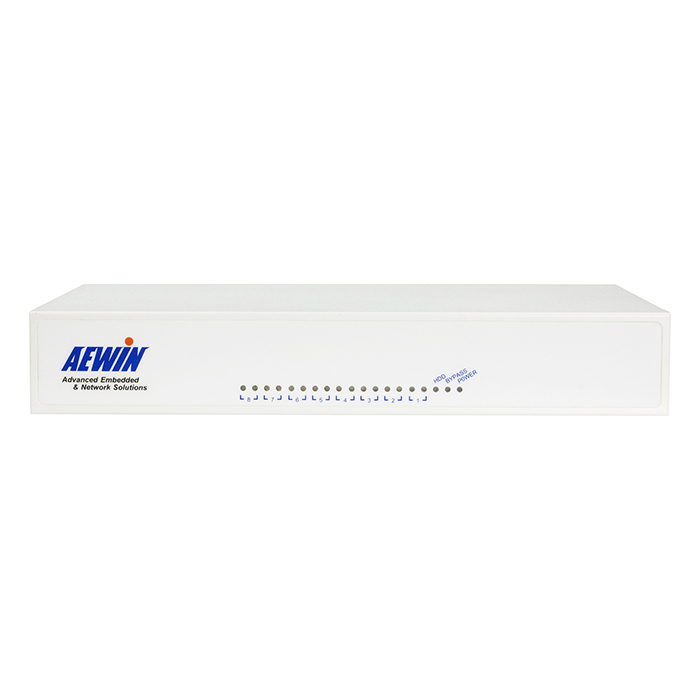

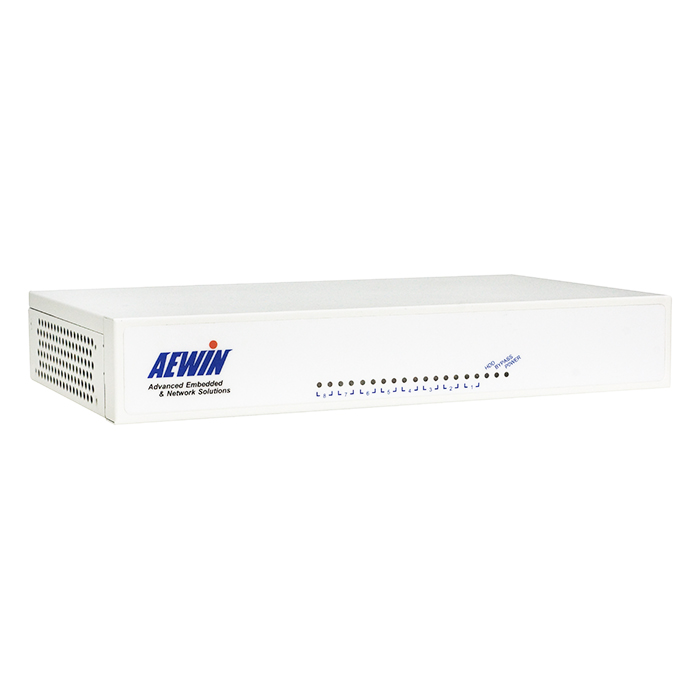

Desktop Network Appliances, Intel® Atom C3000 (Denverton-NS) Processor Network System, 8x Copper GbE, DDR4, mSATA, eMMC, mini-PCIe, PCIe, Bypass

Overview
Specifications
Download
Optional
Key features
  • Intel® Atom C3000 (Denverton-NS) Processor
  • DDR4 ECC 1866/2133 MHz memory, max support 32GB
  • Max 8 GbE ports support
  • Expansive I/O with USB 3.0,2.5” SATA HDD, mSATA socket and Console port
  • 2 pairs Bypass
  • Mini-PCIe x3 (for VGA, for Wifi, for mSATA)
  • Intel® Quick Assist for Cryptographic Hardware Acceleration
Status : available

The SCB-6989 is Desktop high-performance networking system which is based on Intel® Denverton-NS ™ Processor. This new generation platform provides highly CPU computing power that CPU cores up to 16 cores, supporting total with 20 PCIe lanes for flexible both network interface modules expansion .The SCB-6989 is enhancement in computing performance, system responsiveness with Intel® Denverton-NS™ Processor, supporting four DDR4 ECC SODIMM (up to 2133 MHz) and maximum memory capacity is up to 32GB. SCB-6989 is able to support miniPCIe x3, (mini-PCIe to VGA / miniPCIe for Wifi / miniPCIe for mSATA) , 1 x RJ45 Console port. 2x USB 3.0, and LEDs for Power/HDD/Bypass LEDs / LAN active & Link status, and 2 pairs Bypass LAN port function.SCB-6989 supports 1 x mSATA Slot ; 1 x 2.5" SATA HDD for basic network storage application.

Specifications
Processor System
CPU
Intel® Atom C3000 (Denverton-NS) Processor
BIOS
AMI® UEFI BIOS
Memory
Technology
ECC DDR4 1866 / 2133 MHz SODIMM memory
Capacity
Up to 32GB
Expansion
PCI-E slot
1x mini-PCIe socket (half-size) for WIFI
1x mini-PCIe socket (half-size) for VGA module
Ethernet
GbE Ethernet
LAN1~4: Intel I210-AT via PCIex1
LAN5~8: Marvell 88E1543 via SGMII
LAN Bypass
2 pairs of Gen3 Bypass in LAN5~8 (latch Relay)
Storage
SATA
1x internal 2.5”SATA HDD (Optional)
eMMC
eMMC 5.0 (build option)
I/O
USB
2x external USB3.0
2x internal USB 2.0 with pin header
Serial
1x RJ45 Console port (COM1)
1x internal pin header (COM2)
Power Supply
Watt
60W power adaptor (Level 6)
Mechanical and Environment
Form Factor
Desktop
LED
1x Power LED (Green)
1x HDD LED (Red)
1x Bypass LED (Yellow)
6 pairs LEDs for six Ethernet ports Active/Link
status (Green)
Dimension (W x D x H)
270mm (W) x 152mm (D) x 44mm (H)
Operating Temperature
0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
Weight
2kg
Certification
CE/FCC
Download
Datasheet
2019-09-03
1
Windows10
Optional
Optional
R478A
Mini-PCIe to VGA module
DK001
Cable development kit
46L-CO5204-00 Cross over cable
46L-EC5200-00 Ethernet cable
46L-RJDB91-00 RJ45 Console cable
46L-DB9200-01 Null modem cable
46L-IVGA01-00 VGA cable
46L-IPS200-00 KB/MS cable
46L-IUSB01-00 USB cable
Accessories
