Entry Network System

AEWIN Technologies Co., Ltd.

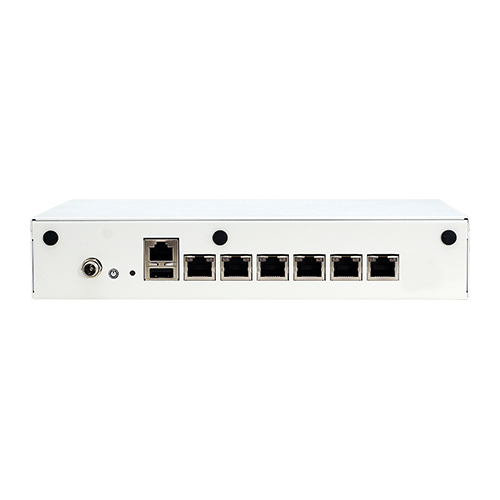

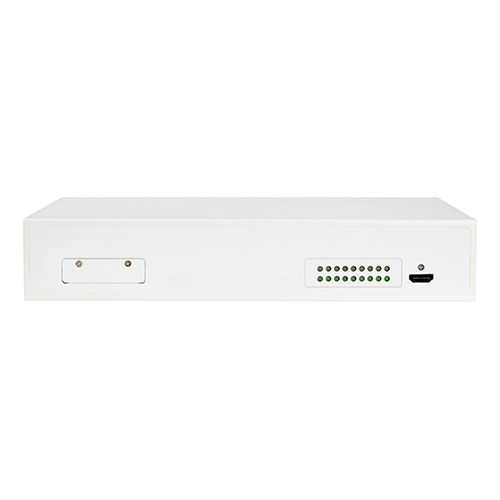

SCB-6913

Fanless Intel Atom (Elkhart lake) x6425E 4 Core SOC, 12W, 1x DDR4 SODIMM, 5x RJ45, 1x combo design RJ45/SFP , 1x Console + USB 2.0 , 3x M.2 for 4G/5G LTE, WIFI 6, 1x M.2 for Storage, 1x eMMC 16GB , 4x Micro SIM Slot, 1x HDMI

Overview
Specifications
Download
Options
Key features
  • FANLESS Design with newest Intel Atom (Elkhart lake) x6425E 2C/4C CPU
  • 5x RJ45, 1x combo design RJ45/SFP
  • 2x M.2 2280/2242/3042/3052 for 4G/5G LTE , M.2 Storage
  • Building 1x 16GB eMMC
Status : available

AEWIN SCB-6913 balances energy efficiency and computational power enabled by the latest Intel Atom Processors featuring the diminitive and power efficient Elkhart Lake cores.

This fanless and wide-temp capable system is ideal for deployment in any location to handle a variety of network appliance applications, such as UTM, firewall, uCPE, SD-WAN and more. It offers 5x 1GbE ports and 1x RJ45/SFP combo port plus 3x M.2 slots for 4G/5G modems to maximize connectivity. It also offer good storage option with 1x M.2 slot, 1x optional mSATA and 1x SATA port. The SCB-6913 can be a great companion for SMBs to safeguard their network from the ever increasingly hostile open internet.

Specifications
Processor System
CPU
Intel Atom (Elkhart lake) x6425E 2C/4C
BIOS
AMI® UEFI BIOS
Memory
Technology
1 x DDR4 Non-ECC SO-DIMM socket
Capacity
Up to 3200MT/s 16GB
Expansion
M.2
1 x M.2 B-Key 3042/3052 for LTE/5G
1 x M.2 B-Key 3042 / 3052 / 1 x M.2 E-Key 2230 / 3030 for WIFI 6 / 1 x Mini PCIe Half Size for WIFI ( BOM Optional )
SIM
4x Micro SIM
Ethernet
GbE Ethernet
5x RJ45
1x combo design RJ45/SFP
Storage
SATA
1 x 2.5”HDD
mSATA
1 x m SATA optional
eMMC
1 x 16GB e MMC,
M.2
1 x M.2 (2242/2280 )
I/O
USB
1x USB2.0
Console
1x RJ45 console port
HDMI
1 x HDMI
Power Supply
Watt
40 ~ 60 W
Mechanical and Environment
Form Factor
Desktop
LED
-
Dimension (W x D x H)
-
Operating Temperature
0 ~ 40°C ( 32 ~ 104°F )
Storage Temperature
-40 ~ 85°C (-40 ~ 185°F)
Humidity
10 ~ 85% relative humidity, non-operating,
non-condensing
Weight
-
Certification
CE/FCC
