Edge Computing Server

AEWIN Technologies Co., Ltd.

SCB-1935

product_icon1
product_icon2
product_icon3
product_icon4
product_icon5

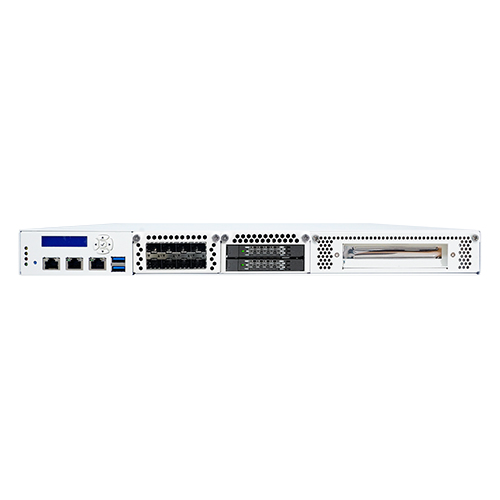

1U Rack-mount Edge Computing Server with single 2nd Gen AMD EPYC (Rome) Series Processor, support DDR4 memory up to 3200MHz, 2x PCIe x8 slots for Expansion Module / 4x NVMe, 2x half-height PCIe x8 (for 2x T4) or 1x full-height PCIe x16 front-access expansion slots, 2x USB3.0, 2x 1GbE, 1x Console, 1x m-SATA, 2x M.2 2280/22110, Redundant PSU

Overview
Specifications
Download
Options
Key features
  • Support 2nd Gen AMD® EPYC™ 7002 (Rome) processors
  • 8-channel DDR4 3200MHz memory
  • 2x PCIe x8 for Network Expansion Module, plus 2x PCIe x8 or 1x PCIe x16 for GPU or FPGA
Status : available

The SCB-1935 is a 1U Rack-Mount high-performance networking system. Supporting a single 2nd Gen AMD® EPYC 7000 Series Processor and GPU/FPGA accelerators. AMD’s new “Zen” CPU core delivers breakthrough computing performance. CPU cores up to 64 cores and 128 PCIe lanes.

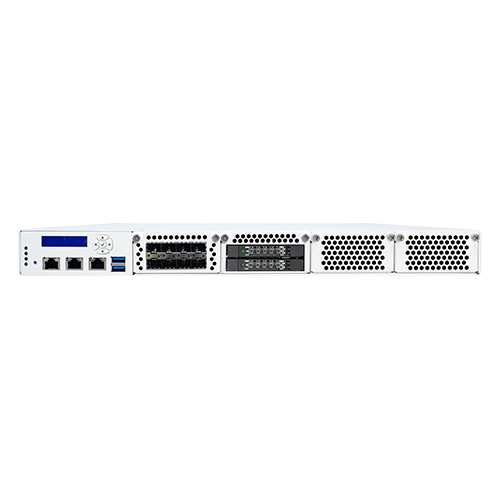

The SCB-1935 supports eight channels DDR4 RDIMM up to 3200MHz. In addition, it support up to 2x NVIDIA T4 accelerators to enable AI inference workloads, or supporting full height cards with 1x PCIe x16 configuration. The SCB-1935 include two management Ethernet port (one for management, another for option IPMI function), a console port, two USB 3.0 ports, a Graph LCD module with keypad (5 key), LEDs for power/ HDD/ 2 x GPIO. In addition, the SCB-1935 also supports one 3.5” or two 2.5” SATA HDDs/SSDs, onboard one m-SATA and two M.2 2280/22110 slots for basic network storage application.

Specifications
Processor System
CPU
Support 2nd Gen AMD® EPYC™ 7002 (Rome) processors, LGA4094
BIOS
AMI® UEFI BIOS
Memory
Technology
Total 8 DIMMs (Eight channel)ECC & Registered:DDR4 3200MHz memory,
up to 64GB per DIMM
Capacity
RDIMM/LRDIMM:up to 512GB
Expansion
Onboard Expansion Slots
1x SO-DIMM slot for IPMI card with VGA support
2x PCIe x8 for Network Expansion Module
2x half-height PCIe x8 (for 2x T4) or 1x full-height PCIe x16
2x M.2 socket by PCIe Gen3 x4
GbE Ethernet
2x 1GbE RJ45 ports
I/O
USB
2x external USB 3.0 port
1x internal USB 2.0 (5x2 pin header)
supports USB DOM
Serial
1x RJ45 Console port (COM1)
1x internal 5x2 pin header (COM2)
Power Supply
Watt
1U Redundant 500W ATX Power Supply
Storage
SATA
Support 1x 3.5” or 2x 2.5” SATA HDD or solid state drives
1x mSATA socket
Mechanical and Environment
Form Factor
1U rack-mount
LED
1x Power LED (Green)
1x HDD LED (Red)
2x Status LED (Green/Yellow via programmable GPIO)
Dimension (W x D x H)
440mm (W) x 600mm (D) x 44mm (H)
(17.3”W x 23.6”D x 1.73”H)
Operating Temperature
Operating: -5 ~ 50°C ( 23 ~ 122°F )
Storage Temperature
-20 ~ 75°C (-4 ~ 167°F)
Humidity
5 ~ 95% relative humidity, non-operating,
non-condensing
Weight
12 kg
Certification
CE/FCC
Download
Datasheet
2019-09-03
1
Windows10
Optional
Optional
R384B
Expansion module with 8 SFP GbE ports, Intel i350-AM4
R385B
Expansion module with 8 RJ45 GbE ports, two pairs Gen 3 bypass, Intel I350-AM4
R386A
Expansion module with 4 SFP+ 10 GbE ports, Intel XL710-BM1 w/o re-driver
R387A
Expansion module with 2 QSFP+ 40 GbE ports, Intel XL710-BM2 w/o re-driver

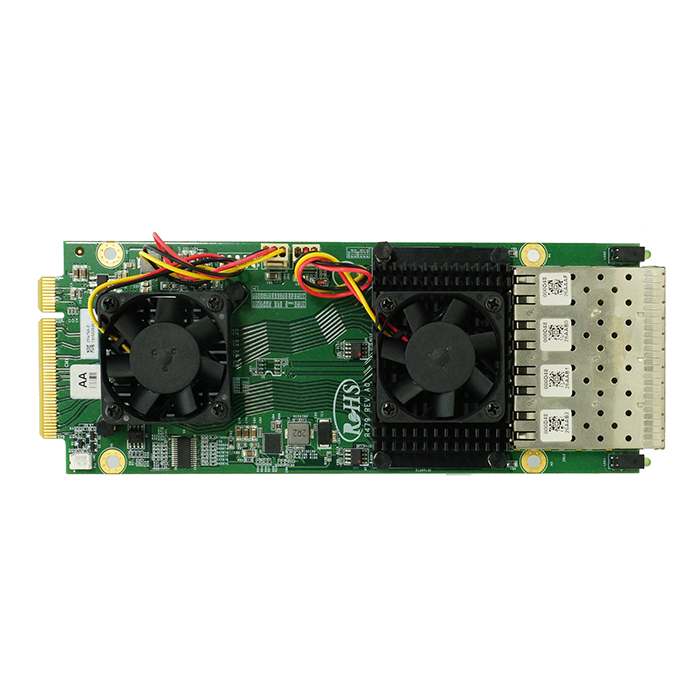

R479A
Expansion module with 4 SFP+ 10G ports, Intel 82599ES
R492A
IPMI Card with VGA for SCB-1925, ASPEED AST2500
R492B
VGA Card for SCB-1925, ASPEED AST2510
R509A
Expansion module with 2 ZSFP+ 25GbE ports, Intel XXV710
